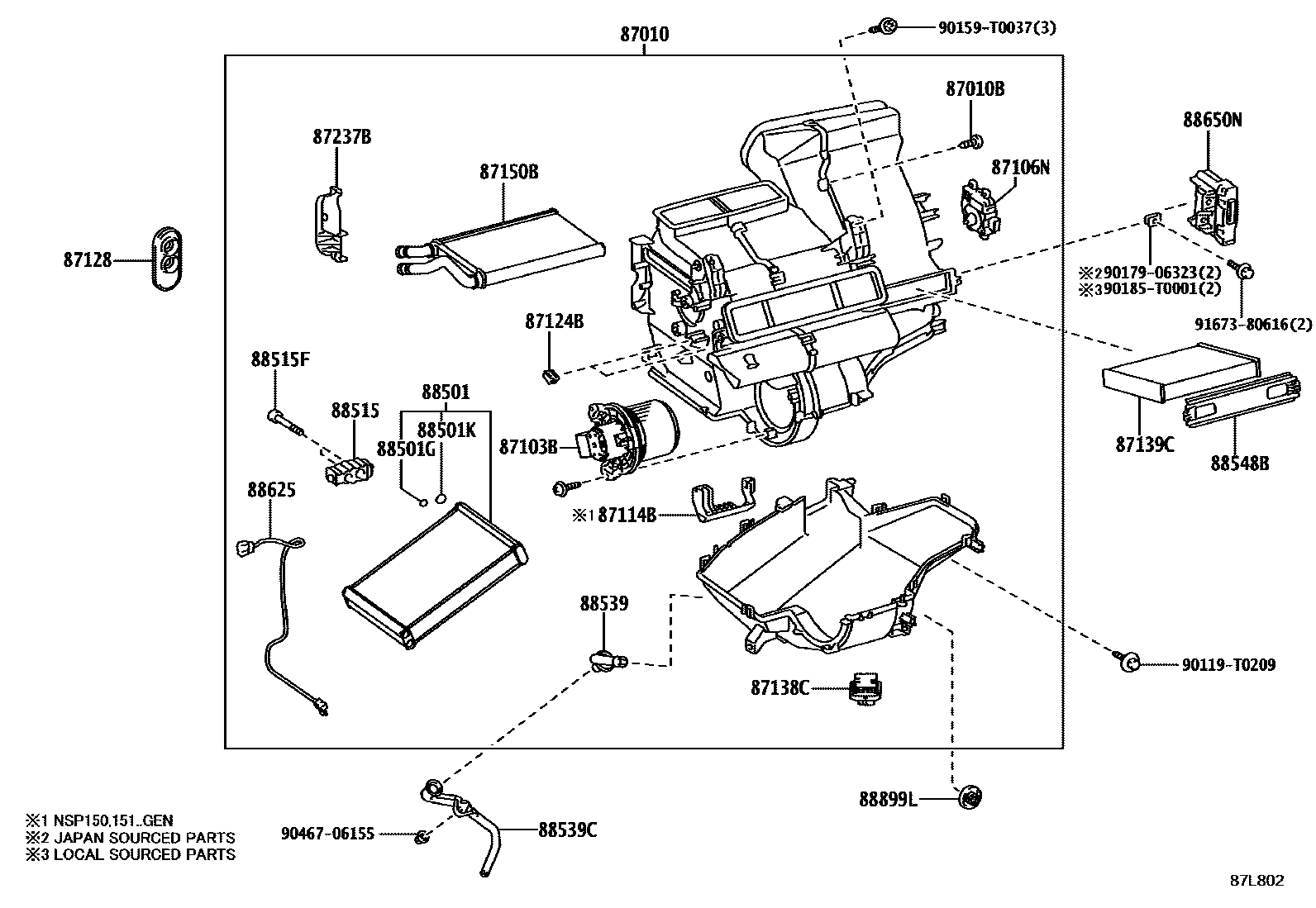

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1AUTO COOLER OR AUTO *BV 0004 1MANUAL COOLER OR MANUAL *BV 0005 1AUTO BOOST VENTILATOR 0006 1MANUAL BOOST VENTILATOR 0007 1AUTO AIR CONDITIONER 0008 1MANUAL AIR CONDITIONER

87010UNIT ASSY, AIR CONDITIONER

main87010-0DD50iNSP150..PKN202407

main87010-0DD60iNSP151..PKN202407

main87010-0DK50iNSP151..G..MA202305

main87010-0DK60iNSP150,151..GEN202303

main87010-0DM20iNSP151..R..VN202304

main87010-0DM30iNSP151..G..VN202303

main87010-0DM40iNSP150..GCC202303

main87010-0DM80iNSP152202303

main87010-0DQ60iNSP151..R..MA202305

87010BSCREW(FOR AIR CONDITIONER UNIT)

main90068-00042iNSP150,151..GEN202303

ECO PACKAGE

main90099-00968iNSP151..R..MA202305

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D280iNSP152202303

main87103-0D290iNSP150,151..LHD202303

main87103-0D310iNSP151..MA202305

main87103-0D420iNSP150,151..PKN202407

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-0D150iNSP152202303

main87106-0D160iNSP151..G..VN202303

main87106-0D380iNSP150,151..LHD..(D,R)202303

main87106-0D540iNSP151..G..MA202305

main87106-0D550iNSP151..R..MA202305

main87106-0D580iNSP151..PKN202407

main87106-0D590iNSP150..PKN202407

87114BCOVER, HEATER

main87114-0D090iNSP150,151..GEN202303

87124BCLAMP, HEATER

main87124-0D160iNSP152202303

ECO PACKAGE

main87124-0D170iNSP151..R..MA202305

main87124-0D650iNSP150..PKN202407

87128GROMMET, HEATER

main87128-0D091iNSP150,151..LHD202303

main87128-0D100iNSP152202303

main87128-0D110iNSP151..MA202305

main87128-0D170iNSP150,151..PKN202407

87138CRESISTOR, BLOWER

main87138-0D160iNSP150..GCC202303

main87138-0D340iNSP151..R..MA202305

main87138-0D380iNSP150..PKN202407

main87138-0K090iNSP150,151..(D,R)..(GEN,VN)202303

sub87138-0K290

87139CFILTER, CLEAN AIR

main87139-02130iNSP150,151..GCC,PKN202303

POLLEN FILTER,OE PART

main87139-06080iNSP15#..GEN,TH,VN202303

STANDARD

main87139-0D050iNSP151..MA202305

STANDARD

main87139-50100iNSP15#202303

POLLEN DEODORANT

87150BRADIATOR ASSY, HEATER

main87150-0D140iNSP150,151..LHD202303

main87150-0D250iNSP150,151..PKN202407

87237BCOVER, HEATER PIPING

main87237-0D050iNSP150,151..LHD202303

main87237-0D170iNSP150,151..PKN202407

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D370iNSP150,151..GEN,VN202303

main88501-0D380iNSP150..GCC202303

main88501-0D530iNSP151..MA202305

main88501-0D570iNSP152202303

main88501-0D580iNSP150,151..PKN202407

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14044iNSP15#..GCC,GEN,TH,VN202303

ID=10.2,OD=15.0

main90099-14121iNSP151..MA202305

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90068-14043iNSP15#..GCC,GEN,TH,VN202303

ID=13.4,OD=18.2

main90099-14120iNSP151..MA202305

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-0D570iNSP15#..GCC,GEN,TH,VN202303

main88515-0D610iNSP151..MA202305

main88515-0D640iNSP150,151..PKN202407

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04057iNSP15#..GCC,GEN,TH,VN202303

main90099-04630iNSP151..MA202305

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D290iNSP152202303

main88539-0D300iNSP150,151..LHD202303

main88539-0D310iNSP151..MA202305

main88539-0D580iNSP150,151..PKN202407

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-0D340iNSP152202303

main88539-0D350iNSP150,151..LHD202303

main88539-0D360iNSP151..MA202305

main88539-0D490iNSP150,151..PKN202407

88548BCASE, AIR FILTER

main88548-0D160iNSP15#..GCC,GEN,TH,VN202303

main88548-0D180iNSP151..MA202305

main88548-0D270iNSP150,151..PKN202407

88625THERMISTOR, COOLER, NO.1

main88620-0D050iNSP150,151..LHD..(D,R)202303

ECO PACKAGE

main88620-0D070iNSP151..R..MA202305

main88620-0D140iNSP151..G..MA202305

main88620-0D160iNSP150..PKN202407

main88620-0D190iNSP152202303

main88620-0D200iNSP151..G..VN202303

main88620-0D380iNSP151..PKN202407

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0D770iNSP151..R..MA202305

main88650-0D780iNSP150;NSP151..LHD..(D,R)202303

main88650-0D800iNSP151..G..VN202303

main88650-0D810iNSP151..PKN202407

main88650-0D820iNSP151..G..MA202305

main88650-0DB10iNSP152202303

88899LPARTS, COOLING UNIT

main88899-52160iNSP15#202303

90119T0209

main90119-T0209

90159T0037

main90159-T0037

9017906323

main90179-06323

90185T0001

main90185-T0001

9046706155

main90467-06155

9167380616

main91673-80616

28 parts on this diagram · 8 diagrams in section
