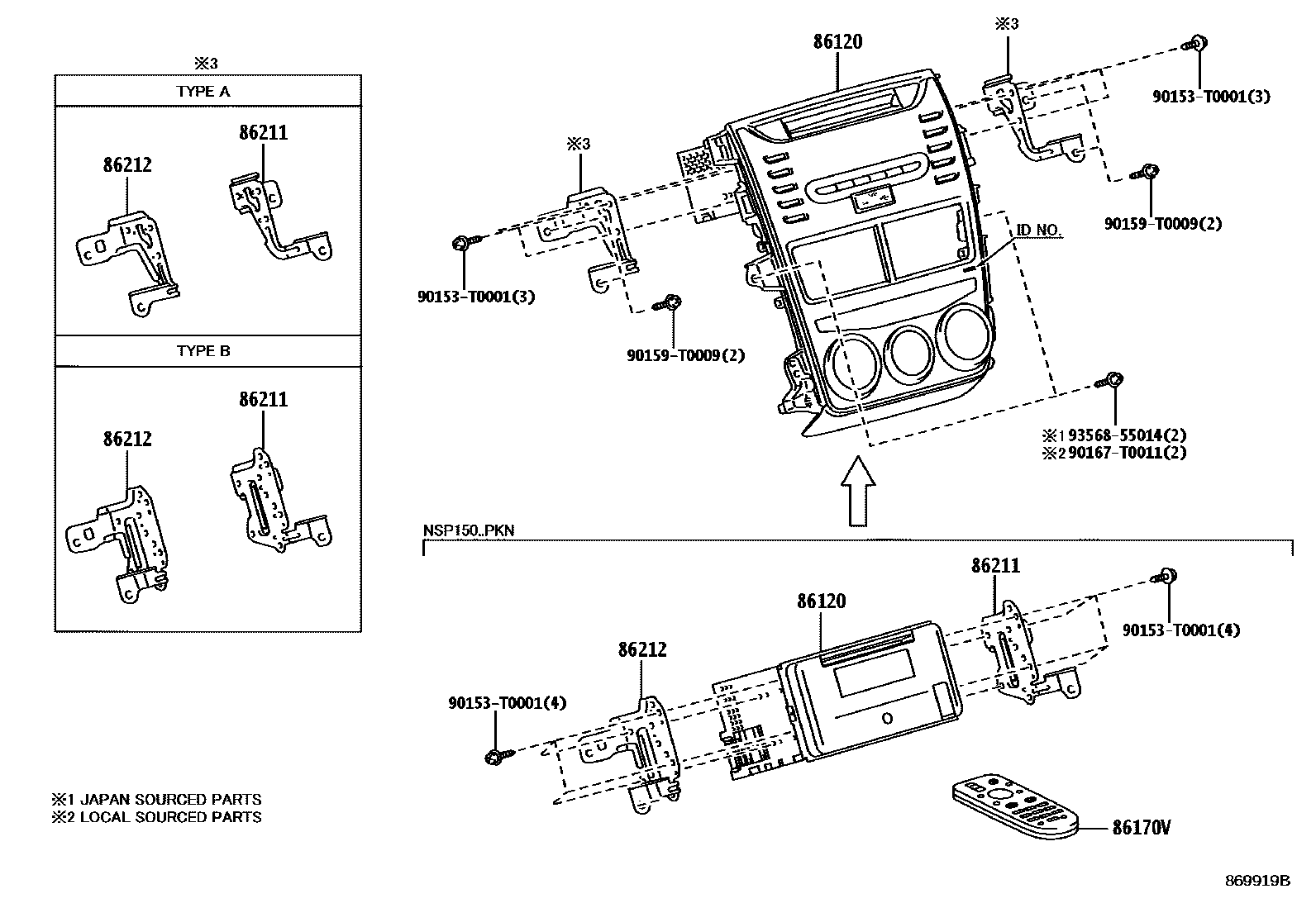

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER 0002 1CONDENSER & MICROPHONE

86120RECEIVER ASSY, RADIO

main86120-0DC30iNSP150..GCC202303

PANASONIC,ID=510263,AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

main86120-YY250iNSP150..PKN202407

AUDIO-WITH

86170VCONTROLLER ASSY, REMOTE

main86170-YY020iNSP150..PKN202407

AUDIO-WITH

86211BRACKET, RADIO, NO.1

main86211-0D260iNSP150..GCC202303

AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,TYPE A:REFER ILLUST.

main86211-0D370iNSP150,151..GCC,GEN,MA,VN202303

TYPE B:REFER ILLUST.

main86211-0D370iNSP150,151..GCC,GEN,MA,VN202303

ECO PACKAGE,TYPE B:REFER ILLUST.

main86211-0D370iNSP150,151..GCC,GEN,MA,VN202303

YP2 PACKAGE,TYPE B:REFER ILLUST.

main86211-0D440iNSP150,151..PKN202407

TYPE B:REFER ILLUST.

main86211-0D440iNSP150,151..PKN202407

AUDIO-*DA & *BT & USB & 6SPEAKER,TYPE B:REFER ILLUST.

main86211-0D440iNSP150,151..PKN202407

AUDIO-*DA & *BT,TYPE B:REFER ILLUST.

86212BRACKET, RADIO, NO.2

main86212-0D250iNSP150..GCC202303

AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,TYPE A:REFER ILLUST.

main86212-0D350iNSP150,151..GCC,GEN,MA,VN202303

TYPE B:REFER ILLUST.

main86212-0D350iNSP150,151..GCC,GEN,MA,VN202303

ECO PACKAGE,TYPE B:REFER ILLUST.

main86212-0D350iNSP150,151..GCC,GEN,MA,VN202303

YP2 PACKAGE,TYPE B:REFER ILLUST.

main86212-0D420iNSP150,151..PKN202407

TYPE B:REFER ILLUST.

main86212-0D420iNSP150,151..PKN202407

AUDIO-*DA & *BT & USB & 6SPEAKER,TYPE B:REFER ILLUST.

main86212-0D420iNSP150,151..PKN202407

AUDIO-*DA & *BT,TYPE B:REFER ILLUST.

90153T0001

main90153-T0001

90159T0009

main90159-T0009

90167T0011

main90167-T0011

9356855014

main93568-55014

8 parts on this diagram · 2 diagrams in section
