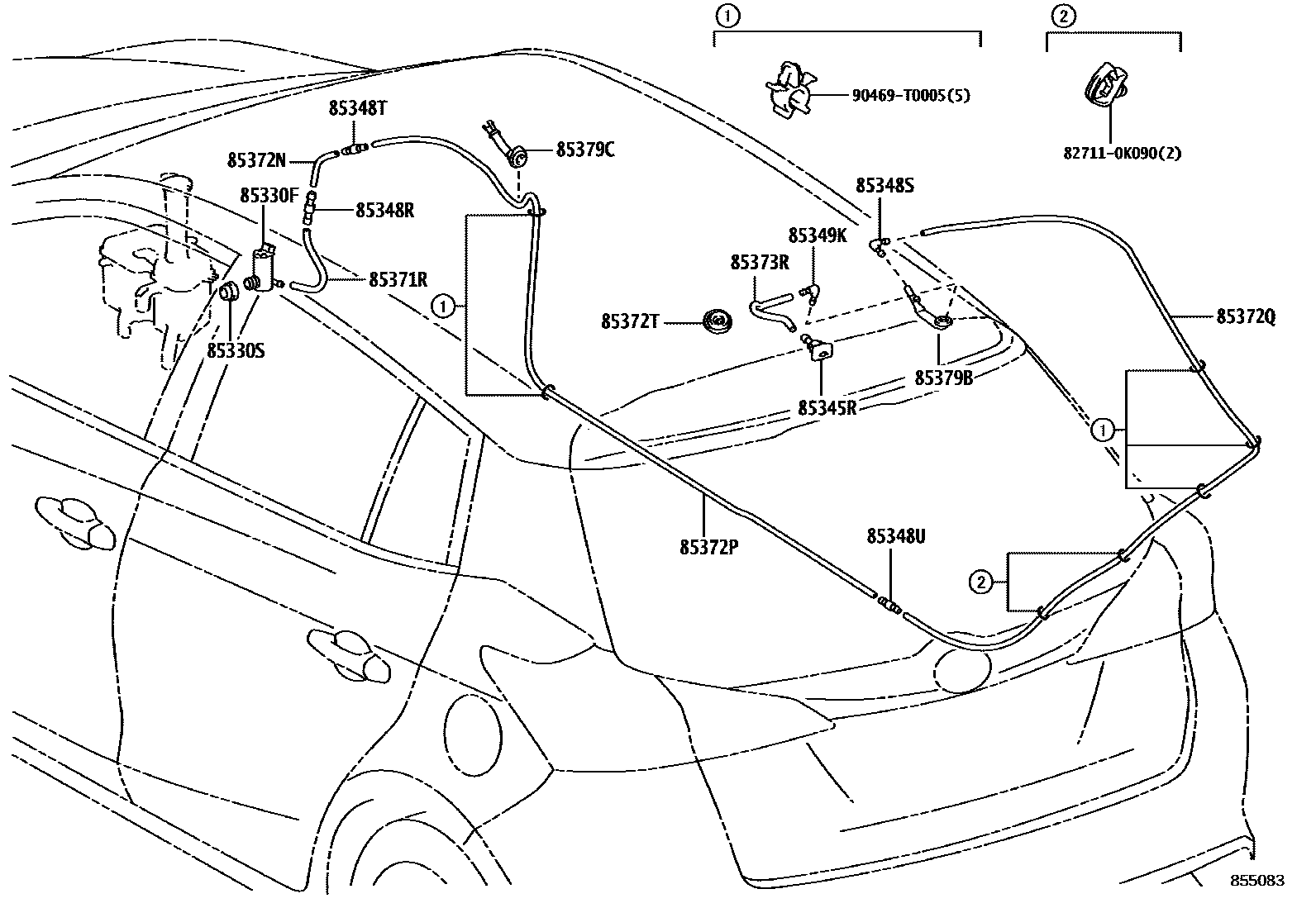

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=160
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=50
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=2384
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=2176
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=250)
85379BGROMMET, WASHER, A
85379CGROMMET, REAR WASHER HOSE NO.1
827110K090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-0K090
90469T0005
main90469-T0005
18 parts on this diagram · 1 diagram in section
