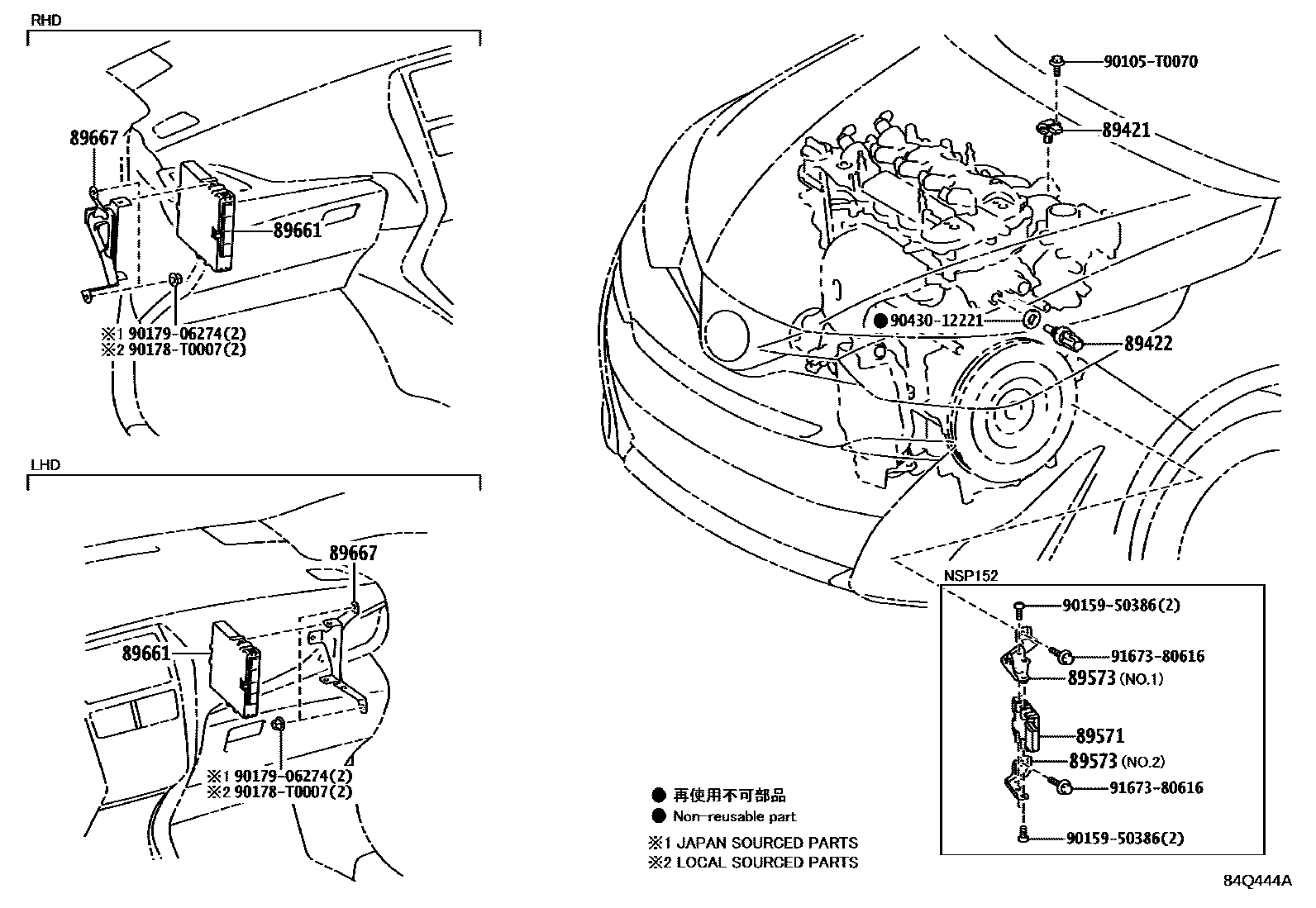

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iNSP152202303

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNSP15#202303

89571COMPUTER, FUEL PUMP CONTROL

main89571-34070iNSP152202303

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-52030iNSP152202303

NO.1:REFER ILLUST.

main89573-52040iNSP152202303

NO.2:REFER ILLUST.

89661COMPUTER, ENGINE CONTROL

main89661-0DW90iNSP150..5F..PKN202407

DENSO TEN

main89661-0DZ40iNSP151..CVT..PKN202407

FUJITSU TEN

main89661-0U280iNSP151..5F..PKN202407

FUJITSU TEN

main89661-0U350iNSP150..CVT..PKN202407

FUJITSU TEN

main89661-0U360iNSP150..GCC202303

FUJITSU TEN

main89661-0UC20iNSP151..MA202305

DENSO

main89661-0UC30iNSP152202303

DENSO TEN

main89661-0UE80iNSP151..5F..VN202304

DENSO TEN

main89661-0UG20iNSP150..5F..GEN202303

DENSO TEN

main89661-0UG30iNSP150..CVT..GEN202303

DENSO TEN

main89661-0UG80iNSP151..5F..GEN202303

DENSO TEN

main89661-0UG90iNSP151..LHD..CVT202303

DENSO TEN

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0D150iNSP150,151..LHD202303

main89667-0D340iNSP15#..RHD202303

90105T0070

main90105-T0070

9015950386

main90159-50386

90178T0007

main90178-T0007

9017906274

main90179-06274

9043012221

main90430-12221

9167380616

main91673-80616

12 parts on this diagram · 1 diagram in section
