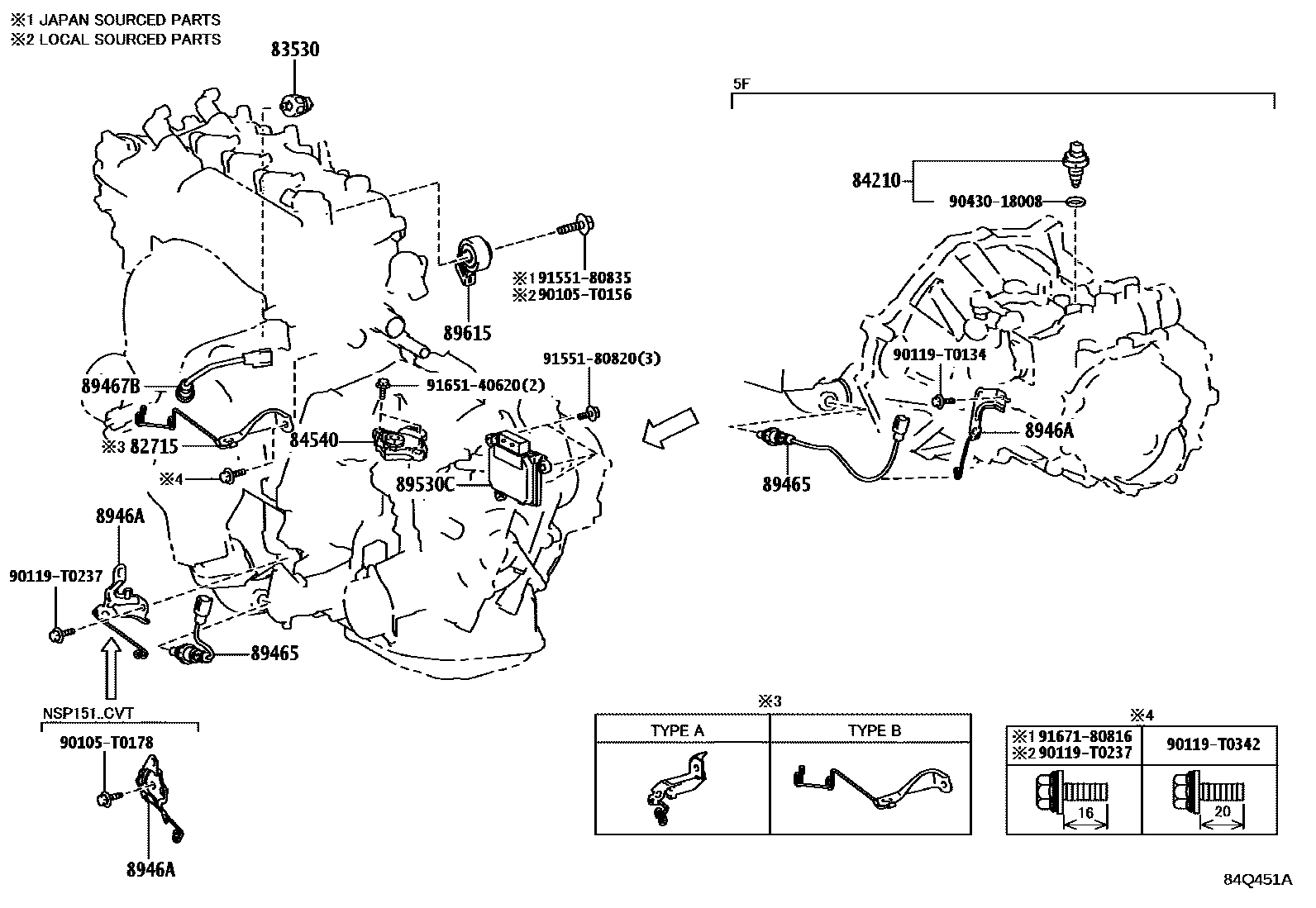

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1DOOR,ROOF,FLOOR & LUGGAGE 0011 1DOOR,ROOF,FLOOR & BACK DOOR

82715BRACKET,WIRING HARNESS CLAMP

main82715-5C360iNSP150,151202303

TYPE B:REFER ILLUST.

main8946A-52010iNSP152202303

TYPE A:REFER ILLUST.

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNSP15#202303

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNSP150,151..5F202303

84540SWITCH ASSY, NEUTRAL START

main84540-33010iNSP152202303

main84540-52070iNSP150,151..CVT202303

89465SENSOR, OXYGEN

main89465-52A00iNSP15#..CVT202303

main89465-52A10iNSP150,151..5F202303

89467BSENSOR, AIR FUEL RATIO

main89467-30050iNSP150,151202303

main89467-52290iNSP152202303

8946ABRACKET, EXHAUST SENSOR CLAMP

main82715-5C350iNSP150,151..5F202303

main8946A-52020iNSP150,152..CVT202303

main8946A-52080iNSP151..CVT202303

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-52560iNSP152202303

89615SENSOR, KNOCK CONTROL

main89615-20090iNSP15#202303

90105T0156

main90105-T0156

90105T0178

main90105-T0178

90119T0134

main90119-T0134

90119T0237

main90119-T0237

90119T0342

main90119-T0342

9043018008

main90430-18008

9155180820

main91551-80820

9155180835

main91551-80835

9165140620

main91651-40620

9167180816

main91671-80816

19 parts on this diagram · 11 diagrams in section
