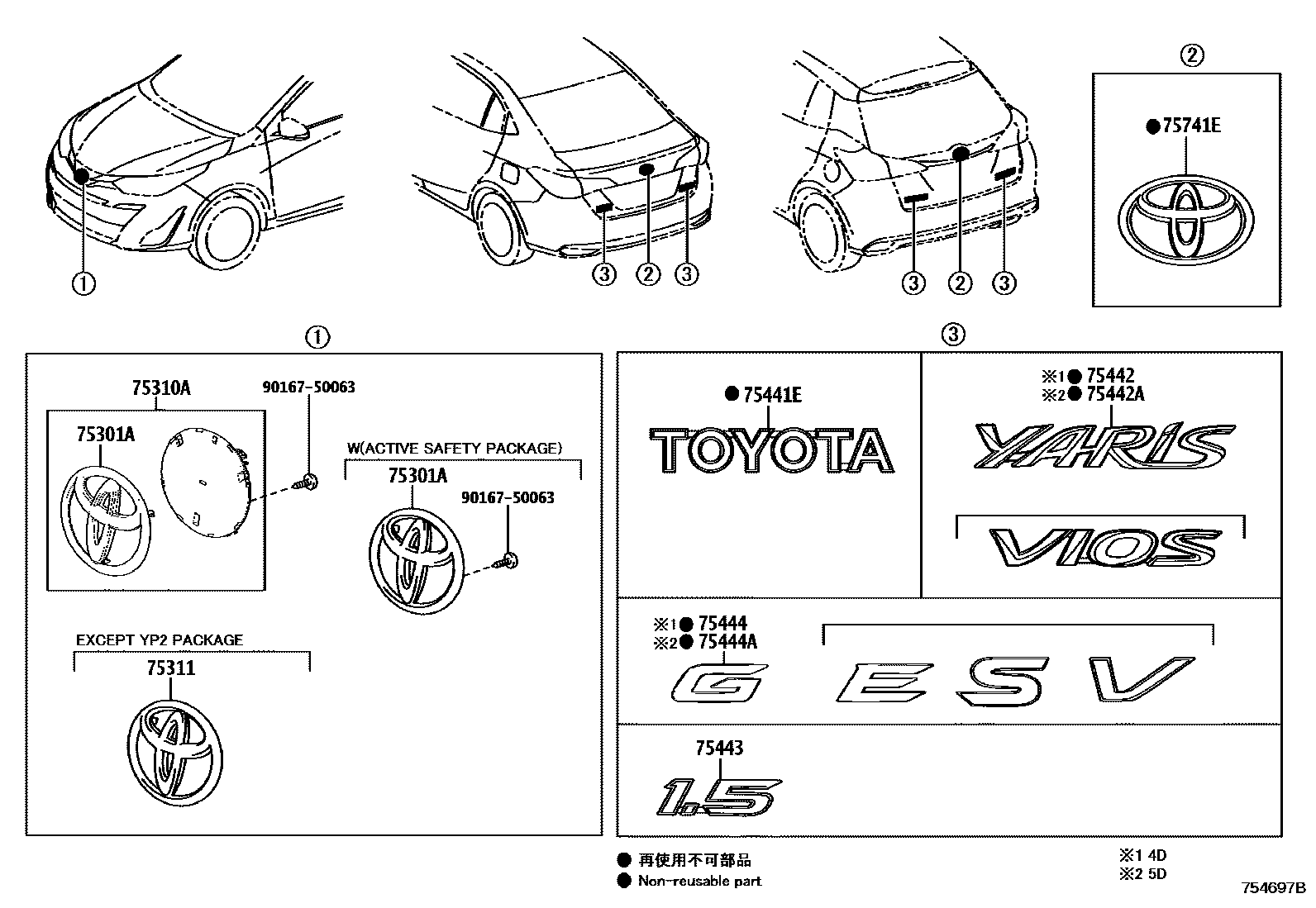

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1SMC PACKAGE

75301AEMBLEM SUB-ASSY, FRONT BUMPER

75310AEMBLEM ASSY, RADIATOR GRILLE

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-T2008iNSP15#..GCC,GEN,PKN,TH,VN202303

YP2 PACKAGE

main90975-T2009iNSP151..MA202305

YP1 PACKAGE

75441EPLATE, BACK DOOR NAME, NO.1

main75447-0D240iNSP150,151..GCC,GEN202303

TOYOTA

main75447-0D270iNSP150,151..PKN202407

TOYOTA

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-0D340iNSP150,151..PKN202407

YARIS

main75442-0D550iNSP151..4D..VN202304

VIOS

75442APLATE, BACK DOOR NAME, NO.2

main75442-0D470iNSP151,152..5D..(MA,TH,VN)202303

YARIS

main75442-0D520iNSP150,151..GCC,GEN202303

YARIS

75443PLATE, BACK DOOR NAME, NO.3

main75471-0D310iNSP151..PKN202407

1.5

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-0DB30iNSP150..G202407

G

main75444-0DB40iNSP150..D202407

S

main75444-0DB50iNSP151..PKN202407

V,SMC PACKAGE

main75444-0DB50iNSP151..PKN202407

V

main75444-0DB80iNSP151..R..VN202304

E

main75444-0DB90iNSP151..4D..G..VN202304

G

75444APLATE, BACK DOOR NAME, NO.4

main75444-0D690iNSP150,151..5D..R202303

E

main75444-0D700iNSP151..5D..G202303

G

75741EEMBLEM, SYMBOL

main75431-02090iNSP15#202303

9016750063

main90167-50063

11 parts on this diagram · 2 diagrams in section
