BACK DOOR PANEL & GLASS

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0D080iNSP15#..5D..(GCC,GEN,TH,VN)202303

main64818-0D130iNSP151..MA202305

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0D070iNSP15#..5D..(GCC,GEN,TH,VN)202303

main64819-0D120iNSP151..MA202305

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D480iNSP150..GCC202303

PANAMA&AUDIO-RADIOLESS 4SPEAKER

main67005-0D480iNSP150..GCC202303

CHILE SPEC&AUDIO-RADIOLESS 4SPEAKER

main67005-0D480iNSP150..GCC202303

ECUADOR&AUDIO-RADIOLESS 4SPEAKER

main67005-0D770iNSP151,152..RHD..5D202303

ECO PACKAGE&YP2 PACKAGE

main67005-0D780iNSP150,151..5D..(GEN,VN)202303

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09133iNSP15#..5D202303

67751BOARD, BACK DOOR TRIM

main67750-0D240iNSP15#..5D202303

67847ECOVER, BACK DOOR SERVICE HOLE, RH

main67847-0D010iNSP15#..5D202303

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-0D010iNSP15#..5D202303

67881AWEATHERSTRIP, BACK DOOR

main67881-0D170iNSP15#..5D..(GCC,GEN,TH,VN)202303

main67881-0D250iNSP151..MA202305

67891ASEAL, BACK DOOR

main67891-0D030iNSP151..MA202305

main67891-0D050iNSP15#..5D..(GEN,TH,VN)202303

68131GLASS, BACK DOOR

main68105-0D905iNSP150..GCC202303

main68105-0D906iNSP15#..5D..(GEN,TH,VN)202303

main68105-0D907iNSP151..MA202305

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main64813-0D380iNSP15#..5D202303

68695PAD, BACK DOOR WINDOW FRAME

main75955-0D070iNSP15#..5D202303

69285CHANDLE, PULL

main69285-0D040iNSP15#..5D202303

75129CCUSHION, REAR LICENCE PLATE

main75129-0D030iNSP15#..5D202303

75575JMOULDING, BACK WINDOW, OUTSIDE LOWER RH

main75575-0D010iNSP15#..5D..(GCC,GEN,TH,VN)202303

main75575-0D060iNSP151..MA202305

90333T0004

main90333-T0004

90467T0021

main90467-T0021

9095006125

main90950-06125

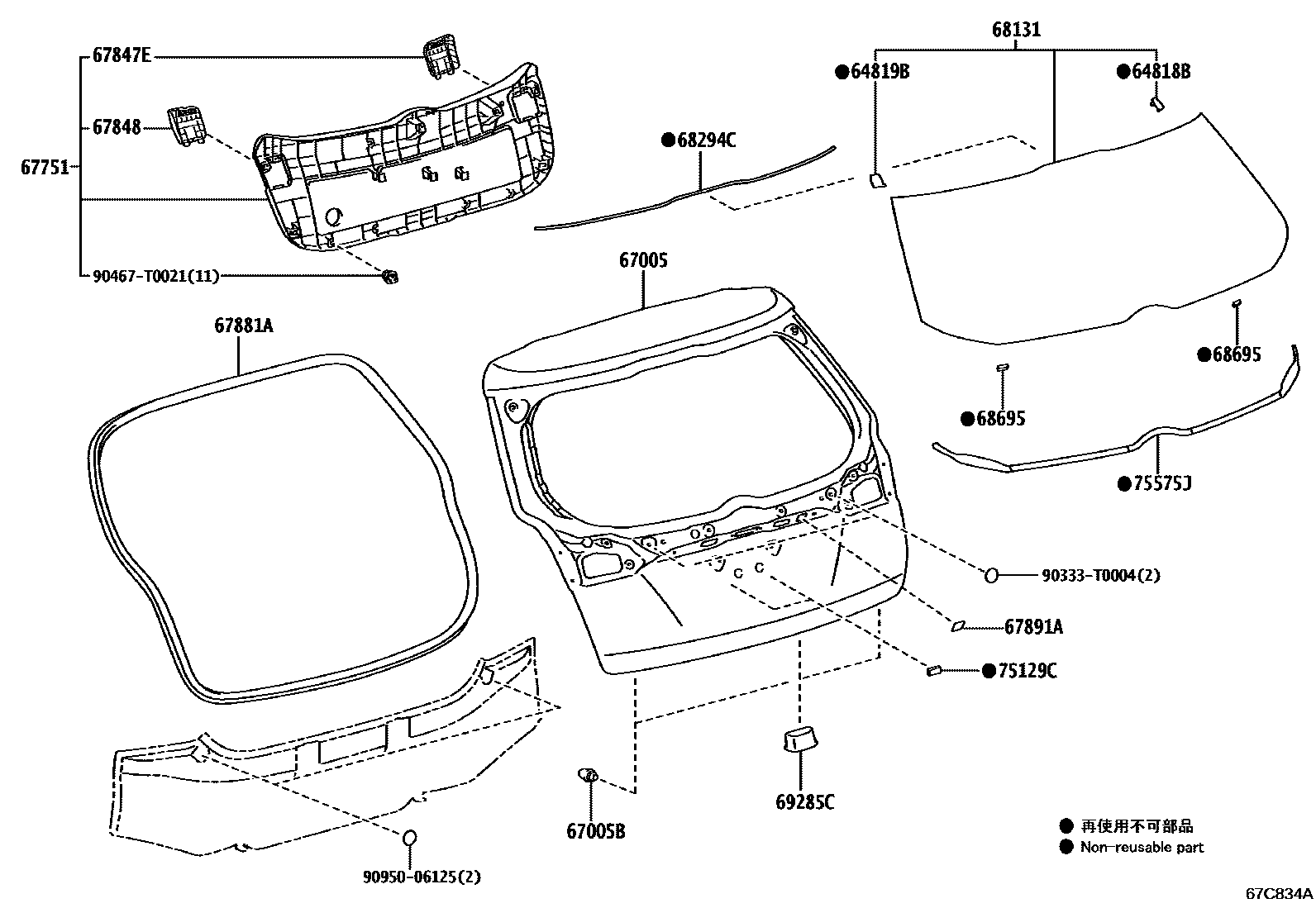

18 parts on this diagram · 1 diagram in section
