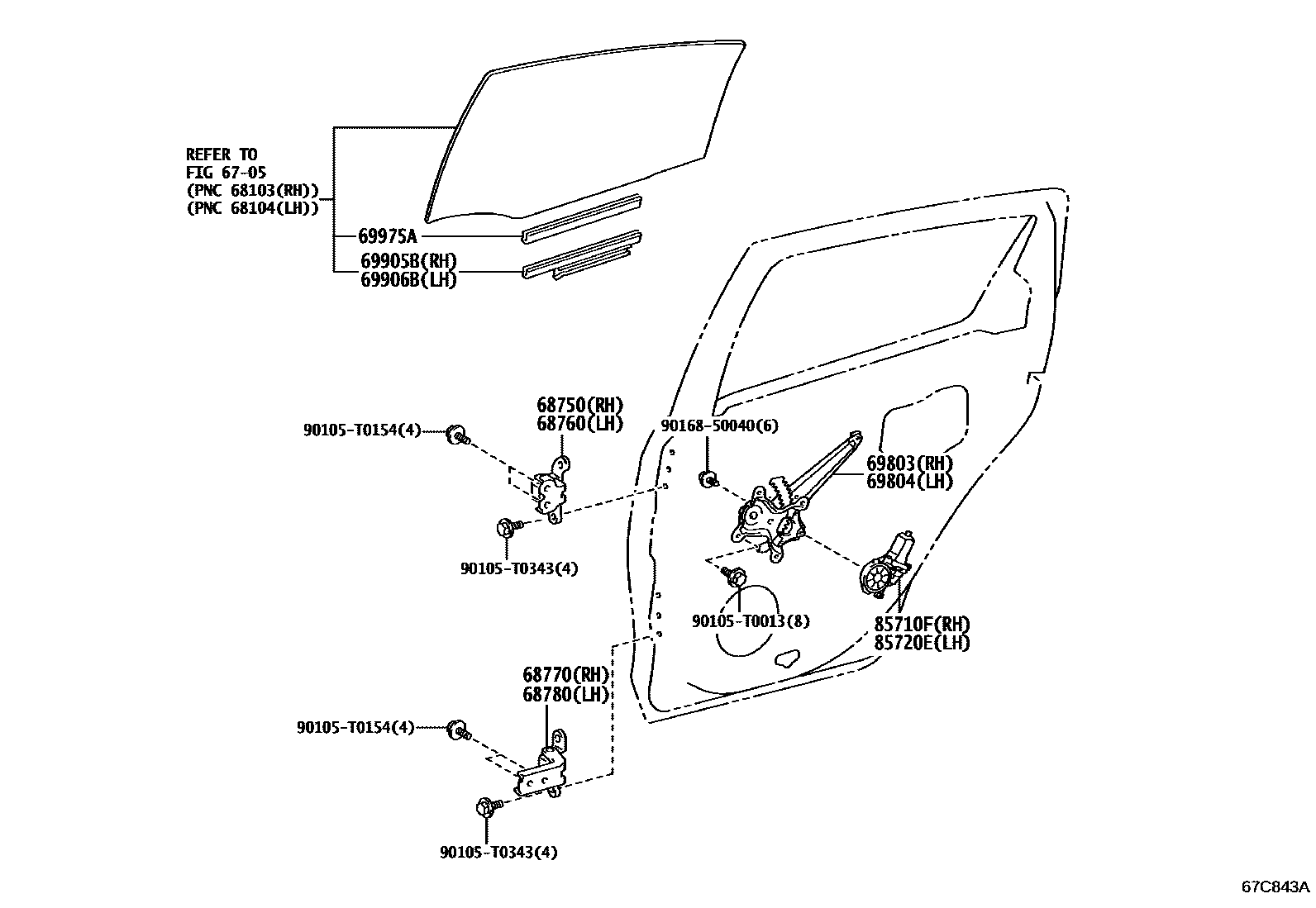

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D030iNSP15#..GCC,GEN,MA,TH,VN202303

main68750-20121iNSP150,151..PKN202407

sub68750-20122

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D030iNSP15#..GCC,GEN,MA,TH,VN202303

main68760-20121iNSP150,151..PKN202407

sub68760-20122

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D030iNSP15#..GCC,GEN,MA,TH,VN202303

main68770-52031iNSP150,151..PKN202407

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D030iNSP15#..GCC,GEN,MA,TH,VN202303

main68780-52031iNSP150,151..PKN202407

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0D280iNSP150,151..PKN202407

main69803-0D310iNSP15#..GCC,GEN,MA,TH,VN202303

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0D280iNSP150,151..PKN202407

main69804-0D310iNSP15#..GCC,GEN,MA,TH,VN202303

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0D130iNSP15#202303

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0D130iNSP15#202303

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D130×2iNSP15#202303

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0D580iNSP15#..GCC,GEN,MA,TH,VN202303

main85720-52290iNSP150,151..PKN202407

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0D580iNSP15#..GCC,GEN,MA,TH,VN202303

main85710-52320iNSP150,151..PKN202407

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90105T0343

main90105-T0343

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
