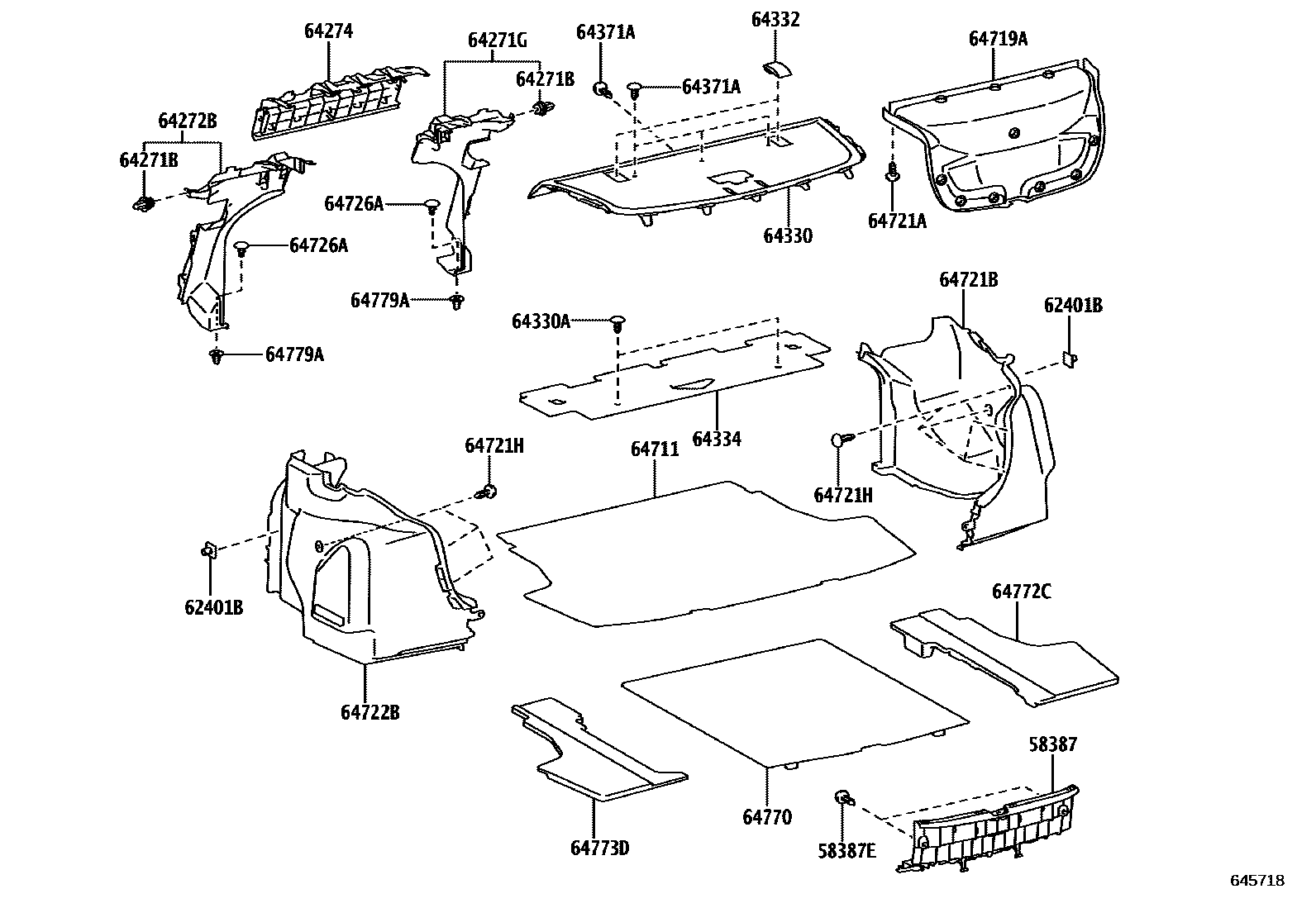

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK,TRIM2#
BLACK,TRIM0#,2#
62401BFASTENER, HOOK
64271BCLIP(FOR ROOM PARTITION BOARD)
64271GBOARD, ROOM PARTITION, RH
64272BBOARD, ROOM PARTITION, LH
64274PAD, ROOM PARTITION TRIM, NO.1
BLACK,TRIM0#,2#
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
SHELL,TRIM0#
SHELL,TRIM00
BLACK,TRIM2#
BLACK,TRIM00,2#
64332COVER, PACKAGE TRAY TRIM
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
64334PAD, PACKAGE TRAY TRIM SILENCER
64371ACLIP(FOR PACKAGE TRAY TRIM)
SHELL,TRIM00
SHELL,TRIM0#
BLACK,TRIM00,2#
BLACK,TRIM2#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK,TRIM2#
BLACK,TRIM0#,2#
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
64721HCLIP(LUGGAGE COMPARTMENT)
BLACK,TRIM0#,2#
BLACK,TRIM2#
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
64726ACLIP, LUGGAGE TRIM, REAR
64770COVER ASSY, SPARE WHEEL
64772CPAD, SPARE WHEEL COVER
64773DCOVER, SPARE WHEEL, NO.2
64779ASTOPPER, SPARE WHEEL COVER
23 parts on this diagram · 2 diagrams in section
