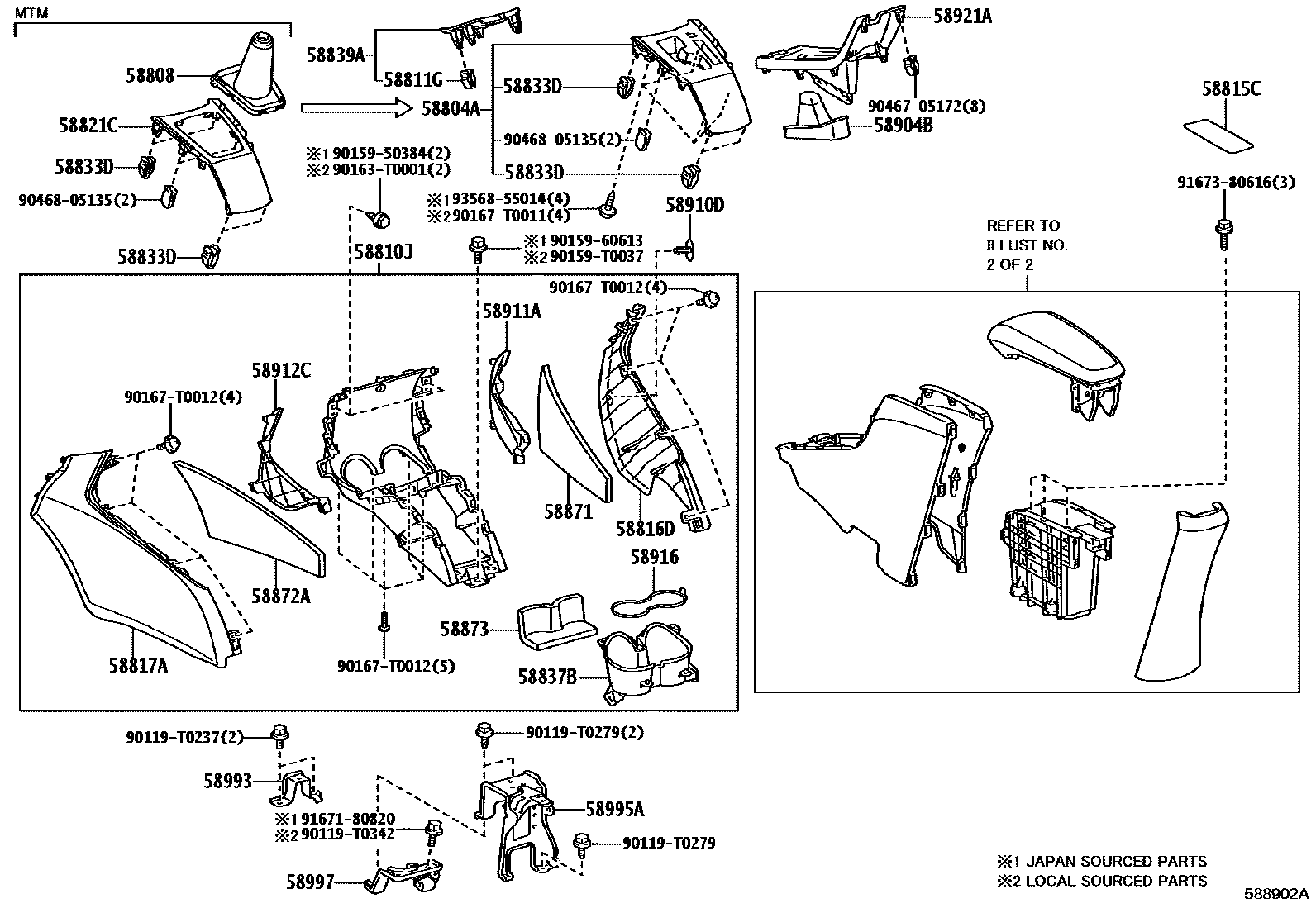

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0D300iNSP152202303

ECO PACKAGE&YP2 PACKAGE

main58804-0D300iNSP152202303

YP2 PACKAGE

main58804-0D340iNSP151..D202303

main58804-0D350iNSP150,151..LHD..5D..CVT..R202303

main58804-0D360iNSP151..CVT..VN202303

YP2 PACKAGE

main58804-0D360iNSP151..CVT..VN202303

E-SPORT PACKAGE(GRADE MARK(S))

main58804-0D710iNSP150..CVT..D202407

main58804-0D720iNSP151..CVT..PKN202407

YP2 PACKAGE

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0D310-C0iNSP150,151..5F..PKN202407

BLACK,TRIM0#,2#

main58808-0D640-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main58808-0D640-C0iNSP150,151..5F..GEN202303

BLACK,TRIM0#,2#

58810JBOX ASSY, CONSOLE

main58810-0D020-C0iNSP151..D202303

BLACK,TRIM0#,2#

main58810-0D110-C0iNSP152202303

BLACK,TRIM2#

main58810-0D120-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main58810-0D120-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT..(G,R)202303

BLACK,TRIM0#,2#

main58810-0D130-C0iNSP151..MA202305

BLACK,TRIM2#

main58810-0D210-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

58811GCLIP(CONSOL BOX)

main90467-05172iNSP15#202303

58815CCARPET, CONSOLE BOX

main58815-0D300iNSP15#..GCC,GEN,TH,VN202303

main58815-0D310iNSP151..MA202305

main58815-0D400iNSP150,151..PKN202407

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-0D030-C0iNSP152202303

BLACK,TRIM2#

main58816-0D050-C0iNSP151..MA202305

BLACK,TRIM2#

main58816-0D120-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

main58817-0D040-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM0#,2#

main58817-0D040-C0iNSP151..5F..VN202304

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58816-0D040-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM0#,2#

main58816-0D040-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main58817-0D030-C0iNSP152202303

BLACK,TRIM2#

main58817-0D050-C0iNSP151..MA202305

BLACK,TRIM2#

main58817-0D120-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

58821CPANEL, CONSOLE, UPPER

main58821-0D520iNSP150,151..5F..R202303

main58821-0D580iNSP151..MA202305

main58821-0D590iNSP150,151..5F..PKN202407

58833DCLIP(FOR CONSOLE COVER)

main90467-05172iNSP151,152;NSP150..G,R;NSP150..5F..D202303

58837BBOX, CONSOLE CUP HOLDER

main58837-0D100-C0iNSP152202303

BLACK,TRIM2#

main58837-0D110-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM0#,2#

main58837-0D110-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main58837-0D120-C0iNSP151..MA202305

BLACK,TRIM2#

main58837-0D180-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

58839ACOVER, CONSOLE BOX HOLE

main58839-0D030-C0iNSP152202303

BLACK,TRIM2#

main58839-0D040-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main58839-0D040-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM0#,2#

main58839-0D050-C0iNSP151..MA202305

BLACK,TRIM2#

main58839-0D130-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

58871CUSHION, CONSOLE BOX

main58871-0D080iNSP15#..(G,R)..(GCC,GEN,TH,VN)202303

main58871-0D100iNSP151..MA202305

58872ACUSHION, CONSOLE BOX, NO.2

main58872-0D030iNSP15#..(G,R)..(GCC,GEN,TH,VN)202303

main58872-0D050iNSP151..MA202305

58873CUSHION, CONSOLE BOX, NO.3

main58873-0D010iNSP15#..(G,R)..(GCC,GEN,TH,VN)202303

main58873-0D020iNSP151..MA202305

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-0D140-C0iNSP152;NSP151..5F..VN202303

BLACK,TRIM2#

main58904-0D140-C0iNSP152;NSP151..5F..VN202303

BLACK,TRIM0#,2#

main58904-0D150-C0iNSP151..MA202305

BLACK,TRIM2#

main58904-0D250-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

58910DCLIP(FOR CONSOLE BOX)

main90467-05164-C7iNSP152;NSP151..5F..VN202303

BLACK,TRIM0#,2#,(J)

sub90467-05164

main90467-05164-C7iNSP152;NSP151..5F..VN202303

BLACK,TRIM2#,(J)

sub90467-05164

main90467-05164-C7iNSP151..MA202305

BLACK,TRIM2#

sub90467-05164

main90467-T0004-C4iNSP150;NSP151..5F..(GEN,PKN);NSP151..CVT..(GEN,PKN,VN)202303

BLACK,TRIM0#,2#,(L)

main90467-T0004-C4iNSP152;NSP151..5F..VN202303

BLACK,TRIM2#,(L)

58911APANEL, BOX SIDE, NO.1

main58911-0D380-C0iNSP152202303

BLACK,TRIM2#

main58911-0D390-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main58911-0D390-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM0#,2#

main58911-0D400-C0iNSP151..MA202305

BLACK,TRIM2#

main58911-0D470-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

58912CPANEL, BOX SIDE, NO.2

main58912-0D020-C0iNSP152202303

BLACK,TRIM2#

main58912-0D030-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM0#,2#

main58912-0D030-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main58912-0D040-C0iNSP151..MA202305

BLACK,TRIM2#

main58912-0D110-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

58916MAT, BOX BOTTOM

main58916-0D120-C0iNSP151..5F..VN;NSP151,152..RHD..5D202303

BLACK,TRIM0#,2#

main58916-0D120-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM2#

main58916-0D220-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

58921APANEL, REAR CONSOLE, UPPER

main58921-0D020iNSP15#..GCC,GEN,TH,VN202303

main58921-0D030iNSP151..MA202305

main58921-0D140iNSP150,151..PKN202407

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-0D010iNSP151..5D..VN;NSP15#..GCC,GEN,MA,PKN,TH202303

main58993-0D060iNSP151..4D..VN202304

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0D150iNSP15#..5D202303

main58995-0D200iNSP151..4D..VN202304

main58995-0D220iNSP150,151..PKN202407

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-0D070iNSP15#202303

90119T0237

main90119-T0237

90119T0279

main90119-T0279

90119T0342

main90119-T0342

9015950384

main90159-50384

9015960613

main90159-60613

90159T0037

main90159-T0037

90163T0001

main90163-T0001

90167T0011

main90167-T0011

90167T0012

main90167-T0012

9046705172

main90467-05172

9046805135

main90468-05135

9167180820

main91671-80820

9167380616

main91673-80616

9356855014

main93568-55014

37 parts on this diagram · 4 diagrams in section
