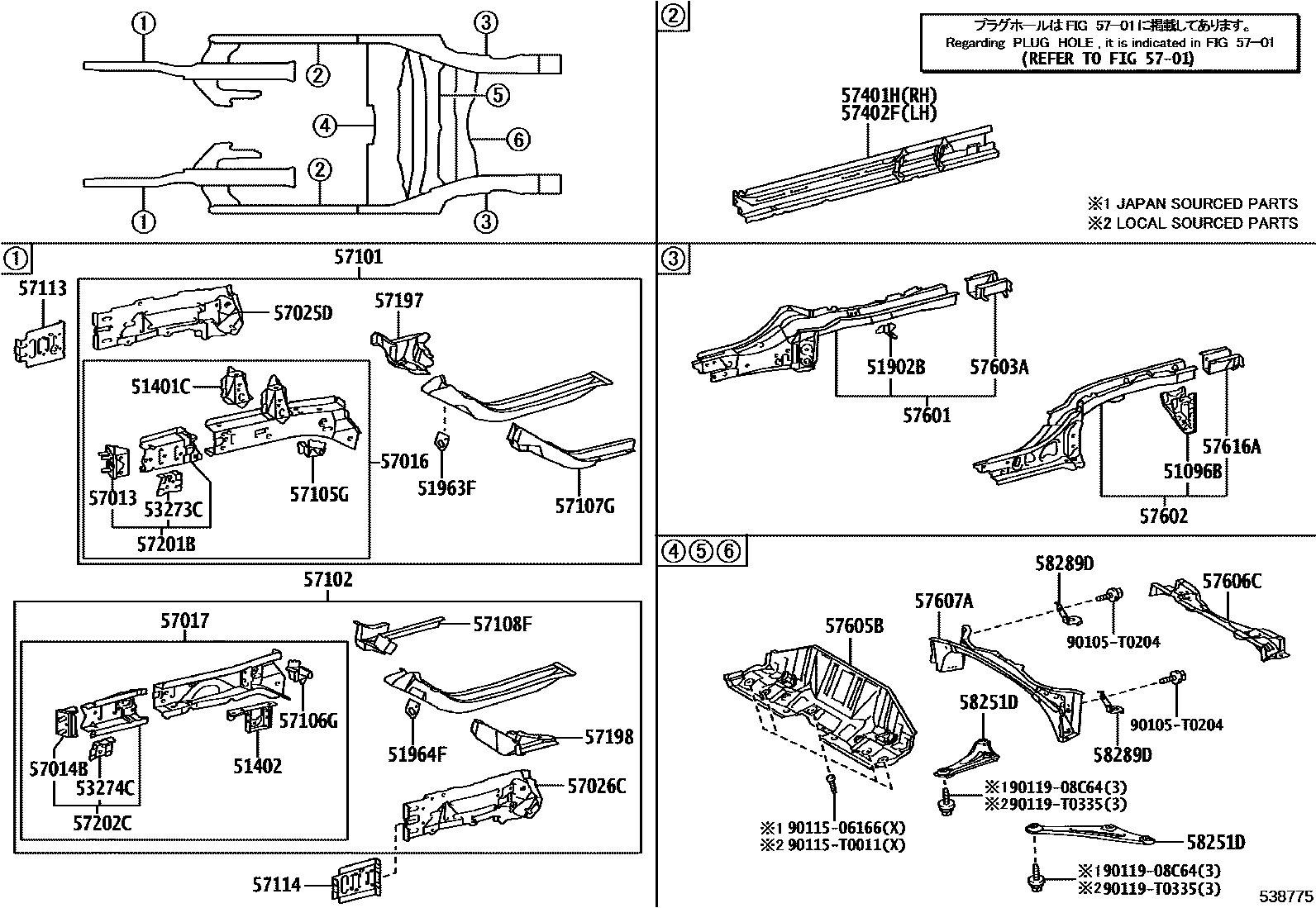

FLOOR SIDE MEMBER

0001 1 0002 1

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0D040iNSP15#..GCC,GEN,MA,TH,VN202303

main51096-0D100iNSP150,151..PKN202407

51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0D020iNSP15#..GCC,GEN,MA,TH,VN202303

main51401-0D070iNSP150,151..PKN202407

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0D020iNSP15#202303

51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2

main51902-0D020iNSP15#202303

51963FHOOK, TRANSPORT

main51963-0D030iNSP15#202303

51964FHOOK, TRANSPORT, LH

main51963-0D030iNSP15#202303

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-0D070iNSP15#202303

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0D040iNSP15#202303

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D061iNSP15#202303

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D051iNSP15#202303

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D110iNSP15#..GCC,GEN,MA,TH,VN202303

main57016-0D190iNSP150,151..PKN202407

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D180iNSP15#..GCC,GEN,MA,TH,VN202303

main57017-0D290iNSP150,151..PKN202407

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D030iNSP15#..GCC,GEN,PKN,TH,VN202303

main57025-0D100iNSP151..MA202305

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D030iNSP15#..GCC,GEN,PKN,TH,VN202303

main57026-0D100iNSP151..MA202305

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0D140iNSP15#..GCC,GEN,MA,TH,VN202303

main57101-0D270iNSP150,151..PKN202407

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0D200iNSP15#..GCC,GEN,MA,TH,VN202303

main57102-0D360iNSP150,151..PKN202407

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-0D040iNSP15#202303

57106GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT LH

main57106-0D020iNSP15#202303

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-0D060iNSP15#202303

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-0D060iNSP15#202303

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0D030iNSP15#..GCC,GEN,MA,TH,VN202303

main57113-0D080iNSP150,151..PKN202407

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0D030iNSP15#..GCC,GEN,MA,TH,VN202303

main57114-0D080iNSP150,151..PKN202407

57197BOX, TORQUE, FRONT RH

main57197-0D040iNSP15#202303

57198BOX, TORQUE, FRONT LH

main57198-0D040iNSP15#202303

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-0D021iNSP15#202303

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-0D031iNSP15#202303

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0D240iNSP15#..GCC,GEN,TH,VN202303

main57401-0D280iNSP150,151..PKN202407

main57401-0D290iNSP151..MA202305

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0D220iNSP15#..GCC,GEN,TH,VN202303

main57402-0D250iNSP150,151..PKN202407

main57402-0D260iNSP151..MA202305

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D240iNSP15#..5D202303

main57601-0D250iNSP151..4D..VN202304

main57601-0D470iNSP150,151..PKN202407

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D190iNSP15#..5D202303

main57602-0D200iNSP151..4D..VN202304

main57602-0D410iNSP150,151..PKN202407

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0D090iNSP15#..5D202303

main57603-0D100iNSP151..4D..VN202304

main57603-0D250iNSP150,151..PKN202407

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D120iNSP15#..GCC,GEN,TH,VN202303

main57605-0D190iNSP150,151..PKN202407

main57605-0D270iNSP151..MA202305

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D060iNSP15#..GCC,GEN,TH,VN202303

main57606-0D150iNSP150,151..PKN202407

main57606-0D160iNSP151..MA202305

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0D040iNSP15#..5D..(GCC,GEN,TH,VN)202303

main57607-0D100iNSP150,151..PKN202407

main57607-0D110iNSP151..MA202305

main57607-0D120iNSP151..4D..VN202304

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0D070iNSP15#..5D202303

main57616-0D080iNSP151..4D..VN202304

main57616-0D210iNSP150,151..PKN202407

58251DBRACE, FLOOR PANEL, FRONT

main58251-0D090iNSP15#..5D..(GCC,GEN,TH,VN)202303

RH

main58251-0D110iNSP151..MA202305

RH

main58251-0D160iNSP151..4D..VN202304

RH

main58251-0D170iNSP150,151..PKN202407

RH

main58252-0D070iNSP15#..5D..(GCC,GEN,TH,VN)202303

LH

main58252-0D090iNSP151..MA202305

LH

main58252-0D150iNSP151..4D..VN202304

LH

main58252-0D170iNSP150,151..PKN202407

LH

58289DBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0D120iNSP15#202303

RH

main58299-0D120iNSP15#202303

LH

90105T0204

main90105-T0204

9011506166

main90115-06166

90115T0011

main90115-T0011

9011908C64

main90119-08C64

90119T0335

main90119-T0335

43 parts on this diagram · 2 diagrams in section
