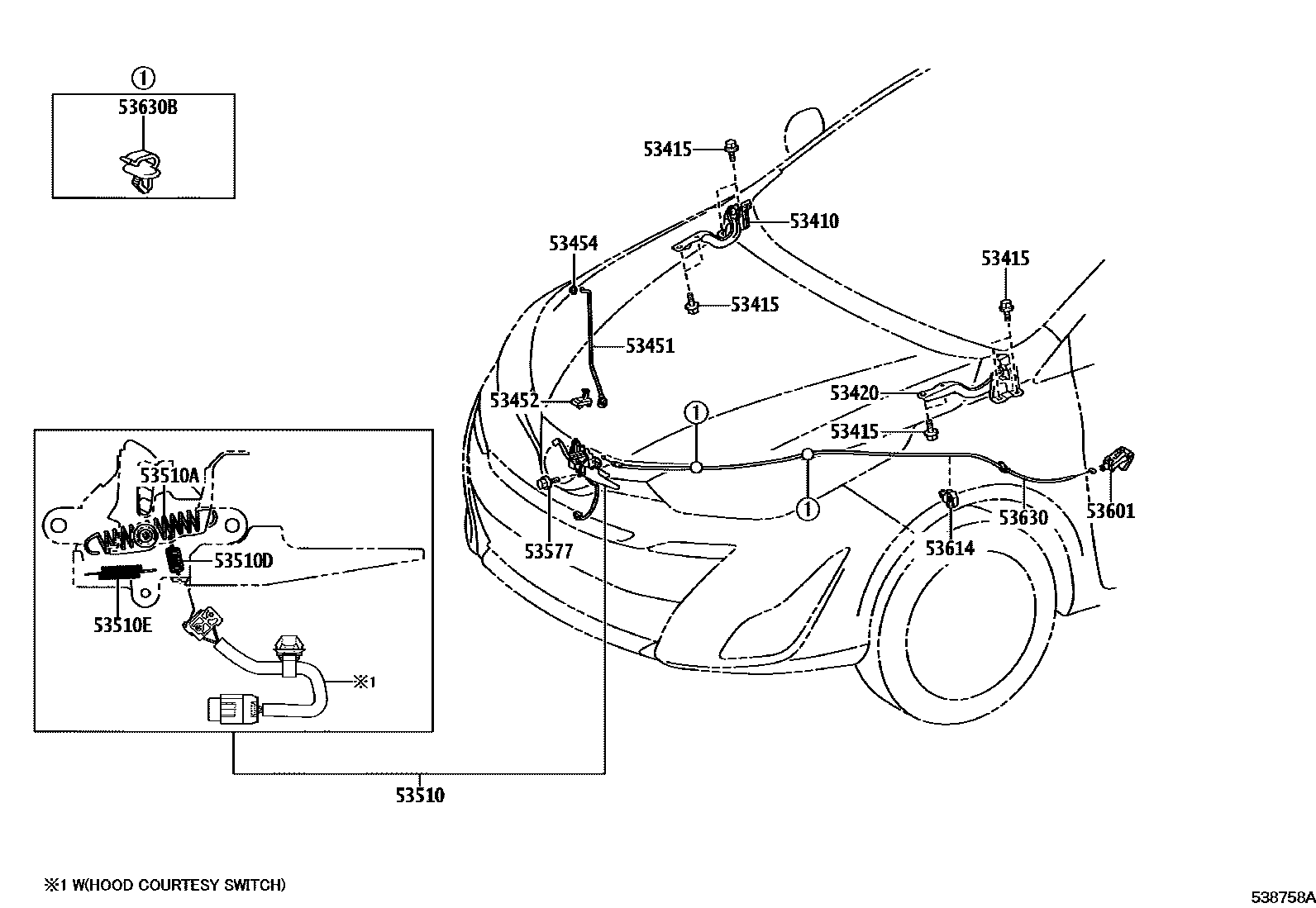

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0D400iNSP15#..GCC,GEN,MA,TH,VN202303

main53410-0D820iNSP150,151..PKN202407

53415BOLT, HOOD HINGE

main90105-T0120iNSP15#202303

53420HINGE ASSY, HOOD, LH

main53420-0D400iNSP15#..GCC,GEN,MA,TH,VN202303

main53420-0D820iNSP150,151..PKN202407

53451ROD, HOOD SUPPORT

main53440-0D220iNSP15#..GCC,GEN,MA,TH,VN202303

main53440-0D280iNSP150,151..PKN202407

53452HOLDER, HOOD STAY

main53452-0D090iNSP15#202303

53454CLIP, HOOD SUPPORT ROD

main90480-T0009iNSP15#202303

53510LOCK ASSY, HOOD

main53510-0D600iNSP150..D202407

main53510-0D770iNSP152202303

main53510-0D790iNSP151..GEN202303

main53510-0D800iNSP151..R..GEN202303

COSTA RICA SPEC

main53510-0D800iNSP151..5F..GEN202303

GUATEMALA

main53510-0D800iNSP151..5F..GEN202303

CHILE SPEC

main53510-0D800iNSP151..5F..GEN202303

ECUADOR

main53510-0D830iNSP151..MA202305

main53510-0D850iNSP150..GCC202303

main53510-0D860iNSP150,151..G..PKN202407

main53510-0DA90iNSP151..VN202303

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16077iNSP15#202303

WD=1.6,CW=12

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iNSP15#202303

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iNSP15#202303

WD=0.9,CW=21

53577BOLT, HOOD LOCK

main90119-T0273iNSP15#202303

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-A0iNSP150;NSP151..5F..(GEN,PKN);NSP151..CVT..(GEN,PKN,VN)202303

IVORY,TRIM0#

main53601-0D040-C1iNSP15#202303

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-16790iNSP150,151..LHD202303

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D340iNSP151..5D..VN;NSP15#..GCC,GEN,PKN,TH202303

main53630-0D380iNSP151..MA202305

main53630-0D390iNSP151..4D..VN202304

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNSP15#202303

15 parts on this diagram · 2 diagrams in section
