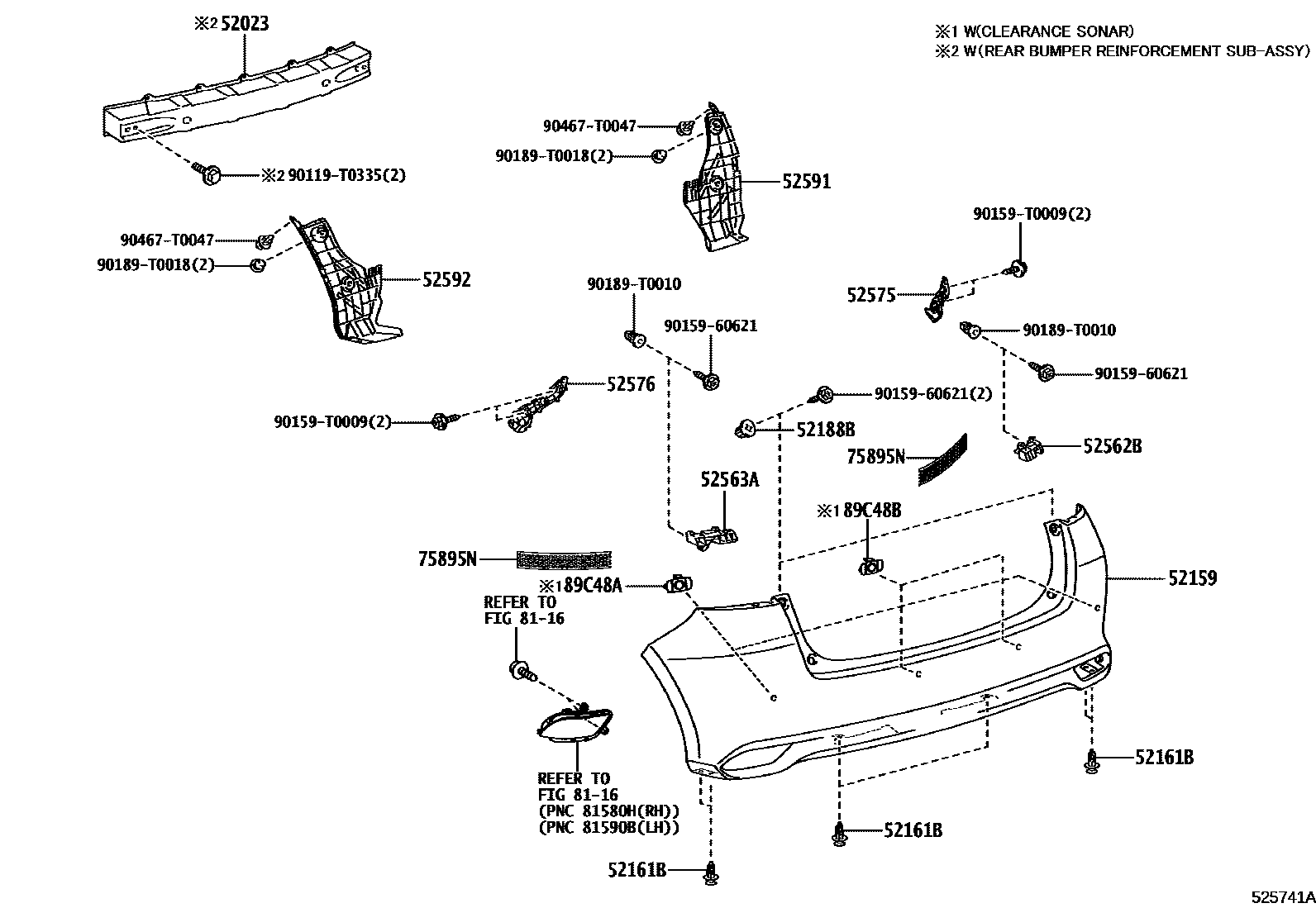

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,YP2 PACKAGE
PAINT REQ.,ECUADOR&YP2 PACKAGE
PAINT REQ.,YP2 PACKAGE
PAINT REQ.
PAINT REQ.,YP2 PACKAGE
PAINT REQ.
PAINT REQ.
PAINT REQ.,YP2 PACKAGE
PAINT REQ.
PAINT REQ.,YP2 PACKAGE
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
52188BSPACER, REAR BUMPER MOUNTING
ECUADOR
YP2 PACKAGE
ECUADOR&YP2 PACKAGE
YP2 PACKAGE
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
75895NTAPE, MOULDING, NO.1
ECUADOR&YP2 PACKAGE
YP2 PACKAGE
YP2 PACKAGE
8116
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
90119T0335
main90119-T0335
9015960621
main90159-60621
90159T0009
main90159-T0009
90189T0010
main90189-T0010
90189T0018
main90189-T0018
90467T0047
main90467-T0047
20 parts on this diagram · 4 diagrams in section
