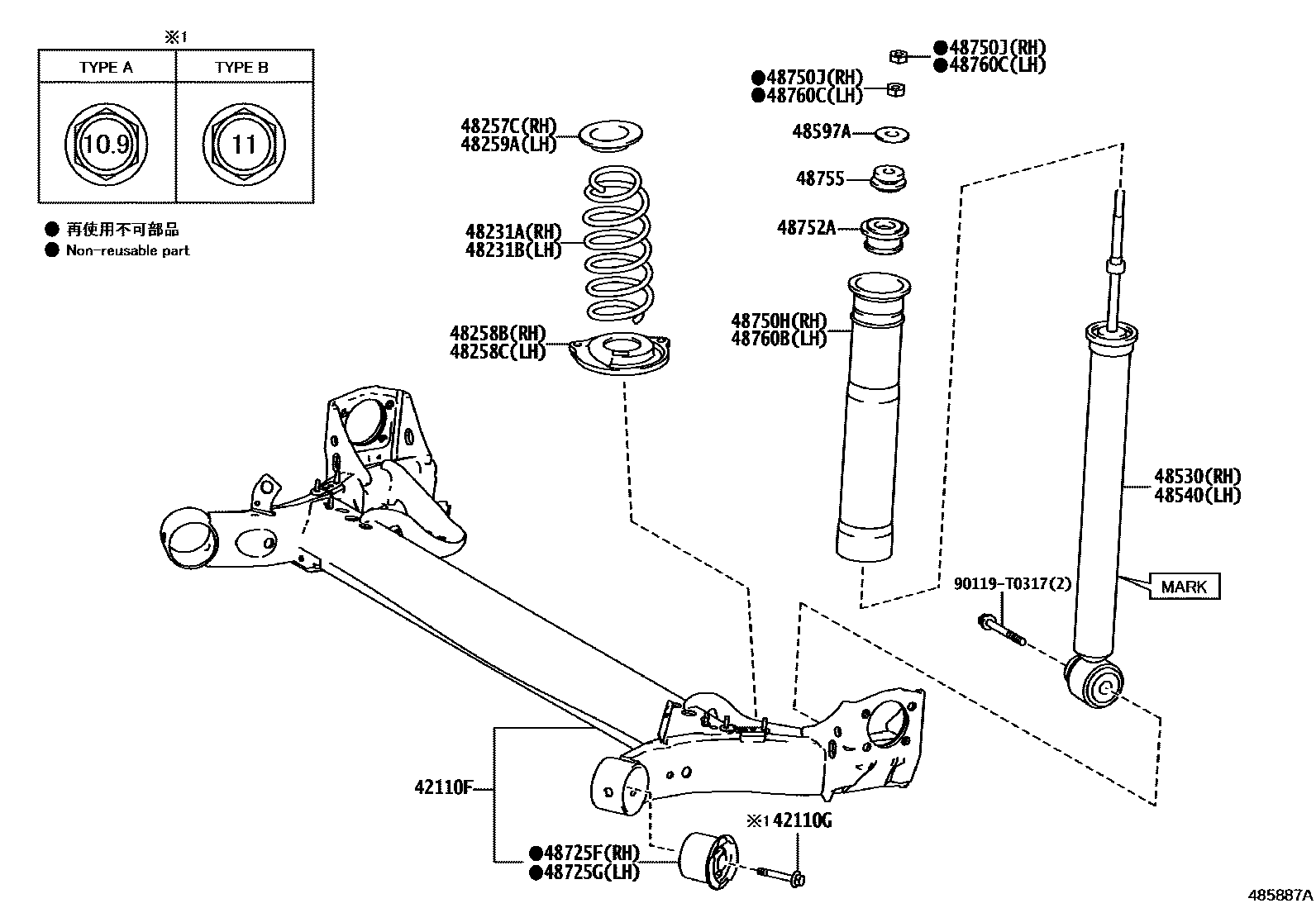

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-0D422iNSP15#..GCC,GEN,PKN,TH202303

main42110-0D432iNSP151..VN202303

main42110-0D560iNSP151..R..MA202305

main42110-0D600iNSP151..G..MA202305

42110GBOLT (FOR REAR AXLE BEAM)

main90119-12385iNSP15#202303

TYPE B:REFER ILLUST.

main90119-T0598iNSP15#202303

TYPE A:REFER ILLUST.

48231ASPRING, COIL, REAR RH

main48231-0D470iNSP152202303

main48231-0D480iNSP151..R..GEN202303

ROUGH ROAD AREA SPEC-WITHOUT

main48231-0D500iNSP150..GEN202303

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main48231-0DA10iNSP151..VN202303

main48231-0DA20iNSP151..MA202305

main48231-0DA40iNSP150,151..G..PKN202407

48231BSPRING, COIL, REAR LH

main48231-0D470iNSP152202303

main48231-0D480iNSP150..R202303

ROUGH ROAD AREA SPEC-WITHOUT

main48231-0D500iNSP150..D;NSP151..GEN202303

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main48231-0DA10iNSP151..VN202303

main48231-0DA20iNSP151..MA202305

main48231-0DA40iNSP150,151..G..PKN202407

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0D041iNSP15#..GCC,GEN,PKN,TH,VN202303

main48257-0D060iNSP151..MA202305

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0D120iNSP151..5D..VN;NSP15#..GCC,GEN,MA,PKN,TH202303

main48258-0D160iNSP151..4D..VN202304

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0D120iNSP151..5D..VN;NSP15#..GCC,GEN,MA,PKN,TH202303

main48258-0D160iNSP151..4D..VN202304

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0D041iNSP15#..GCC,GEN,PKN,TH,VN202303

main48257-0D060iNSP151..MA202305

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-0DD40iNSP151..4D..VN;NSP150,151..GEN202303

MARK 48530-0DD40

main48530-0DE00iNSP151..MA202305

MARK 48530-0DE00

main48530-0DF50iNSP15#..5D..(GCC,TH,VN)202303

MARK 48530-0DF50

main48530-0DF60iNSP150,151..PKN202407

MARK 48530-0DF60

main48530-0DG90iNSP15#202303

MK.-0DG90 OR -0DF50

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-0DD40iNSP151..4D..VN;NSP150,151..GEN202303

MARK 48530-0DD40

main48530-0DE00iNSP151..MA202305

MARK 48530-0DE00

main48530-0DF50iNSP15#..5D..(GCC,TH,VN)202303

MARK 48530-0DF50

main48530-0DF60iNSP150,151..PKN202407

MARK 48530-0DF60

main48530-0DG90iNSP15#202303

MK.-0DG90 OR -0DF50

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320iNSP15#202303

48725FBUSH, REAR AXLE CARRIER, RH

main48725-0D120iNSP15#202303

48725GBUSH, REAR AXLE CARRIER, LH

main48725-0D120iNSP15#202303

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0D210iNSP151..R..GEN202303

ROUGH ROAD AREA SPEC-WITHOUT

main48750-52161iNSP150..PKN;NSP151..GEN,PKN202303

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-T0011iNSP151..R..GEN202303

(L)

main90170-T0011iNSP150,152..R;NSP151..MA,VN202303

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP),(L)

main90170-T0011iNSP150,152..R;NSP151..MA,VN202303

ROUGH ROAD AREA SPEC-WITHOUT

main94130-61000iNSP150..PKN;NSP151..GEN,PKN202303

(J)

main94130-61000iNSP150..PKN;NSP151..GEN,PKN202303

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP),(J)

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-0D020iNSP15#202303

48755SUPPORT, REAR SUSPENSION

main48755-0D100iNSP15#202303

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-0D210iNSP150,152..R;NSP151..MA,VN202303

ROUGH ROAD AREA SPEC-WITHOUT

main48750-52161iNSP150..PKN;NSP151..GEN,PKN202303

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-T0011iNSP150,152..R;NSP151..MA,VN202303

(L)

main90170-T0011iNSP150,152..R;NSP151..MA,VN202303

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP),(L)

main90170-T0011iNSP150,152..R;NSP151..MA,VN202303

ROUGH ROAD AREA SPEC-WITHOUT

main94130-61000iNSP150..PKN;NSP151..GEN,PKN202303

(J)

main94130-61000iNSP150..PKN;NSP151..GEN,PKN202303

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP),(J)

90119T0317

main90119-T0317

20 parts on this diagram · 1 diagram in section
