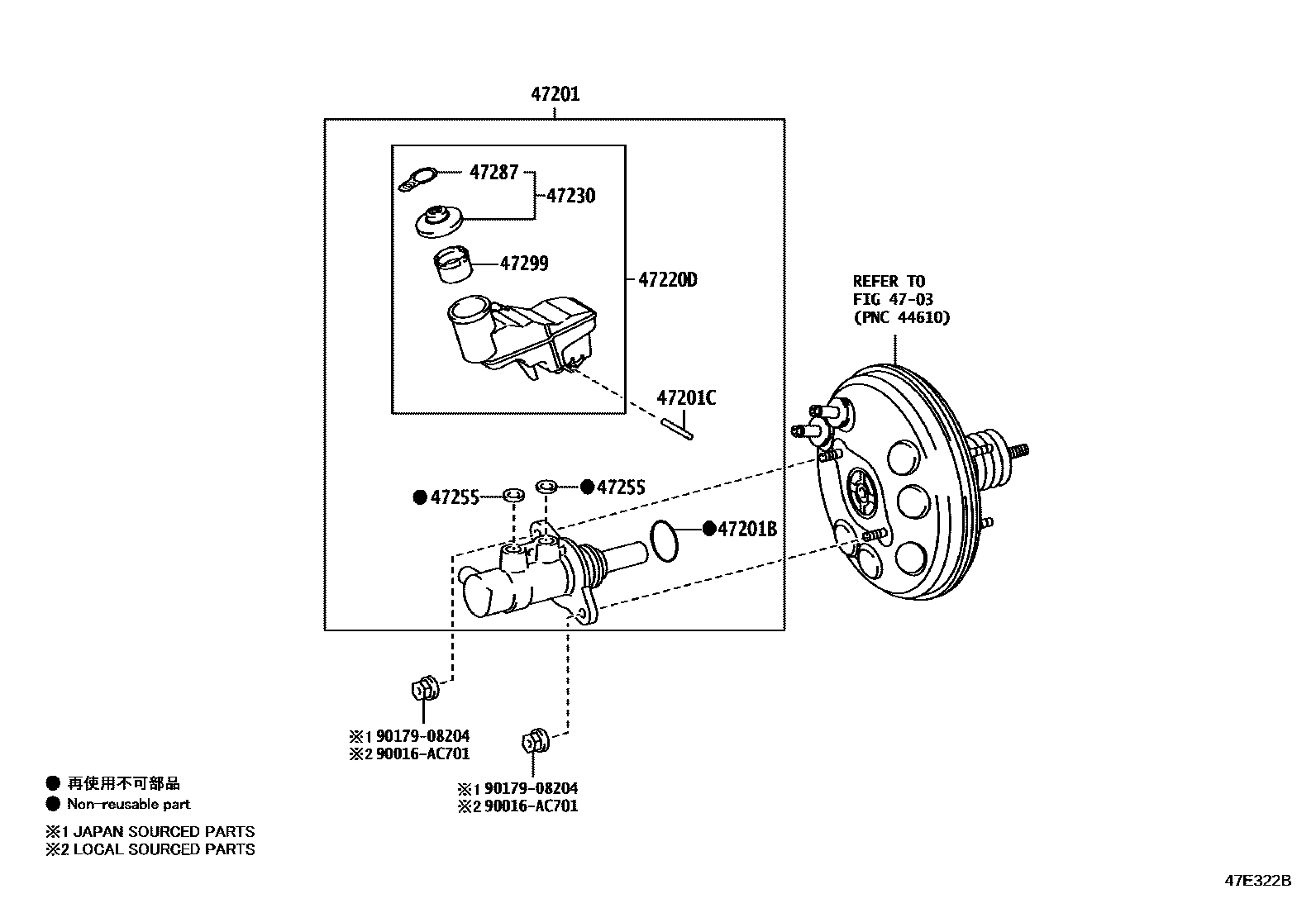

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0D610iNSP151..R..MA;NSP15#..CVT..(PKN,TH)202303

main47201-0D620iNSP151..G..MA202305

main47201-0D630iNSP150,151..CVT..(GCC,GEN)202303

main47201-0D640iNSP150,151..5F..GEN202303

main47201-0D810iNSP150,151..5F..PKN202407

main47201-0D820iNSP151..CVT..VN202303

main47201-0DB00iNSP151..5F..VN202304

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH903iNSP15#202303

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNSP15#202303

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D220iNSP15#..RHD..CVT202303

main47220-0D230iNSP150,151..5F..PKN202407

main47220-0D370iNSP150,151..LHD..CVT202303

main47220-0D380iNSP150,151..5F..R202303

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iNSP15#202303

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001iNSP15#202303

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNSP15#202303

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iNSP152202303

(L)

main47299-25010iNSP152202303

(J)

90016AC701

main90016-AC701

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
