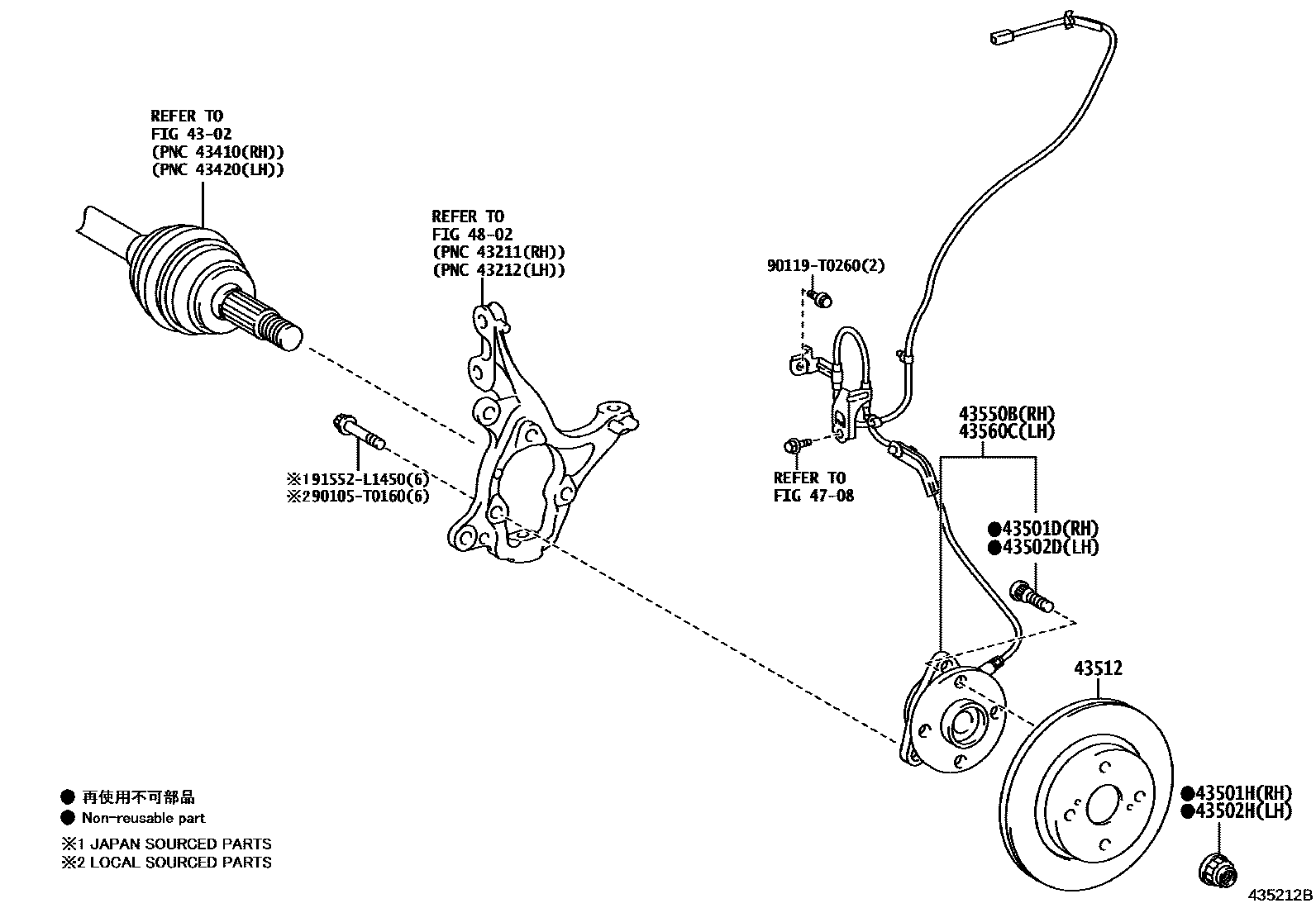

FRONT AXLE HUB

4302

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02081iNSP15#202303

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNSP15#..GCC,GEN,MA,TH,VN202303

(J)

main90177-22001iNSP150,151..PKN202407

main90177-T0017iNSP15#..GCC,GEN,MA,TH,VN202303

(L)

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02081iNSP15#202303

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNSP150,151..PKN202407

main90177-22001iNSP15#..GCC,GEN,MA,TH,VN202303

(J)

main90177-T0017iNSP15#..GCC,GEN,MA,TH,VN202303

(L)

43512DISC, FRONT

main43512-0D100iNSP151..R..VN;NSP151..G..(MA,VN)202303

main43512-0D190iNSP15#..5D..(D,R)202303

main43512-0D280iNSP150,151..PKN202407

43550BHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, RH

main43550-0D050iNSP150,151..CVT..GEN;NSP15#..GCC,MA,PKN,TH,VN202303

main43550-0D130iNSP150,151..5F..GEN202303

43560CHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, LH

main43560-0D050iNSP150,151..CVT..GEN;NSP15#..GCC,MA,PKN,TH,VN202303

main43560-0D120iNSP150,151..5F..GEN202303

4708

4802

90105T0160

main90105-T0160

90119T0260

main90119-T0260

91552L1450

main91552-L1450

13 parts on this diagram · 1 diagram in section
