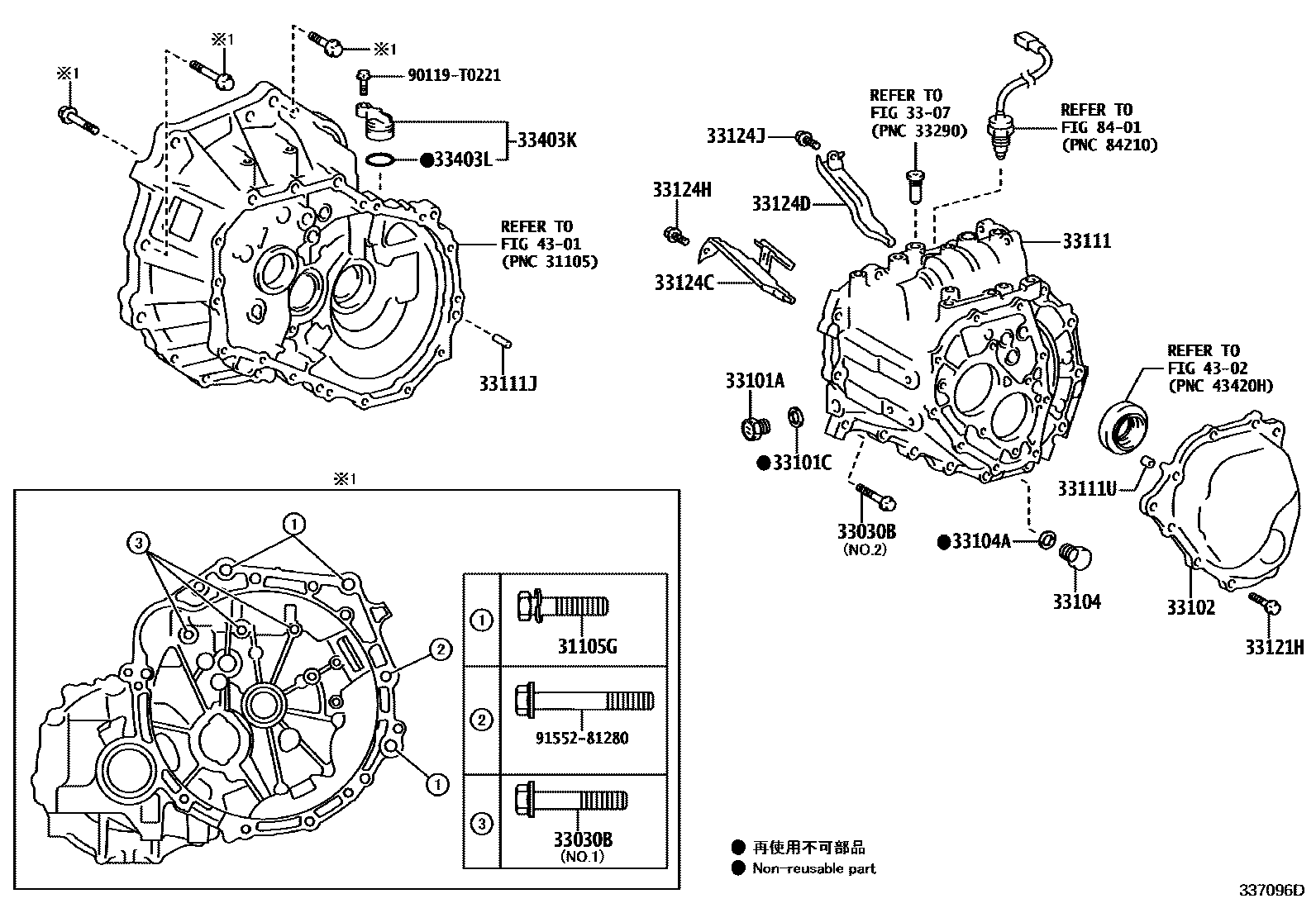

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-T0310iNSP150,151..5F..R202303

*12-1.25PX45-30,(L)

main90119-T0310iNSP150,151..5F..PKN202407

*12-1.25PX45-30

main91619-61245iNSP150,151..5F..R202303

*12-1.25PX45-30,(J)

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-T0323iNSP150,151..5F202303

*8-1.25PX51-28,NO.2:REFER ILLUST.

main90105-T0325iNSP150,151..5F202303

*8-1.25PX45-27.5,NO.1:REFER ILLUST.

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iNSP150,151..5F202303

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-T0021iNSP150,151..5F202303

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-52021iNSP150,151..5F202303

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNSP150,151..5F202303

33104AGASKET, DRAIN PLUG(MTM)

main90430-T0021iNSP150,151..5F202303

33111CASE, MANUAL TRANSMISSION

main33111-0D120iNSP150,151..5F202303

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNSP150,151..5F202303

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iNSP150,151..5F202303

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-T0449iNSP150,151..5F202303

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iNSP150,151..5F202303

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iNSP150,151..5F202303

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-T0296iNSP150,151..5F202303

33124JBOLT, W/WASHER

main90119-T0296iNSP150,151..5F202303

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-0D020iNSP150,151..5F202303

33403LRING, O

main96711-24030iNSP150,151..5F202303

4301

4302

8401

90119T0221

main90119-T0221

9155281280

main91552-81280

23 parts on this diagram · 1 diagram in section
