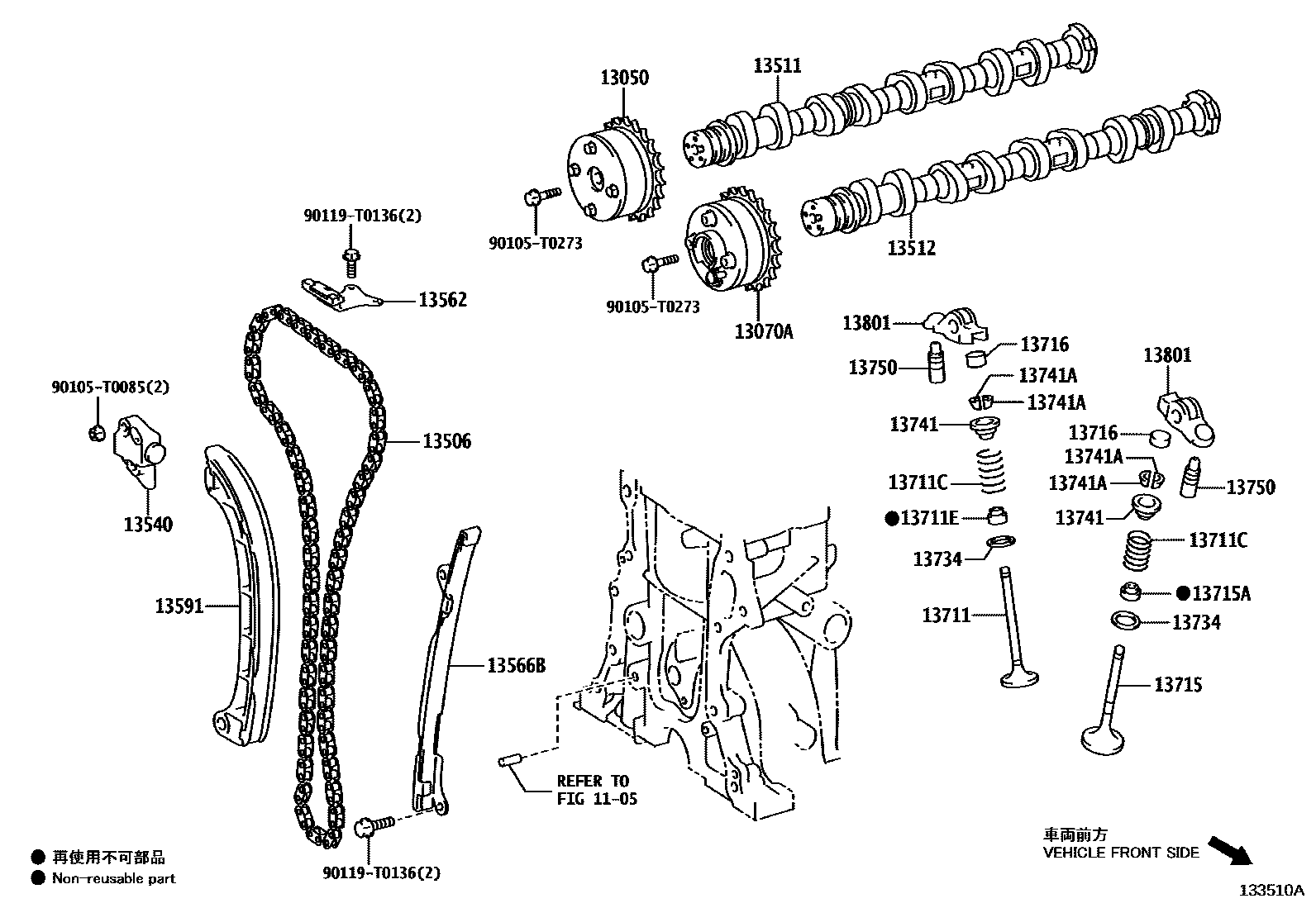

CAMSHAFT & VALVE

0001 1 0002 1

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-0Y020i1NRFE,2NRFE..NSP150,151..RHD202305

main13050-0Y020i1NRFE,2NRFE..NSP150,151..LHD..5D202303

*712 OR *432

main13050-0Y020i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13050-47040i3NRFKE..NSP152202303

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-0Y020i1NRFE,2NRFE..NSP150,151..RHD202305

main13070-0Y020i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13070-0Y020i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main13070-0Y060i3NRFKE..NSP152202303

13506CHAIN SUB-ASSY

main13506-0Y040i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*264

main13506-0Y040i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main13506-0Y040i1NRFE,2NRFE..NSP150,151..RHD202305

13511CAMSHAFT

main13501-0Y050i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13501-0Y050i1NRFE,2NRFE..NSP150,151..PKN202407

main13501-0Y100i1NRFE,2NRFE..NSP150,151..LHD..5D202303

*712 OR *432

main13501-0Y140i3NRFKE..NSP152202303

main13501-BZ040i2NRFE..NSP151..MA202305

13512CAMSHAFT, NO.2

main13502-0Y050i1NRFE,2NRFE..NSP150,151..PKN202407

main13502-0Y050i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13502-0Y080i1NRFE,2NRFE..NSP150,151..LHD..5D202303

*712 OR *432

main13502-0Y120i3NRFKE..NSP152202303

main13502-BZ030i2NRFE..NSP151..MA202305

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13540-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main13540-0Y010i1NRFE,2NRFE..NSP150,151..RHD202305

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-0Y020i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13562-0Y020i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main13562-0Y020i1NRFE,2NRFE..NSP150,151..RHD202305

13566BGUIDE, TIMING CHAIN

main13566-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13566-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main13566-0Y010i1NRFE,2NRFE..NSP150,151..RHD202305

13591ARM, TIMING CHAIN TENSION

main13591-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13591-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main13591-0Y010i1NRFE,2NRFE..NSP150,151..RHD202305

13711VALVE, INTAKE

main13711-0Y020i1NRFE,2NRFE..NSP150,151..RHD202305

main13711-0Y020i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13711-0Y020i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-T0045i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main90501-T0045i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main90501-T0045i1NRFE,2NRFE..NSP150,151..RHD202305

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31085i1NRFE,2NRFE..NSP150,151..LHD..5D202303

*264

main90080-31085i1NRFE,2NRFE,3NRFKE..NSP15#..RHD202303

*712 OR *432

13715VALVE, EXHAUST

main13715-0Y020i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13715-0Y020i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main13715-0Y020i1NRFE,2NRFE..NSP150,151..RHD202305

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31084i1NRFE,2NRFE,3NRFKE..NSP15#..RHD202303

*264

main90080-31084i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

13716CAP, VALVE STEM

main13716-0C010i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main13716-0C030i1NRFE,2NRFE..NSP150,151..PKN202407

main13716-0C030i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13716-75020i2NRFE..NSP151..MA202305

13734SEAT, VALVE SPRING

main13734-0C010i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13734-0C010i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main13734-0C010i1NRFE,2NRFE..NSP150,151..RHD202305

13741RETAINER, VALVE SPRING

main13741-0C030i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main13741-0Y010i1NRFE,2NRFE..NSP150,151..RHD202305

main13741-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*264

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main90913-03028i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main90913-03028i1NRFE,2NRFE..NSP150,151..RHD202305

13750ADJUSTER ASSY, VALVE LASH

main13750-0C030i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main13750-0C040i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13750-0C040i1NRFE,2NRFE..NSP150,151..RHD202305

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0C020i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main13801-0C030i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main13801-0C030i1NRFE,2NRFE..NSP150,151..RHD202305

90105T0085

main90105-T0085

90105T0273

main90105-T0273

90119T0136

main90119-T0136

24 parts on this diagram · 2 diagrams in section
