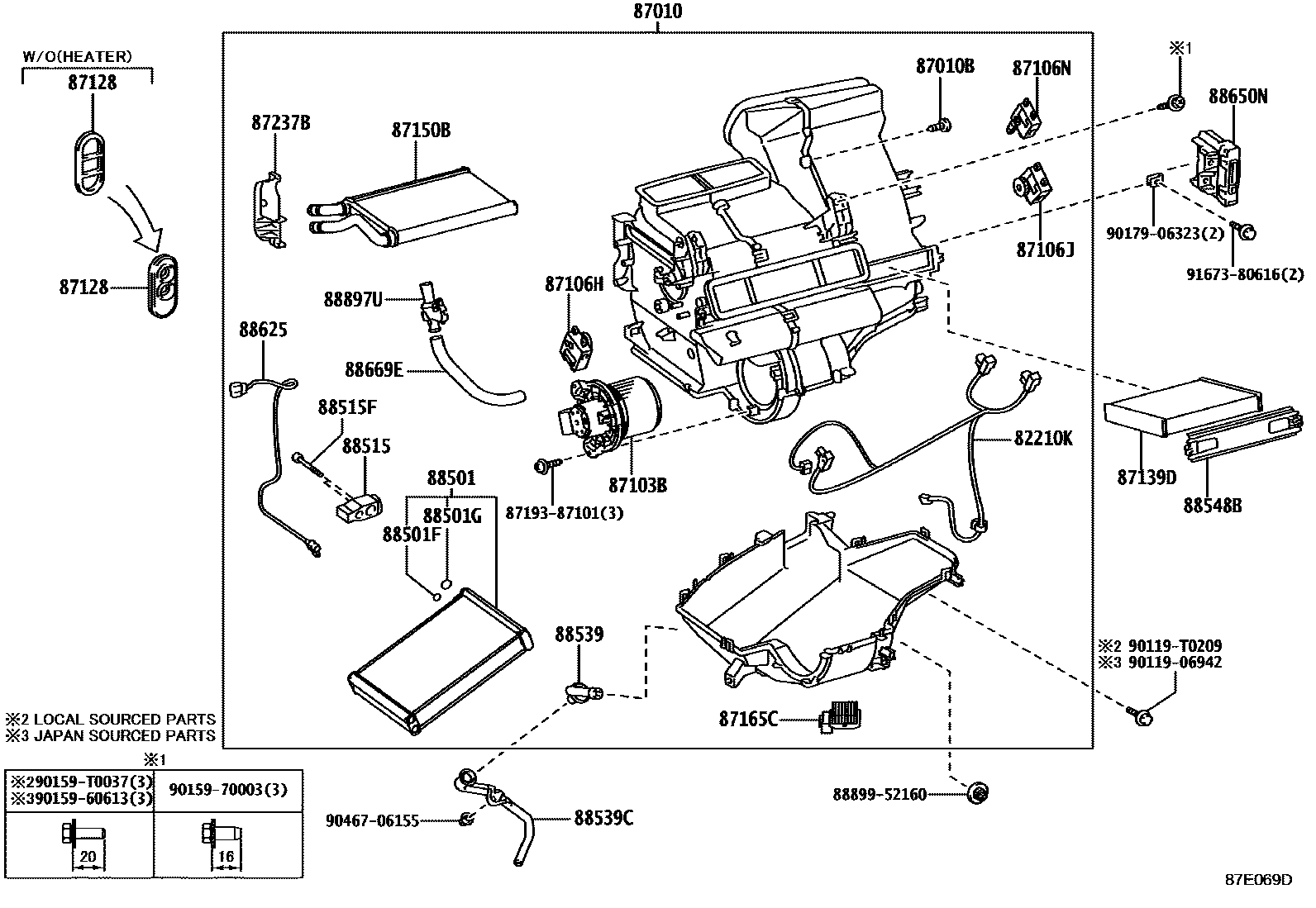

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0003 1MANUAL AIR CONDITIONER 0005 1BOOST VENTILATOR 0007 1AUTO AIR CONDITIONER 0011 1AUTO AIR CONDITIONER 0012 1MANUAL AIR CONDITIONER 0016 1MANUAL AIR CONDITIONER 0017 1AUTO BOOST VENTILATOR 0018 1MANUAL BOOST VENTILATOR 0019 1HEATER ONLY 0020 1AUTO BOOST VENTILATOR 0023 1MANUAL AIR CONDITIONER 0026 1MANUAL BOOST VENTILATOR 0029 1AUTO AIR CONDITIONER 0033 1MANUAL AIR CONDITIONER 0037 1AUTO COOLER OR AUTO *BV 0041 1MANUAL COOLER OR MANUAL *BV 0045 1ROOF FAN

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0D010iNCP150..TH..(G,V)..B201304-201603

SINGAPORE SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main82212-0D010iNCP150..TH..G..B201304-201603

SINGAPORE & BRUNEI SPEC

main82212-0D010iNCP150..TH..G..B201304-201603

SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main82212-0D010iNCP150..RHD..G..C201304-202207

main82212-0D020iNCP151..LHD..GEN..G201308-201603

G-HIGH PACKAGE

main82212-0D020iNCP151..LHD..GEN..G201308-201603

LATIN AMERICA SPEC

main82212-0D020iNCP150..TAIW..V201308-202207

main82212-0D090iNSP151..RHD..GEN201710-202406

main82212-0D100iNSP151..D201807-201910

main82212-0D110iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

87010UNIT ASSY, AIR CONDITIONER

main87010-0D770iNCP151..RHD201308-201603

main87010-0D780iNCP150..GEN;NCP151..LHD..GEN..(D,R)201308-201608

main87010-0D790iNCP150..TH..(D,R)..B201304-201603

main87010-0D810iNCP150..VN..G201308-201608

main87010-0D820iNCP150..TH..(G,V)..B201304-201603

main87010-0D830iNCP15#..GCC..B201308-201603

main87010-0D870iNCP150..MA201310-201608

main87010-0D880iNCP15#..PH201307-201606

main87010-0DA10iNCP150..TAIW..(D,R)201404-201604

main87010-0DA20iNCP150..TAIW..V201404-201604

main87010-0DB70iNCP150..RHD..(D,R)..C201312-201609

main87010-0DB80iNCP150..RHD..G..C201312-201609

main87010-0DB90iNCP15#..GCC..C201402-201609

main87010-0DD50iNSP150..I202003-202406

main87010-0DD60iNSP151..I202003-202406

main87010-0DE50iNSP151..TH..(D,R)..B201604

main87010-0DE60iNSP151..TH..(G,V)..B201604

main87010-0DE70iNSP150..RHD201604-201709

main87010-0DE80iNSP150,151..VN..(D,R)201604-201807

main87010-0DE90iNSP150..LHD..GEN..G201604-201807

main87010-0DF00iNSP150,151..GCC..B201604-201712

main87010-0DF30iNSP151..MA201608-201812

main87010-0DF40iNSP151..TAIW..(D,R)201605-201802

main87010-0DF50iNSP151..TAIW..V201605-201802

main87010-0DF60iNSP150,151..PH201607-201806

main87010-0DF70iNSP151..RHD..(D,R)..C201610-201712

main87010-0DF80iNSP151..TH..G..C201610-201712

main87010-0DF90iNSP150,151..GCC..C201610-201712

main87010-0DG30iNSP151..(G,R,V)..G201804-201908

main87010-0DG40iNSP151..(BZ,GEN)..(G,V)..H201807-201903

XL-PLUS PACKAGE

sub87010-0DG41

main87010-0DG41iNSP151..BZ..R201904-201910

XL-PLUS PACKAGE

main87010-0DG50iNSP151..D..G201804-201908

main87010-0DG60iNSP151..(BZ,GEN)..(D,R)..H201807-201903

sub87010-0DG61

main87010-0DG61iNSP151..(BZ,GEN)..(D,R)..H201904-201910

main87010-0DG70iNSP151..D201807-201910

main87010-0DK50iNSP151..MA201901-202011

main87010-0DK60iNSP151..5F..G..A;NSP150,151..LHD..GEN..(D,R)..A201902-202207

main87010-0DK70iNSP150,151..LHD..CVT..GEN..G..A201902-202207

main87010-0DM10iNSP150..RHD201710-201811

main87010-0DM11iNSP150..RHD..CVT..A201811-202207

main87010-0DM20iNSP150,151..(D,R)..E201710-201912

main87010-0DM30iNSP151..G..E201710-201912

main87010-0DM40iNSP150..5F..GCC..D..A201801-202207

main87010-0DM60iNSP151..TH..R..A201708-202207

main87010-0DM70iNSP151..TH..G..A201708-202207

main87010-0DM80iNSP152201708-202207

main87010-0DN00iNSP151..RHD..GEN201710-201811

main87010-0DN01iNSP151..RHD..GEN201811-202207

main87010-0DN80iNSP151..(D,R)..F201803-202101

main87010-0DN90iNSP151..V..F201803-202101

main87010-0DP00iNSP150..5F..D..C201801-202207

main87010-0DP20iNSP151..IDN..R;NSP151..5F..D..C201801-202207

main87010-0DP30iNSP151..IDN..G201801-202207

main87010-0DP50iNSP150..D201807-201910

main87010-0DQ00iNSP151..AGT..G201807-201903

sub87010-0DQ01

main87010-0DQ01iNSP151..AGT..G201904-201910

main87010-0DQ10iNSP151..AGT..R201807-201903

sub87010-0DQ11

main87010-0DQ11iNSP151..AGT..R201904-201910

87010BSCREW(FOR AIR CONDITIONER UNIT)

main88718-0A020iNCP15#..GCC..G..B201308-201603

G-HIGH PACKAGE

main88718-0A020iNCP150..IDN..(D,R)..B201304-201608

main90068-00042iNSP150,151..LHD..CVT..GEN..G..A201710-202207

main90068-00042iNSP151..TH..R..A201708-202207

ECO PACKAGE

main90094-90426iNSP151..BZ..R201807-201910

XL-PLUS PACKAGE

main90099-00317iNSP151..F201803-202101

main90099-00968iNSP150,151..GCC201402-201712

G-HIGH PACKAGE

main90099-00968iNCP150..MA201307-202207

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D280iNCP150..IDN..B201304-202207

main87103-0D290iNSP150,151..LHD..GEN201308-202207

main87103-0D310iNSP151..MA201310-202011

main87103-0D320iNSP150,151..D201307-201910

main87103-0D330iNSP151..TAIW201404-202101

main87103-0D360iNSP151..5F..D..C;NSP151..IDN..(G,R)201312-202207

main87103-0D370iNSP150,151..GCC..C201402-202207

main87103-0D420iNSP150,151..I202003-202406

main87103-0D450iNSP151..H201807-201910

main87103-0D460iNSP151..G201804-201908

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-0D070iNCP151..LHD..GEN..G201308-201603

G-HIGH PACKAGE

main87106-0D070iNCP150..VN..G201308-202207

main87106-0D100iNSP151..V..F201404-202101

main87106-0D310iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main87106-0D360iNSP151..RHD..GEN201710-202207

main87106-0D500iNSP151..(G,R,V)..G201804-201908

main87106-0D570iNSP151..I202003-202406

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-0D070iNCP151..LHD..GEN..G;NCP150..TH..(G,V)..B201304-202207

main87106-0D100iNSP151..V..F201404-202101

main87106-0D110iNSP151..D201807-201910

main87106-0D190iNSP151..TH..G..C201312-201712

main87106-0D190iNSP151..IDN..G201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main87106-0D310iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main87106-0D330iNSP151..(G,R,V)..G201804-201908

main87106-0D530iNSP151..MA201901-202011

main87106-0D560iNSP151..I202003-202406

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-0D150iNCP150..IDN..G..B201304-202207

main87106-0D160iNSP151..VN..G201308-202207

main87106-0D160iNCP151..LHD..GEN..G201308-201603

G-HIGH PACKAGE

main87106-0D180iNSP151..TAIW..V201404-202101

main87106-0D200iNSP151..IDN..G201312-202207

main87106-0D300iNSP151..D201807-201910

main87106-0D320iNSP151..BZ..R201807-201910

XL-PLUS PACKAGE

main87106-0D340iNSP151..(G,R,V)..G201804-201908

main87106-0D370iNSP150..5F..G..A201708-202108

main87106-0D370iNSP152201708-202207

ECO PACKAGE

main87106-0D380iNSP150..5F..GCC..D..A201710-202207

main87106-0D440iNSP151..(D,R)..F201803-202101

main87106-0D450iNSP151..IDN..R;NSP151..5F..D..C201801-202207

main87106-0D460iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main87106-0D470iNSP150..D201807-201910

main87106-0D510iNSP151..D..G201804-201908

main87106-0D520iNSP151..(D,R)..H201807-201910

main87106-0D540iNSP151..MA201901-202011

main87106-0D580iNSP151..I202003-202406

main87106-0D590iNSP150..I202003-202406

87128GROMMET, HEATER

main87128-0D090iNCP15#..VN201308-201701

sub87128-0D091

main87128-0D091iNSP150..5F..G..A;NSP150..5F..GCC..D..A201702-202207

main87128-0D100iNCP150..IDN..B201304-202207

main87128-0D110iNSP151..MA201310-202011

main87128-0D120iNSP150,151..PH201307-201806

main87128-0D130iNSP151..TAIW201404-201701

sub87128-0D131

main87128-0D131iNSP151..F201702-202101

main87128-0D150iNSP151..5F..D..C;NSP151..IDN..(G,R)201312-202207

main87128-0D160iNCP15#..GCC..C201402-201701

sub87128-0D161

main87128-0D161iNSP150..5F..D..C201702-202207

main87128-0D170iNSP150,151..I202003-202406

main87128-0D210iNSP151..G201804-201908

main87128-0D220iNSP151..H201807-201910

87139DELEMENT, AIR REFINER

main87139-02130iNSP150..CVT..GCC..D;NSP150,151..GCC..(G,R)201804-202406

POLLEN FILTER

main87139-02150iNSP151..H201904-201910

OE PART

main87139-02150iNSP151..H201807-201910

DUST FILTER

main87139-06070iNCP150..TAIW201404-202101

DUST FILTER

main87139-06080iNCP15#..(GCC,TH)..C201304-202207

DUST FILTER

main87139-0D050iNSP151..MA201310-202011

DUST FILTER

main87139-0D130iNSP150,151..PH201307-201910

DUST FILTER

main87139-0D170iNCP150..IDN..B201304-202207

DUST FILTER

main87139-0D200iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201904-202207

main87139-50100iNCP150..IDN..B201304-202406

*DPF

87150BRADIATOR ASSY, HEATER

main87150-0D140iNCP15#..(GCC,GEN)..B201308-202207

main87150-0D160iNSP151..F201404-202101

main87150-0D190iNSP150..5F..D..C201402-202207

main87150-0D210iNSP151..(BZ,GEN)..H201807-201910

main87150-0D220iNSP151..G201804-201908

main87150-0D240iNSP151..AGT201807-201910

main87150-0D250iNSP150,151..I202003-202406

87165CCONTROL, BLOWER MOTOR

main87165-0D010iNSP151..VN..G201304-201904

main87165-0D040iNSP151..TAIW..V201404-201903

sub87165-0D160

main87165-0D060iNCP150..RHD..G..C201312-201712

sub87165-0D150

main87165-0D060iNSP150,151..GCC..G..C201801-201903

G-HI PACKAGE, WITH(CRUISE CONTROL)

sub87165-0D150

main87165-0D090iNSP151..D201807-201903

sub87165-0D170

main87165-0D100iNSP151..BZ..R201807-201904

XL-PLUS PACKAGE

sub87165-0D200

main87165-0D110iNSP151..(G,R,V)..G201804-201903

sub87165-0D190

main87165-0D120iNSP151..MA201901-201903

sub87165-0D180

main87165-0D140iNSP150,151..GCC..G..A201905-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main87165-0D150iNSP150,151..GCC..G..C201904-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main87165-0D160iNSP151..V..F201904-202101

main87165-0D170iNSP151..D201904-201910

main87165-0D180iNSP151..MA201904-202011

main87165-0D190iNSP151..(G,R,V)..G201904-201908

main87165-0D200iNSP151..BZ..R201904-201910

XL-PLUS PACKAGE

main87165-0D210iNSP151..I202003-202406

87237BCOVER, HEATER PIPING

main87237-0D040iNSP150..5F..G..A201308-202207

main87237-0D050iNSP150,151..LHD..GEN201308-202207

main87237-0D070iNCP150..TAIW201404-202101

main87237-0D100iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201402-202207

main87237-0D120iNSP151..H201807-201910

main87237-0D130iNSP151..G201804-201908

main87237-0D170iNSP150,151..I202003-202406

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D240iNCP15#..(GEN,TH)..B201304-201608

sub88501-0D250

main88501-0D250iNCP15#..GCC..B201308-201603

main88501-0D260iNCP150..MA201310-201608

main88501-0D270iNCP15#..PH201307-201606

main88501-0D280iNCP150..TAIW201404-201604

main88501-0D320iNCP150..RHD..C201312-201609

main88501-0D330iNCP15#..GCC..C201402-201609

main88501-0D370iNSP150..5F..G..A201604-202207

main88501-0D380iNSP150..5F..GCC..D..A201604-202207

main88501-0D400iNSP151..TAIW201605-202101

main88501-0D430iNSP150..5F..D..C201610-202207

main88501-0D460iNSP151..H201807-201910

main88501-0D470iNSP151..G201804-201908

main88501-0D510iNSP151..TH..G..A201604-202207

main88501-0D520iNSP151..TH..G..C201610-202207

main88501-0D530iNSP151..MA201608-202011

main88501-0D540iNSP150,151..D201607-201910

main88501-0D570iNSP152201708-202207

main88501-0D580iNSP150,151..I202003-202406

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90068-14044iNSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..A201710-202207

ID=10.2,OD=15.0

main90099-14120iNSP151..F201304-202207

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14043iNSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..A201710-202207

ID=13.4,OD=18.2

main90099-14121iNSP150,151..PH201304-202207

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-0D170iNCP150..TAIW201404-201604

sub88515-02700

main88515-0D240iNCP15#..(GCC,GEN,TH)..B201304-201608

main88515-0D250iNCP150..MA201310-201608

main88515-0D260iNCP15#..PH201307-201606

main88515-0D300iNCP15#..C201312-201609

main88515-0D370iNSP151..IDN201610-201910

sub88515-0D580

main88515-0D380iNSP150,151..D201807-201910

sub88515-0D600

main88515-0D390iNSP151..TAIW201605-201910

sub88515-0D590

main88515-0D400iNSP151..H201807-201910

sub88515-0D630

main88515-0D410iNSP151..G201804-201908

main88515-0D440iNSP151..MA201809-201910

sub88515-0D610

main88515-0D490iNSP151,152..TH..A201604-201803

main88515-0D500iNSP151..IDN..G;NSP151..RHD..(D,R)..C201610-201812

main88515-0D510iNSP151..MA201608-201809

sub88515-0D440

main88515-0D520iNSP150,151..PH201607-201806

sub88515-0D380

main88515-0D570iNSP150..5F..G..A;NSP150..5F..GCC..D..A201911-202207

main88515-0D580iNSP150..5F..D..C;NSP151..CVT..D..C201911-202207

main88515-0D590iNSP151..F201911-202101

main88515-0D610iNSP151..MA201911-202011

main88515-0D640iNSP150,151..I202003-202406

main88515-0K100iNSP150,151..VN201604-201910

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04057iNSP150,151..(GCC,GEN,TH,VN)..B201604-202207

main90099-04630iNSP150,151..(GCC,TH)..C;NCP15#..GCC,GEN,IDN,MA,PH,TH,VN;NSP151..(IDN,MA,PH,TAIW)..(B,C);NCP150,NSP150..(PH,TAIW)..(D,R)..B201304-202207

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D290iNCP150..IDN..B201304-202207

main88539-0D300iNCP15#..VN201308-202207

main88539-0D310iNSP151..MA201310-202011

main88539-0D320iNSP150,151..PH201307-201910

main88539-0D330iNCP150..TAIW201404-202101

main88539-0D420iNCP150..RHD..C201312-202207

main88539-0D430iNSP150..5F..D..C201402-202207

main88539-0D560iNSP151..H201807-201910

main88539-0D570iNSP151..G201804-201908

main88539-0D580iNSP150,151..I202003-202406

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-0D160iNSP151..H201807-201910

main88539-0D340iNCP15#..RHD..(GEN,TH)..B201304-202207

main88539-0D350iNSP150,151..VN201308-202207

main88539-0D360iNSP151..MA201310-202011

main88539-0D370iNSP150,151..D201307-201910

main88539-0D380iNSP151..TAIW201404-202101

main88539-0D440iNCP150..RHD..C201312-202207

main88539-0D450iNSP150,151..GCC..C201402-202207

main88539-0D490iNSP150,151..I202003-202406

main88539-0D540iNSP151..G201804-201908

88548BCASE, AIR FILTER

main88548-0D160iNSP150,151..GCC..B201304-202207

main88548-0D180iNSP151..MA201310-202011

main88548-0D190iNSP150,151..D201307-201910

main88548-0D200iNSP151..TAIW201404-202101

main88548-0D230iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main88548-0D250iNSP151..G201804-201908

main88548-0D260iNSP151..H201807-201910

main88548-0D270iNSP150,151..I202003-202406

88625THERMISTOR, COOLER, NO.1

main88620-0D050iNSP151..GEN;NSP150..LHD..GEN..(D,R)201304-202108

main88620-0D050iNSP152201708-202207

ECO PACKAGE

main88620-0D060iNCP150..TH..(G,V)..B201304-201603

main88620-0D070iNCP150..MA201310-201812

main88620-0D080iNCP15#..PH201307-201910

main88620-0D090iNCP150..TAIW201404-202101

main88620-0D120iNSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C201312-202207

main88620-0D130iNCP150..RHD..G..C201312-201609

main88620-0D140iNSP151..MA201901-202011

main88620-0D160iNSP150..I202003-202406

main88620-0D170iNSP151..(D,R)..H201807-201910

main88620-0D180iNSP151..D..G201804-201908

main88620-0D190iNSP152;NSP151..RHD..G..A201604-202207

main88620-0D200iNSP150..RHD;NSP150..LHD..GEN..G201604-202207

main88620-0D260iNSP151..TH..G..C201610-202207

main88620-0D270iNSP151..V..F201605-202101

main88620-0D350iNSP151..(G,R,V)..G201804-201908

main88620-0D360iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main88620-0D370iNSP151..D201807-201910

main88620-0D380iNSP151..I202003-202406

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0D430iNCP150..4FC..TH..R..B201304-201603

SINGAPORE SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

main88650-0D430iNCP150..IDN..(D,R)..B201304-201609

main88650-0D430iNCP150..TH..(D,R)..B201304-201603

SINGAPORE & BRUNEI SPEC

main88650-0D430iNCP150..TH..(D,R)..B201304-201603

SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

main88650-0D430iNCP150..TH..(D,R)..B201304-201603

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

main88650-0D450iNCP15#..GCC..C201308-201609

main88650-0D450iNCP151..RHD..G;NCP151..GCC..G..B;NCP150..(GCC,GEN)..B;NCP151..(GCC,GEN)..(D,R)..B201308-201603

LATIN AMERICA SPEC

main88650-0D460iNCP150..TH..G..B201304-201603

SINGAPORE & BRUNEI SPEC

main88650-0D460iNCP150..TH..G..B201304-201603

SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main88650-0D460iNCP150..TH..G..B201304-201603

SINGAPORE SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main88650-0D460iNCP150..IDN..G..B201304-201609

main88650-0D480iNCP150..VN..G201308-201608

main88650-0D500iNCP150..TAIW..(D,R)201404-201604

main88650-0D510iNCP150..TAIW..V201404-201604

main88650-0D650iNSP150,151..PH201604-201812

main88650-0D650iNSP151..TH..R..B201604

SINGAPORE SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

main88650-0D650iNSP151..TH..R..B201604

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

main88650-0D660iNSP151..TH..G..C201604-201712

main88650-0D660iNSP151..TH..(G,V)..B201604

SINGAPORE SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main88650-0D670iNSP151..GEN;NSP150..RHD;NSP150..LHD..GEN..(D,R)201604-201709

LATIN AMERICA SPEC

main88650-0D670iNSP150,151..VN..(D,R)201604-201807

main88650-0D680iNSP151..TAIW..V201604-201807

main88650-0D770iNSP151..CVT..IDN..R;NSP151..5F..IDN..(D,R);NSP150,151..(PH,TH)..(D,R)..(A,D)201708-202207

main88650-0D780iNSP150..E,I;NSP151..R..E201710-202406

main88650-0D790iNSP151..D201807-201910

main88650-0D800iNSP150,151..LHD..CVT..(GEN,VN)..G..(A,E)201710-202207

main88650-0D810iNSP151..I201710-202406

main88650-0D820iNSP151..MA;NSP152..HTWC;NSP151..(IDN,TH)..G..(A,C)201708-202207

main88650-0D830iNSP151..D..G201804-201908

main88650-0D850iNSP151..(G,R,V)..G201804-201908

main88650-0D870iNSP151..(D,R)..H201807-201910

main88650-0D880iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main88650-0DB10iNSP152201911-202207

main88650-0DB20iNSP150..5F..GCC..D202001-202207

88669EHOSE, AIR

main87233-0D010iNSP151..IDN..G201312-201712

main87233-0D070iNSP151..BZ..R201807-201910

XL-PLUS PACKAGE

main87233-0D080iNSP151..(G,R,V)..G201804-201908

main87233-0D090iNSP151..D201807-201910

main87233-0D100iNSP152;NSP150..LHD..GEN..G..A;NSP151..CVT..(GEN,TH,VN)..G..(A,E)201708-202207

main87233-0D170iNSP151..V..F201803-202101

main87233-0D180iNSP151..IDN..G201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main87233-0D200iNSP151..MA201901-202011

main87233-0D210iNSP151..I202003-202406

main88669-0D040iNSP151..TH..(G,V)..B201304-201807

main88669-0D070iNSP151..TAIW..V201404-201802

88897UPIPE, ASPIRATOR

main88897-0D010iNSP150..LHD..GEN..G201304-202207

main88897-0D030iNSP151..V..F201404-202101

main88897-0D040iNSP150,151..GCC..G..C201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main88897-0D040iNSP151..IDN..G201312-201712

main88897-0D080iNSP151..BZ..R201807-201910

XL-PLUS PACKAGE

main88897-0D090iNSP151..(G,R,V)..G201804-201908

main88897-0D100iNSP151..D201807-201910

main88897-0D110iNSP151..MA201901-202011

main88897-0D120iNSP151..I202003-202406

8719387101

main87193-87101

8889952160COVER, EVAPORATOR

main88899-52160

9011906942

main90119-06942

90119T0209

main90119-T0209

9015960613

main90159-60613

9015970003

main90159-70003

90159T0037

main90159-T0037

9017906323

main90179-06323

9046706155

main90467-06155

9167380616

main91673-80616

34 parts on this diagram · 18 diagrams in section
