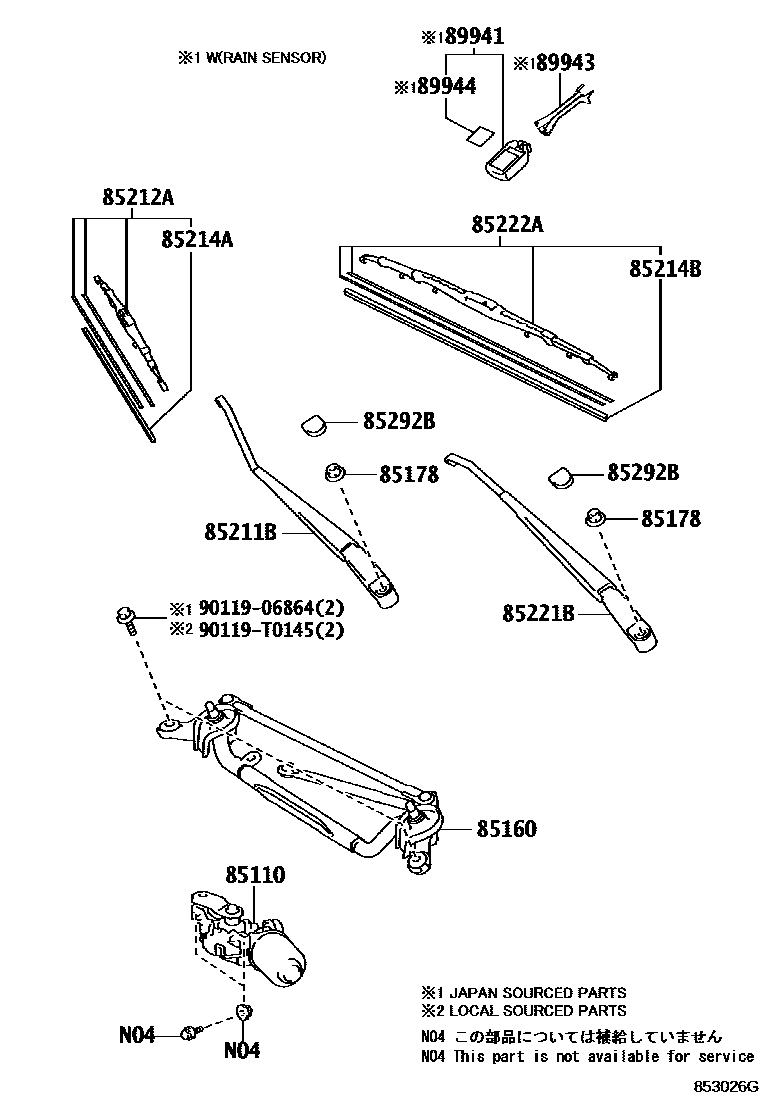

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D150iNSP151..F201404-201811

sub85110-0D151

main85110-0D151iNSP151..F201812-202101

main85110-0D210iNCP15#..GCC..C201307-201609

main85110-0D220iNCP15#..RHD..(GEN,TH)..B201304-201609

main85110-0D250iNSP150,151..VN201604-201911

main85110-0D260iNSP150..5F..GCC..D201911-202207

main85110-0D290iNSP151..IDN..G;NSP151..RHD..(D,R)..C201604-201911

main85110-0D320iNSP151..H201807-201910

main85110-0D330iNSP151..G201804-201908

main85110-0D340iNSP151..5F..D..C;NSP150,152..RHD..CVT..A;NSP151..RHD..(G,R)..(A,C)201911-202406

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D150iNCP150..TAIW201404-202101

main85150-0D200iNSP150..5F..GCC..D..(A,C)201307-202207

main85150-0D210iNSP151..IDN..G;NSP151..RHD..(D,R)..C201304-202406

main85150-0D310iNSP151..H201807-201910

main85150-0D320iNSP151..G201804-201908

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iNSP151..H201807-201910

(J)

main90182-10006iNCP150..TAIW201404-202101

main90182-T0029iNCP150..IDN..B201304-202406

main90182-T0029iNSP151..H201807-201910

(L)

85211BARM, FRONT WIPER, RH

main85211-0D190iNCP150..TAIW201404-202101

main85211-0D200iNCP15#..VN201307-202207

main85211-0D210iNSP150..RHD201304-202406

main85211-0D260iNSP151..H201807-201910

85212ABLADE, FR WIPER, RH

main85212-0D070iNSP152..HTWCB;NSP150,151..RHD..CVT..A201404-202406

main85212-0D081iNSP150..5F..GCC..D..A201404-202207

main85212-0D150iNCP15#..GCC..C201307-202207

main85212-0K050iNCP15#..RHD..B201304-202207

85214ARUBBER, WIPER, RH

main85214-02070iNSP151..CVT..D..C201304-202207

main85214-02180iNSP151..MA201404-202406

main85214-0D121iNCP15#..LHD..(GCC,GEN)..B201404-202207

main85214-0D240iNCP15#..GCC..C201307-202207

85214BRUBBER, WIPER, LH

main85214-02070iNSP150..5F..D..C201307-202207

main85214-02180iNSP151..TAIW201404-202207

main85214-0D121iNCP150..IDN..B201404-202406

main85214-0D240iNSP151..CVT..D..C201304-202207

85221BARM, FRONT WIPER, LH

main85221-0D170iNSP151..TAIW201404-202101

main85221-0D180iNSP151..LHD..(A,C,D,E);NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP150..LHD..(GEN,PH,VN)..(A,D,E)201307-202207

main85221-0D190iNCP150..RHD..C201304-202406

main85221-0D210iNSP151..H201807-201910

85222ABLADE, FR WIPER, LH

main85222-0D071iNSP151..TH..B201404-202406

main85222-0D080iNCP15#..VN201404-202207

main85222-0D150iNCP15#..GCC..C201307-202207

main85222-0D160iNSP151..IDN..G;NSP151..RHD..(D,R)..C201304-202207

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iNSP151..TH..G..C201304-202406

main85292-0D050iNCP150..TAIW201404-202101

89941SENSOR, RAIN

main89941-52010iNSP151..G..G;NSP151..V..(G,H)201804-201910

89943COVER, RAIN SENSOR

main89943-47010iNSP151..G..G;NSP151..V..(G,H)201804-201910

89944TAPE, RAIN SENSOR

main89944-42010iNSP151..G..G;NSP151..V..(G,H)201804-201910

9011906864

main90119-06864

90119T0145

main90119-T0145

15 parts on this diagram · 2 diagrams in section
