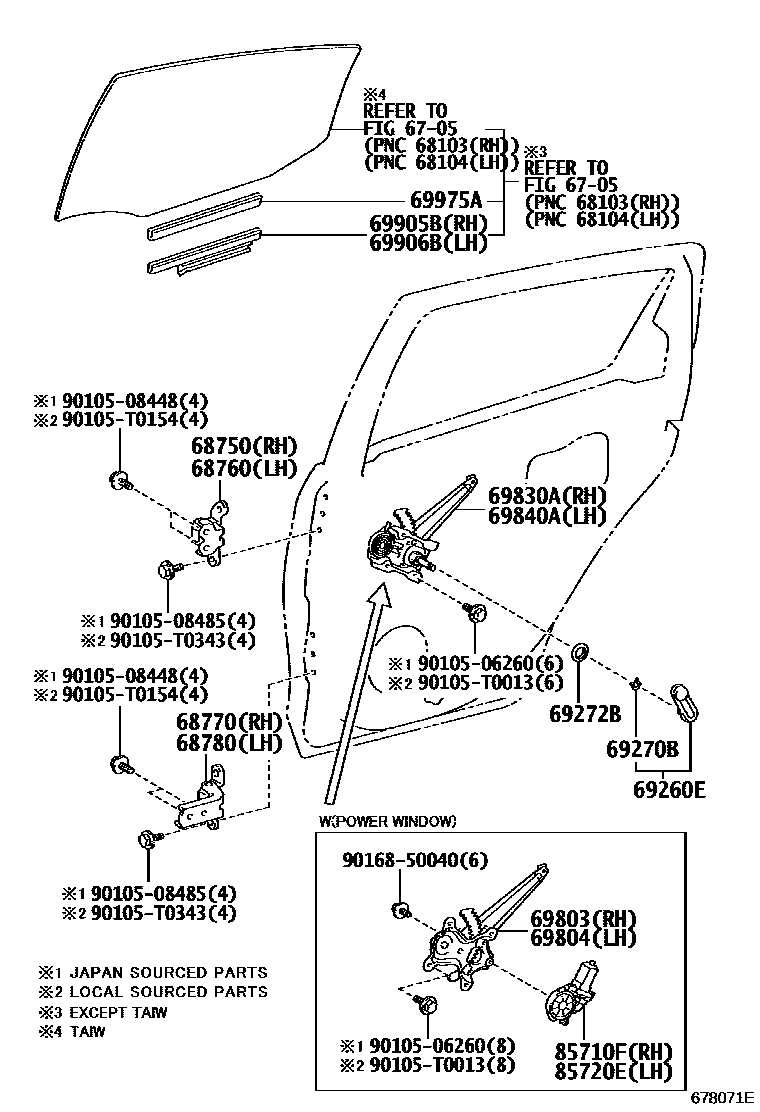

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-02070iNSP151..H201807-201910

main68750-02080iNSP151..G201804-201908

main68750-0D030iNCP15#..C201304-202207

main68750-20121iNSP150,151..I202003-202406

sub68750-20122

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-02070iNSP151..H201807-201910

main68760-02080iNSP151..G201804-201908

main68760-0D030iNCP150..TAIW201304-202207

main68760-20121iNSP150,151..I202003-202406

sub68760-20122

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02070iNSP151..G201804-201908

main68770-0D030iNSP151..MA201304-202207

main68770-0K040iNCP15#..C201312-202207

main68770-52031iNSP150,151..H,I201807-202406

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02070iNSP151..G201804-201908

main68780-0D030iNCP15#..(GCC,GEN,TH)..B201304-202207

main68780-0K040iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main68780-52031iNSP150,151..H,I201807-202406

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-0D060iNSP150..GCC..D..B201304-201712

main69260-0D060-A0iNCP151..GCC..D..B201308-201709

J-LO PACKAGE(FOR LATIN AMERICA),IVORY,TRIM0#

main69260-0D060-C0iNCP150..IDN..D..B201308-201709

BLACK,TRIM2#

main69260-0D080-A0iNSP150..D..C201402-202207

IVORY,TRIM0#

main69260-0D080-C0iNCP15#..(GCC,IDN)..D..C201312-202207

BLACK,TRIM2#

main69260-0K010-A0iNSP150..5F..GCC..D..A201801-202207

IVORY,TRIM0#

main69260-0K010-C0iNSP150..5F..GCC..D..A201801-202207

BLACK,TRIM2#

main69260-0D070-C0iNSP150..5F..D..D201807-201910

LIMO PACKAGE,BLACK,TRIM2#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iNCP150..IDN..D..B201304-202207

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-0D050iNSP150..5F..GCC..D..A201304-202207

main69268-0D060iNCP15#..(GCC,IDN)..D..C201312-202207

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0D160iNCP150..IDN..(G,R)..B201304-201812

main69803-0D180iNSP151..TAIW201404-201802

main69803-0D200iNCP15#..(G,R)..C;NCP150..TH..D..C201312-201712

main69803-0D230iNSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..GCC..(G,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,VN)..(A,D,E)201708-201911

main69803-0D240iNSP151..F201803-202101

main69803-0D250iNSP150,151..(G,R)..C201801-202207

main69803-0D260iNSP151..G201804-201908

main69803-0D280iNSP150,151..I202003-202406

main69803-0D310iNSP150..5F..G..A201911-202207

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0D160iNSP150,151..PH201304-201812

main69804-0D180iNSP151..TAIW201404-201802

main69804-0D200iNSP151..TH..G..C201312-201712

main69804-0D230iNSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..GCC..(G,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,VN)..(A,D,E)201708-201911

main69804-0D240iNSP151..F201803-202101

main69804-0D250iNSP150,151..(G,R)..C201801-202207

main69804-0D260iNSP151..G201804-201908

main69804-0D280iNSP150,151..I202003-202406

main69804-0D310iNSP151..TH..A;NSP150..GCC..R..A;NSP150..CVT..G..A;NSP150,152..(GEN,TH,VN)..(D,R);NSP151..(GCC,GEN,MA,VN)..(A,B,E)201911-202207

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-0D280iNCP150..IDN..D..B201304-201712

main69830-0D310iNSP150,151..(GCC,IDN)..D..C201312-201712

main69830-0D350iNSP150..5F..GCC..D..A201801-202207

main69830-0D380iNSP150..CVT..D..C201801-202207

main69830-0D410iNSP151..D..H;NSP151..AGT..R201807-201910

main69830-0D420iNSP151..AGT..G;NSP151..(BZ,GEN)..(G,R,V)..H201807-201910

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-0D280iNSP150..GCC..D..B201304-201712

main69840-0D310iNCP15#..(GCC,IDN)..D..C201312-201712

main69840-0D350iNSP150..CVT..GCC..D..A201801-202207

main69840-0D380iNSP151..5F..D..C201801-202207

main69840-0D410iNSP151..D..H;NSP151..AGT..R201807-201910

main69840-0D420iNSP151..AGT..G;NSP151..(BZ,GEN)..(G,R,V)..H201807-201910

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0D050iNSP151..G201804-201908

main69905-0D060iNSP151..H201807-201910

main69905-0D130iNSP151..F201304-202406

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0D050iNSP151..G201804-201908

main69906-0D100iNSP151..H201807-201910

main69906-0D130iNCP15#..C201304-202406

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D040iNSP151..G201804-201908

main69975-0D100iNSP151..H201807-201910

main69975-0D130iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN201304-202406

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0D260iNSP151..TH..B201304-201812

main85720-0D300iNSP151..TAIW201404-201802

main85720-0D460iNSP151..G201804-201908

main85720-0D520iNSP150..D;NSP152..HTWC;NSP150..(G,R)..C;NSP151..(GCC,IDN,PH)..(G,R)..(C,D)201708-202207

main85720-0D531iNSP151..F201803-202101

main85720-0D580iNSP150..5F..G..A201911-202207

main85720-52290iNSP150,151..I202003-202406

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0D220iNSP151..MA201304-201812

main85710-0D300iNCP150..TAIW201404-201802

main85710-0D450iNSP151..G201804-201908

main85710-0D520iNSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..(GEN,VN)..(A,E);NSP150,151..(GCC,TH,VN)..(G,R)..(A,E)201708-202207

main85710-0D530iNSP151..F201803-202101

main85710-0D580iNSP150..5F..G..A201911-202207

main85710-52320iNSP150,151..I202003-202406

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90105T0343

main90105-T0343

9016850040

main90168-50040

24 parts on this diagram · 2 diagrams in section
