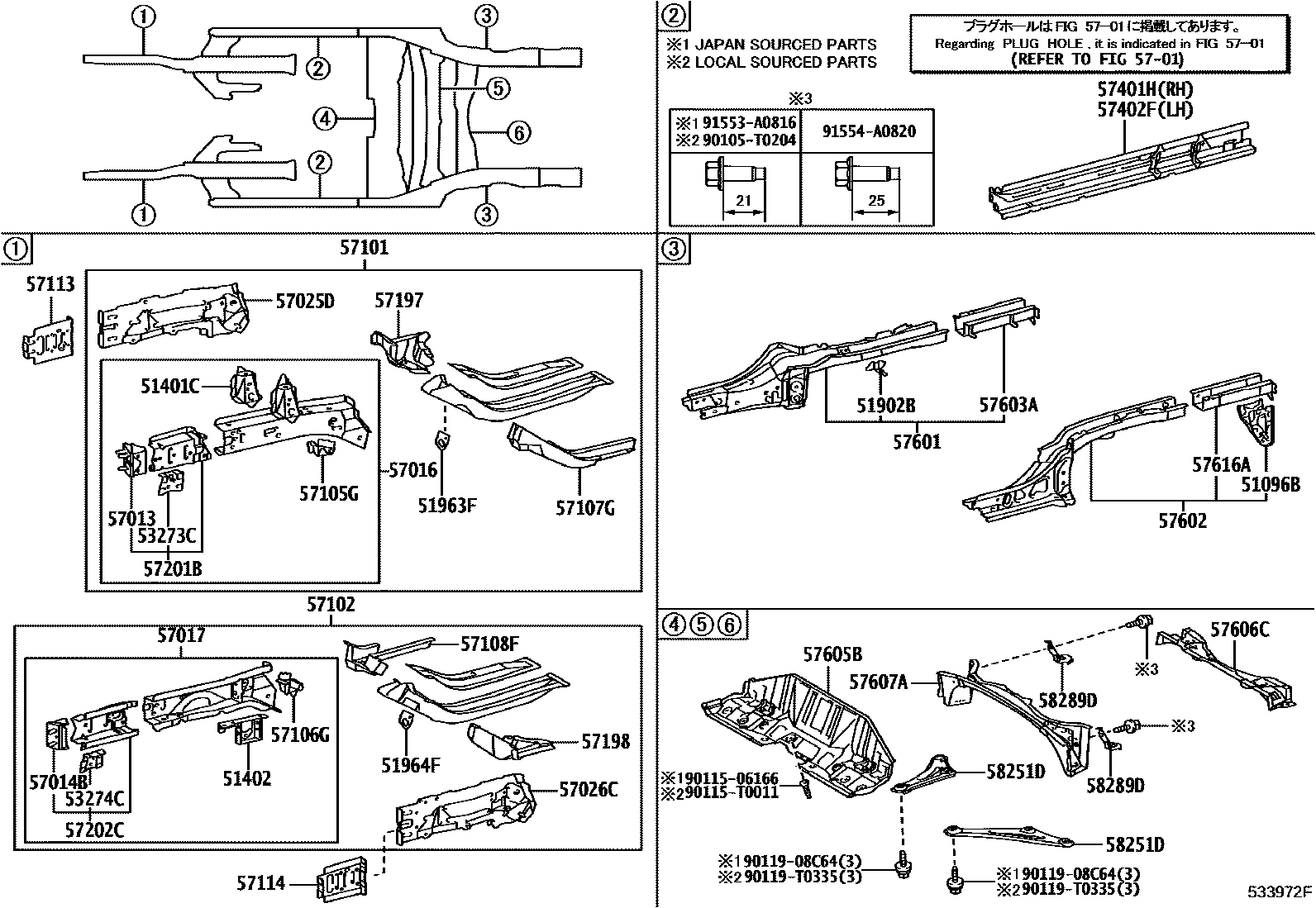

FLOOR SIDE MEMBER

0001 1 0002 1

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0D040iNCP15#..(GCC,GEN,TH)..B201304-202207

main51096-0D070iNCP150..TAIW201404-202101

main51096-0D080iNSP151..G201804-201908

main51096-0D090iNSP151..H201807-201910

main51096-0D100iNSP150,151..I202003-202406

51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0D020iNSP150,151..VN201304-202207

main51401-0D040iNSP151..TH..G..C201312-202207

main51401-0D050iNSP151..G201804-201908

main51401-0D060iNSP151..H201807-201910

main51401-0D070iNSP150,151..I202003-202406

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0D020iNSP150,151..VN201304-202406

main51402-0D030iNSP151..TH..G..C201312-202207

main51402-0D040iNSP151..G201804-201908

main51402-0D050iNSP151..H201807-201910

51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2

main51902-0D020iNCP150..IDN..B201304-202406

main51902-0D030iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201312-202207

main51902-0D050iNSP151..TAIW201404-202101

main51902-0D060iNSP151..G201804-201908

main51902-0D070iNSP151..H201807-201910

51963FHOOK, TRANSPORT

main51963-0D030iNSP151..TH..B201304-202406

main51963-0D130iNCP15#..C201312-201712

main51963-0D150iNSP151..TAIW201404-202101

51964FHOOK, TRANSPORT, LH

main51963-0D030iNCP150..IDN..B201304-202406

main51963-0D130iNSP151..TH..G..C201312-201712

main51963-0D150iNSP151..TAIW201404-202101

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-0D070iNCP15#..PH201304-202406

main53273-0D090iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main53273-0D100iNSP151..TAIW201404-202101

main53273-0D140iNSP151..G201804-201908

main53273-0D150iNSP151..H201807-201910

main53273-0D190iNSP150,151..D201807-201910

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0D040iNCP15#..PH201304-202406

main53274-0D060iNCP15#..C201312-202207

main53274-0D070iNCP150..TAIW201404-202101

main53274-0D090iNSP151..G201804-201908

main53274-0D100iNSP151..H201807-201910

main53274-0D110iNSP150,151..D201807-201910

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D060iNCP150..IDN..B201304-201701

sub57013-0D061

main57013-0D061iNSP150,151..VN201702-202406

main57013-0D080iNSP15#..C201312-201701

sub57013-0D081

main57013-0D081iNSP150..5F..D..C;NSP151..CVT..D..C201702-202207

main57013-0D090iNCP150..TAIW201404-201701

sub57013-0D091

main57013-0D091iNSP151..F201702-202101

main57013-0D100iNSP151..G201804-201908

main57013-0D110iNSP151..H201807-201910

main57013-0D120iNSP150,151..D201807-201910

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D050iNCP15#..PH201304-201701

sub57014-0D051

main57014-0D051iNSP151..MA201702-202406

main57014-0D070iNCP15#..C201312-201701

sub57014-0D071

main57014-0D071iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201702-202207

main57014-0D080iNCP150..TAIW201404-201701

sub57014-0D081

main57014-0D081iNSP151..TAIW201702-202101

main57014-0D091iNSP151..G201804-201908

main57014-0D100iNSP151..H201807-201910

main57014-0D110iNSP150,151..D201807-201910

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D110iNSP150,151..PH201304-202207

main57016-0D130iNCP15#..C201312-202207

main57016-0D160iNCP150..TAIW201404-202101

main57016-0D170iNSP151..G201804-201908

sub57016-0D110

main57016-0D180iNSP151..H201807-201910

main57016-0D190iNSP150,151..I202003-202406

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D180iNCP150..IDN..B201304-202207

main57017-0D200iNCP15#..C201312-202207

main57017-0D230iNSP151..TAIW201404-202101

main57017-0D270iNSP151..G201804-201908

sub57017-0D180

main57017-0D280iNSP151..H201807-201910

main57017-0D290iNSP150,151..I202003-202406

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D030iNSP150,151..GEN201304-202406

main57025-0D060iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main57025-0D090iNSP151..F201404-202101

main57025-0D100iNSP151..MA201310-202011

main57025-0D130iNSP151..G201804-201908

sub57025-0D030

main57025-0D140iNSP151..H201807-201910

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D030iNCP150..IDN..B201304-202406

main57026-0D060iNCP15#..C201312-202207

main57026-0D090iNCP150..TAIW201404-202101

main57026-0D100iNCP150..MA201310-202011

main57026-0D130iNSP151..G201804-201908

sub57026-0D030

main57026-0D150iNSP151..H201807-201910

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0D140iNCP15#..(GCC,GEN,TH)..B201304-202207

main57101-0D180iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main57101-0D230iNCP150..TAIW201404-202101

main57101-0D250iNSP151..G201804-201908

sub57101-0D140

main57101-0D260iNSP151..H201807-201910

main57101-0D270iNSP150,151..I202003-202406

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0D200iNSP150,151..VN201304-202207

main57102-0D240iNCP15#..C201312-202207

main57102-0D280iNSP151..F201404-202101

main57102-0D320iNSP151..G201804-201908

sub57102-0D200

main57102-0D330iNSP151..H201807-201910

main57102-0D360iNSP150,151..I202003-202406

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-0D040iNCP150..IDN..B201304-202406

main57105-0D060iNSP151..TH..G..C201312-202207

main57105-0D070iNSP151..G201804-201908

main57105-0D080iNSP151..H201807-201910

57106GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT LH

main57106-0D020iNCP150..IDN..B201304-202406

main57106-0D040iNSP151..TH..G..C201312-202207

main57106-0D050iNSP151..G201804-201908

main57106-0D060iNSP151..H201807-201910

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-0D060iNCP150..IDN..B201304-202406

main57107-0D090iNSP151..TH..G..C201312-201712

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-0D060iNSP150,151..PH201304-202406

main57108-0D080iNCP15#..C201312-201712

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0D030iNSP151..MA201304-202207

main57113-0D050iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main57113-0D060iNSP151..F201404-202101

main57113-0D070iNSP150,151..PH201407-201910

main57113-0D080iNSP150,151..I202003-202406

main57113-0D120iNSP151..G201804-201908

main57113-0D130iNSP151..H201807-201910

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0D030iNSP151..TH..B201304-202207

main57114-0D050iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main57114-0D060iNSP151..TAIW201404-202101

main57114-0D070iNSP150,151..D201407-201910

main57114-0D080iNSP150,151..I202003-202406

main57114-0D120iNSP151..G201804-201908

main57114-0D130iNSP151..H201807-201910

57197BOX, TORQUE, FRONT RH

main57197-0D040iNCP15#..(GCC,GEN,TH)..B201304-202406

main57197-0D060iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main57197-0D070iNSP151..G201804-201908

main57197-0D080iNSP151..H201807-201910

57198BOX, TORQUE, FRONT LH

main57198-0D040iNSP150,151..GEN201304-202406

main57198-0D060iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main57198-0D070iNSP151..G201804-201908

main57198-0D080iNSP151..H201807-201910

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-0D020iNSP15#..(GCC,GEN,MA,PH,TH,VN)..B201304-201701

sub57201-0D021

main57201-0D021iNSP150,151..PH201702-202406

main57201-0D040iNSP15#..C201312-201701

sub57201-0D041

main57201-0D041iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201702-202207

main57201-0D050iNSP151..TAIW201404-201701

sub57201-0D051

main57201-0D051iNSP151..TAIW201702-202101

main57201-0D060iNSP151..G201804-201908

main57201-0D070iNSP151..H201807-201910

main57201-0D080iNSP150,151..D201807-201910

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-0D030iNCP15#..MA,VN201304-201701

sub57202-0D031

main57202-0D031iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201702-202406

main57202-0D050iNCP15#..C201312-201701

sub57202-0D051

main57202-0D051iNSP151..TH..G..C201702-202207

main57202-0D060iNCP150..TAIW201404-201701

sub57202-0D061

main57202-0D061iNSP151..TAIW201702-202101

main57202-0D071iNSP151..G201804-201908

main57202-0D080iNSP151..H201807-201910

main57202-0D090iNSP150,151..D201807-201910

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0D190iNSP151..G201804-201908

sub57401-0D240

main57401-0D240iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,TH,VN)..B201304-202207

main57401-0D250iNSP151..F201404-202101

main57401-0D260iNCP15#,NSP150,151..C201312-202207

main57401-0D270iNSP150,151..D201407-201910

main57401-0D280iNSP150,151..I202003-202406

main57401-0D290iNSP151..MA201901-202011

main57401-0D340iNSP151..H201807-201910

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0D220iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)201304-202207

main57402-0D230iNSP151..F201404-202101

main57402-0D240iNCP15#,NSP150,151..C201312-202207

main57402-0D250iNSP150,151..I202003-202406

main57402-0D260iNSP151..MA201901-202011

main57402-0D270iNCP15#,NSP150,151..PH201407-201910

main57402-0D350iNSP151..G201804-201908

sub57402-0D220

main57402-0D360iNSP151..H201807-201910

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D220iNSP151..G201804-201908

sub57601-0D250

main57601-0D250iNCP150..IDN..B201304-202207

main57601-0D320iNCP15#..C201312-202207

sub57601-0D250

main57601-0D370iNSP151..F201404-202101

main57601-0D430iNSP151..H201807-201910

main57601-0D470iNSP150,151..I202003-202406

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D200iNSP150,151..GEN201304-202207

main57602-0D260iNCP15#..C201312-202207

sub57602-0D200

main57602-0D310iNSP151..TAIW201404-202101

main57602-0D360iNSP151..G201804-201908

sub57602-0D200

main57602-0D380iNSP151..H201807-201910

main57602-0D410iNSP150,151..I202003-202406

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0D100iNSP151..TH..B201304-202207

main57603-0D130iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main57603-0D150iNSP151..F201404-202101

main57603-0D200iNSP151..G201804-201908

sub57603-0D100

main57603-0D220iNSP151..H201807-201910

main57603-0D250iNSP150,151..I202003-202406

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D120iNCP15#..(GCC,GEN,TH)..B201304-202207

main57605-0D150iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201312-202207

main57605-0D160iNSP151..TAIW201404-202101

main57605-0D190iNSP150,151..I202003-202406

main57605-0D230iNSP151..G201804-201908

main57605-0D240iNSP151..H201807-201910

main57605-0D270iNSP151..MA201901-202011

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D060iNSP150..5F..G..A;NSP150..5F..GCC..D..A201304-202207

main57606-0D110iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main57606-0D130iNSP151..G201804-201908

main57606-0D140iNSP151..H201807-201910

main57606-0D150iNSP150,151..I202003-202406

main57606-0D160iNSP151..MA201901-202011

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0D040iNCP15#..(GCC,GEN,TH)..B201304-202207

main57607-0D060iNCP15#..C201312-202207

main57607-0D070iNSP151..TAIW201404-202101

main57607-0D080iNSP151..G201804-201908

main57607-0D090iNSP151..H201807-201910

main57607-0D100iNSP150,151..I202003-202406

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0D080iNSP150,151..PH201304-202207

main57616-0D110iNCP15#..C201312-202207

main57616-0D130iNCP150..TAIW201404-202101

main57616-0D160iNSP151..G201804-201908

main57616-0D180iNSP151..H201807-201910

main57616-0D210iNSP150,151..I202003-202406

58251DBRACE, FLOOR PANEL, FRONT

main58251-0D060iNSP151..G201804-201908

RH

main58251-0D090iNCP15#..(GCC,GEN,TH)..B201304-202207

RH

main58251-0D110iNCP150..MA201310-202011

RH

main58251-0D120iNSP151..F201404-202101

RH

main58251-0D130iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

RH

main58251-0D150iNSP151..H201807-201910

RH

main58251-0D160iNSP150,151..E201808-201912

RH

main58251-0D170iNSP150,151..I202012-202406

RH

main58251-0D180iNSP150,151..D201807-201910

RH

main58252-0D070iNSP151..TH..B201304-202207

LH

main58252-0D090iNSP151..MA201310-202011

LH

main58252-0D100iNSP151..F201404-202101

LH

main58252-0D110iNSP151..TH..G..C201312-202207

LH

main58252-0D130iNSP151..G201804-201908

LH

main58252-0D140iNSP151..H201807-201910

LH

main58252-0D150iNSP150,151..E201808-201912

LH

main58252-0D170iNSP150,151..I202012-202406

LH

main58252-0D180iNSP150,151..D201807-201910

LH

58289DBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0D090iNSP151..G,H201804-201910

RH

main58289-0D110iNSP151..TAIW201404-202101

RH

main58289-0D120iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C201304-202406

RH

main58289-0D140iNCP15#..PH201307-201910

RH

main58299-0D090iNSP151..G,H201804-201910

LH

main58299-0D110iNCP150..TAIW201404-202101

LH

main58299-0D120iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C201304-202406

LH

main58299-0D140iNCP15#..PH201307-201910

LH

90105T0204

main90105-T0204

9011506166

main90115-06166

90115T0011

main90115-T0011

9011908C64

main90119-08C64

90119T0335

main90119-T0335

91553A0816

main91553-A0816

91554A0820

main91554-A0820

45 parts on this diagram · 2 diagrams in section
