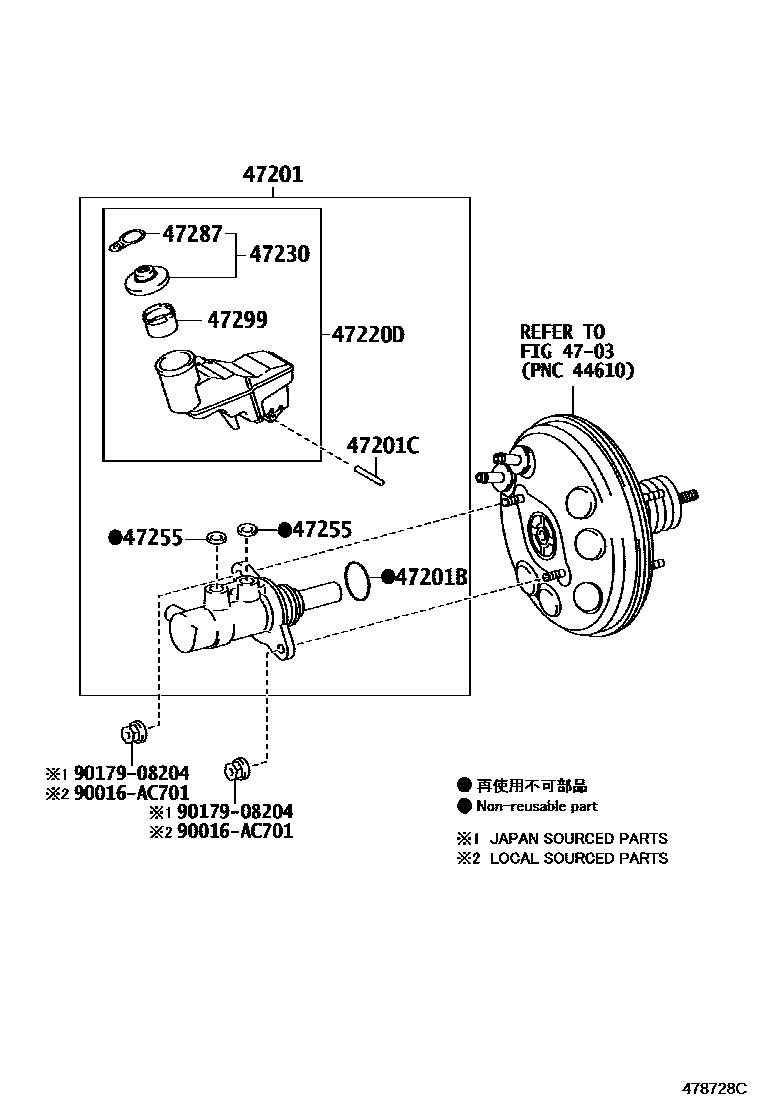

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09870iNSP151..CVT..H201807-201910

sub47201-09B50

main47201-09880iNSP151..6F..H201807-201910

sub47201-09B60

main47201-0D410iNSP150..RHD..CVT201304-202207

main47201-0D410iNCP150..TH..R..C201501-201609

BRUNEI SPEC

main47201-0D420iNCP150..5F..MA201304-201609

main47201-0D430iNCP150..4FC..TH..R..B201501-201603

SINGAPORE SPEC

main47201-0D430iNCP150..TH..R..C201304-201609

main47201-0D440iNSP150..5F..G201304-202108

main47201-0D450iNCP15#..4FC..GCC..C201307-201609

main47201-0D460iNCP15#..LHD..5F..(GCC,GEN)..B201307-201609

main47201-0D470iNCP150..VN..G201307-201608

main47201-0D480iNCP150..VN..R201307-201608

main47201-0D490iNCP150..TAIW201404-201604

main47201-0D610iNSP152..HTWC;NSP150,151..CVT..I;NSP151..CVT..MA..(D,R)201604-202406

main47201-0D610iNSP150..RHD..R201710-202207

LATIN AMERICA SPEC

main47201-0D620iNSP151..TH..G..A;NSP151..MA..(G,V)201604-202207

main47201-0D630iNSP151..CVT..D..A;NSP150..LHD..GEN..G201710-202207

CHILE SPEC

main47201-0D630iNSP151..CVT..GEN..R201604-201709

LATIN AMERICA SPEC&ECUADOR SPEC&VSC-WITH

main47201-0D630iNSP150,151..CVT..GCC..B201604-202207

main47201-0D630iNSP151..CVT..D..A;NSP150..LHD..GEN..G201710-202207

LATIN AMERICA SPEC

main47201-0D630iNSP151..CVT..D..A;NSP150..LHD..GEN..G201710-202207

PERU SPEC

main47201-0D630iNSP151..CVT..D..A;NSP150..LHD..GEN..G201710-202207

BAHAMA SPEC

main47201-0D630iNSP151..CVT..D..A;NSP150..LHD..GEN..G201710-202109

BOLIVIA SPEC

main47201-0D630iNSP151..CVT..D..A202009-202207

COSTA RICA SPEC

main47201-0D630iNSP150..LHD..CVT..GEN..(D,R);NSP151..LHD..CVT..GEN..(G,R)..A201710-202207

ECUADOR SPEC

main47201-0D630iNSP150..LHD..CVT..GEN..(D,R);NSP151..LHD..CVT..GEN..(G,R)..A201710-202207

MEXICO SPEC

main47201-0D640iNSP151..5F..D..A201710-202207

PERU SPEC

main47201-0D640iNSP151..5F..(D,R)..A201710-202207

LAOS SPEC

main47201-0D640iNSP151..5F..(D,R)..A201710-202207

CHILE SPEC

main47201-0D640iNSP151..5F..(D,R)..A201710-202207

ECUADOR SPEC

main47201-0D640iNSP151..5F..(D,R)..A201710-202207

MEXICO SPEC

main47201-0D640iNSP150,151..LHD..5F..GEN..(G,R)201710-202207

LATIN AMERICA SPEC

main47201-0D640iNSP151..5F..R..A202009-202207

COSTA RICA SPEC

main47201-0D640iNSP150..5F..GCC..R..A;NSP150,151..5F..(D,R)..(D,E)201604-202207

main47201-0D640iNSP151..5F..GEN..D201604-201709

LATIN AMERICA SPEC&ECUADOR SPEC&VSC-WITH

main47201-0D640iNSP151..5F..A201710-202109

BOLIVIA SPEC

main47201-0D640iNSP151..5F..A201710-202109

ASEAN GENERAL SPEC

main47201-0D650iNSP150..VN201604-202207

main47201-0D660iNSP151..CVT..IDN..(D,R)201610-201712

BRUNEI SPEC

main47201-0D670iNSP151..5F..(D,R)..C201610-201712

main47201-0D680iNSP151..TH..G..C201610-201712

main47201-0D690iNSP151..5F..G..C201610-201712

main47201-0D700iNSP150,151..CVT..GCC..C201610-201911

main47201-0D701iNSP150,151..CVT..GCC..C201911-202207

main47201-0D710iNSP150..5F..C201610-201911

main47201-0D711iNSP150..5F..D..C201911-202207

main47201-0D720iNSP151..TAIW201605-201802

main47201-0D740iNSP151..LHD..CVT..GEN..A;NSP150..LHD..CVT..GEN..(D,R)201604-202207

main47201-0D760iNSP151..CVT..PH201604-202207

main47201-0D770iNSP151..5F..VN201607-201807

main47201-0D810iNSP150,151..5F..(B,I)201608-202406

main47201-0D820iNSP150..LHD..GEN..G201710-202207

LAOS SPEC

main47201-0D820iNSP150..LHD..GEN..G201710-202207

ASEAN GENERAL SPEC

main47201-0D820iNSP151..CVT..(D,E)201807-201912

main47201-0D830iNSP151..CVT..(D,R)..G201804-201908

main47201-0D840iNSP151..6F..(D,R)..G201804-201908

main47201-0D870iNSP151..CVT..G..G201804-201908

main47201-0D880iNSP151..6F..G..G201804-201908

main47201-0D890iNSP151..CVT..V..G201804-201908

main47201-0DA00iNSP151..6F..V201804-201908

main47201-0DA10iNSP151..CVT..IDN..(D,R)201801-201911

main47201-0DA11iNSP151..CVT..D..C201911-202207

main47201-0DA20iNSP151..5F..(D,R)..C201801-201911

main47201-0DA21iNSP151..5F..(D,R)..C201911-202207

main47201-0DA30iNSP151..CVT..IDN..R201801-201911

BRUNEI SPEC

main47201-0DA31iNSP151..CVT..IDN..G201911-202207

BRUNEI SPEC

main47201-0DA40iNSP151..5F..G..C201801-201911

main47201-0DA41iNSP151..5F..G..C201911-202207

main47201-0DA50iNSP151..F201803-202101

main47201-0DB00iNSP151..5F..D201807-201910

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iNSP151..G201804-201908

main90015-AH002iNSP151..TAIW201404-202101

main90016-AH903iNCP15#..PH201304-202406

47201CRING PIN, BRAKE MASTER CYLINDER

main90015-AE401iNSP151..G,H201804-201910

main90029-15803iNSP151..TH..G..C201304-202406

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D220iNSP152..HTWC;NSP150,151..CVT..(MA,PKN)201304-202406

main47220-0D230iNCP150..5F..C201304-202406

main47220-0D240iNCP15#..4FC..GCC..C201307-201609

main47220-0D250iNCP15#..LHD..5F..(GCC,GEN)..B201307-201609

main47220-0D260iNCP150..TAIW201404-201604

main47220-0D370iNSP150,151..LHD..CVT..GEN201604-202207

main47220-0D380iNSP150,151..5F..PH201604-202207

main47220-0D390iNSP151..CVT..IDN..(G,R)201610-202207

main47220-0D400iNSP151..5F..C201610-202207

main47220-0D410iNSP150,151..CVT..GCC..C201610-202207

main47220-0D420iNSP150..5F..D..C201610-202207

main47220-0D430iNSP151..TAIW201605-201802

main47220-0D450iNSP151..CVT..G201804-201908

main47220-0D460iNSP151..6F..G201804-201908

main47220-0D470iNSP151..F201803-202101

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D140iNSP151..G201804-201908

main47230-0D160iNSP151..H201807-201910

main47230-0D220iNCP151..LHD;NCP151..5F..G;NCP150..GCC,GEN,IDN,MA,PH,TH,VN201304-201505

sub47230-0D221

main47230-0D221iNCP15#..C201505-202406

main47230-0D430iNSP151..TAIW201605-201707

main47230-0D440iNSP151..TAIW201707-202101

main47230-0K060iNCP150..TAIW201404-201604

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09050iNSP151..H201807-201910

main90016-AT001iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN201304-202406

main90016-AT004iNSP150..5F..D..C;NSP151..CVT..D..C201610-202207

main90029-48001iNSP151..F201404-202101

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNCP151..RHD..4FC201505-202406

main47287-20010iNCP150..TAIW201304-201707

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iNSP150,151..VN201304-202406

main47299-0K010iNSP152201911-202207

(L)

main47299-20060iNSP151..F201803-202101

main47299-25010iNSP151..TAIW201404-201802

main47299-25010iNSP152201911-202207

(J)

90016AC701

main90016-AC701

9017908204

main90179-08204

11 parts on this diagram · 3 diagrams in section
