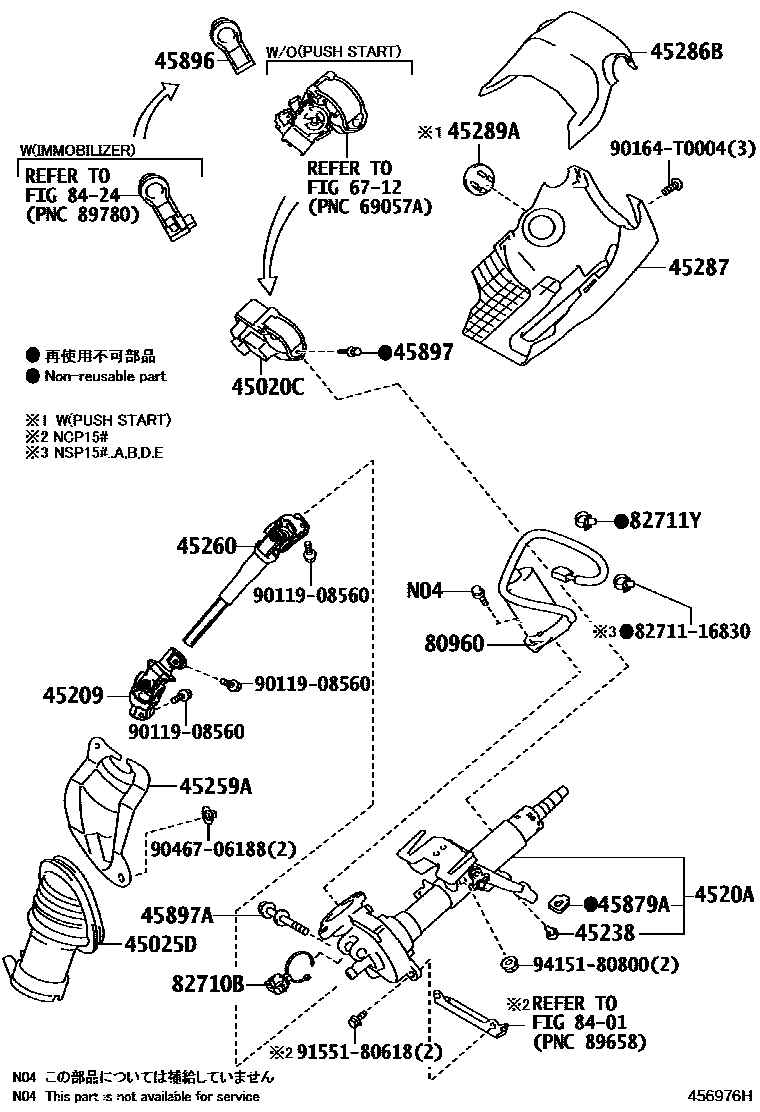

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0K190iNSP150..5F..G..A201708-202406

main45020-0K190iNSP152201708-202207

SPORT PACKAGE

main45020-0K201iNSP151..(G,R,V)..G201804-201908

main45020-0K210iNSP151..IDN..G201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main45020-30B20iNSP151..MA;NCP150..TH..V;NSP151..(TAIW,TH)..V..B;NSP151..(GEN,IDN)..G..(B,C);NCP15#,NSP150..(GEN,IDN,MA,TAIW)..(G,V)..(B,C)201304-202101

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D180iNSP151..TAIW201404-201802

sub45025-0D181

main45025-0D190iNCP150..IDN..B201304-201812

main45025-0D220iNSP151..G201804-201908

main45025-0D230iNSP151..H201807-201910

main45025-0D241iNSP151..RHD..(GEN,MA);NSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP151..LHD..CVT..GEN..A;NSP150..5F..GCC..R..(A,C);NSP151..5F..(GEN,IDN)..(A,C);NSP151..(GCC,PH201708-202207

main45025-0D270iNSP150,151..I202003-202406

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D050iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main45209-0D080iNCP15#..VN201304-202406

main45209-0D090iNCP150..MA201310-202011

main45209-0D100iNCP150..TAIW201404-202101

main45209-0D120iNSP151..G201804-201908

main45209-0D130iNSP151..H201807-201910

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D090iNSP150..RHD..(D,R)..B;NSP151..TH..(D,G,R)..B201604-202008

sub4520A-0D091

main4520A-0D091iNSP151..TH..(D,G,R)..B202009

main4520A-0D100iNCP150..TH..(D,G,R)..B;NCP15#..RHD..(GEN,IDN)..(D,R)..B201304-201603

main4520A-0D110iNCP150..TH..V;NCP15#..RHD..(GEN,IDN)..G..B201304-201603

main4520A-0D120iNCP15#..(GCC,PH,VN)..G..B;NCP15#..LHD..(GCC,GEN,PH,VN)..(D,R)..B201307-201608

main4520A-0D130iNCP15#..GCC..G..B201308-201603

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main4520A-0D160iNCP150..MA..(D,R)201310-201501

main4520A-0D170iNCP150..MA..(G,V)201310-201608

main4520A-0D180iNCP150..TH..G..C;NCP150..RHD..(D,R)..C201312-201609

main4520A-0D190iNCP150..IDN..G..C201312-201609

main4520A-0D200iNCP15#..GCC..C201402-201609

main4520A-0D230iNCP150..TAIW..(D,R)201404-201604

main4520A-0D240iNCP150..TAIW..V201404-201604

main4520A-0D260iNSP151..TH..V;NSP150..RHD..G..B201604-202008

sub4520A-0D261

main4520A-0D261iNSP151..TH..V202009

main4520A-0D270iNSP150,151..(GCC,PH,VN)..G..B;NSP150,151..LHD..(GCC,GEN,PH,VN)..(D,R)..B201604-201807

main4520A-0D280iNSP150,151..LHD..GEN..G201604-201709

main4520A-0D290iNSP151..MA201608-201812

main4520A-0D300iNSP151..TH..G..C;NSP151..RHD..(D,R)..C201610-201712

main4520A-0D310iNSP151..IDN..G201610-201712

main4520A-0D320iNSP150,151..GCC..C201610-201712

main4520A-0D340iNSP151..TAIW..(D,R)201605-201802

main4520A-0D350iNSP151..TAIW..V201605-201802

main4520A-0D370iNSP150,152..PKN,TH;NSP150..RHD..(D,R)..A201708-202008

sub4520A-0D371

main4520A-0D371iNSP150..I202009-202406

main4520A-0D380iNSP150..RHD..G..A;NSP151..RHD..(A,I)201708-202008

SPORT PACKAGE

sub4520A-0D381

main4520A-0D381iNSP152202009-202207

SPORT PACKAGE

main4520A-0D381iNSP151..I202009-202406

main4520A-0D390iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

sub4520A-0D391

main4520A-0D391iNSP150..5F..GCC..D..A202009-202207

main4520A-0D400iNSP150,151..LHD..(GEN,PH,VN)..G..(A,D,E)201710-202008

sub4520A-0D401

main4520A-0D401iNSP150,151..LHD..GEN..G202009-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main4520A-0D410iNSP151..IDN..(D,R)201801-202008

sub4520A-0D411

main4520A-0D411iNSP151..IDN..R;NSP151..5F..D..C202009-202207

main4520A-0D420iNSP151..IDN..G201801-202008

sub4520A-0D421

main4520A-0D421iNSP151..IDN..G202009-202207

main4520A-0D430iNSP150,151..GCC..C201801-202008

sub4520A-0D431

main4520A-0D431iNSP150..5F..D..C202009-202207

main4520A-0D450iNSP151..MA201901-202011

sub4520A-0D451

main4520A-0D460iNSP151..(D,R)..F201803-202101

sub4520A-0D461

main4520A-0D470iNSP151..V..F201803-202101

sub4520A-0D471

main4520A-0D480iNSP151..D..G201804-201908

main4520A-0D490iNSP151..(G,R,V)..G201804-201908

main4520A-0D500iNSP151..AGT..G;NSP151..(D,R)..H201807-201910

main4520A-0D510iNSP151..(BZ,GEN)..(G,V)..H201807-201910

XL-PLUS PACKAGE

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP152..HTWC;NSP150..D,E,I;NSP151..AGT,BZ,IND,MA,PKN;NSP151..(GEN,PH,VN)..(D,E,H)201304-202406

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D150iNCP15#..GCC..C201307-201807

main45259-0D160iNSP151..IDN..G;NSP151..RHD..(D,R)..C201304-201812

main45259-0D170iNCP150..TAIW201404-201802

main45259-0D231iNSP151..G201804-201908

main45259-0D240iNSP151..H201807-201910

main45259-0D250iNSP152..HTWCB;NSP151..5F..IDN;NSP151..CVT..IDN..(G,R);NSP150,151..RHD..CVT..A201708-202406

main45259-0D260iNSP150..5F..GCC..D..(A,C)201710-202207

main45259-0D270iNSP151..F201803-202101

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D150iNCP150,NSP151..RHD..C201312-202009

main45260-0D151iNSP151..5F..D..C;NSP151..IDN..(G,R)202009-202207

main45260-0D200iNSP151..G201804-201908

main45260-0D210iNSP15#..RHD..(A,I)201304-202009

main45260-0D211iNSP15#..RHD..CVT..A202007-202406

main45260-0D220iNSP150,151..LHD..(A,D,E)201307-202009

main45260-0D221iNSP150..5F..GCC..D..A202009-202207

main45260-0D240iNSP150,151..GCC..C201402-202009

main45260-0D241iNSP150..5F..D..C202009-202207

main45260-0D250iNCP150,NSP151..MA201310-202011

main45260-0D260iNCP150,NSP151..TAIW201404-202101

main45260-0D270iNSP151..H201807-201910

45286BCOVER, STEERING COLUMN, UPR

main45286-0D170-C0iNSP151..VN201304-201807

BLACK,TRIM0#,2#

main45286-0D170-C0iNCP150..IDN..D..B201304-201812

BLACK,TRIM2#

main45286-0D170-C0iNCP150..MA..G201603-201712

BLACK,TRIM0#

main45286-0D180iNCP150..TAIW201603-201604

TRIM0#,2#

main45286-0D180-C0iNSP151..TAIW..(D,V)201404-201802

BLACK,TRIM2#

main45286-0D180-C0iNSP151..TAIW..(D,V)201404-201802

BLACK,TRIM0#,2#

main45286-0D240-C0iNSP150,151..I202003-202406

BLACK,TRIM0#

main45286-0D300-C0iNSP151..G201804-201908

BLACK,TRIM0#

main45286-0D310-C0iNSP151..H201807-201905

BLACK,TRIM2#

main45286-0D311-C0iNSP151..H201905-201910

BLACK,TRIM2#

main45286-0D320-C0iNSP150..D,E;NSP151..MA,PH201807-202011

BLACK,TRIM2#

main45286-0D320-C0iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202207

BLACK,TRIM0#,2#

main45286-0D320-C0iNSP151..E201808-201912

BLACK,TRIM0#

main45286-0D330-C0iNSP151..(D,V)..F201803-202101

BLACK,TRIM0#,2#

main45286-0D330-C0iNSP151..(D,V)..F201803-202101

BLACK,TRIM2#

main45286-0D340-C0iNSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

BLACK,TRIM2#

main45286-0D340-C0iNSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

BLACK,TRIM0#,2#

main45286-0D340-C0iNSP151..IDN..G201801-202207

BLACK,TRIM0#

45287COVER, STEERING COLUMN, LWR

main45024-0D030-C0iNSP151..D..C201601-201712

BLACK,TRIM0#,2#

main45024-0D030-C0iNSP150..VN201601-201807

BLACK,TRIM0#

main45024-0D030-C0iNSP151..VN201601-201812

BLACK,TRIM2#

main45024-0D040-C0iNSP151..TAIW..(D,V)201601-201802

BLACK,TRIM2#

main45024-0D040-C0iNSP151..TAIW..(D,V)201601-201802

BLACK,TRIM0#,2#

main45287-0D140-C0iNCP151..C;NCP150..4FC..(GCC,TH)201304-201609

BLACK,TRIM2#

main45287-0D140-C0iNCP150..MA..(D,R)201304-201609

BLACK,TRIM0#,2#

main45287-0D140-C0iNCP150..VN201603-201609

BLACK,TRIM0#

main45287-0D150-C0iNCP150..TAIW..(D,V)201404-201604

BLACK,TRIM0#,2#

main45287-0D150-C0iNCP150..TAIW..(D,V)201404-201601

BLACK,TRIM2#

main45287-0D200-C0iNSP150,151..I202003-202406

BLACK,TRIM0#

main45287-0D270-C0iNSP151..G201804-201908

BLACK,TRIM0#

main45287-0D280-C0iNSP151..H201807-201905

BLACK,TRIM2#

main45287-0D281-C0iNSP151..H201905-201910

BLACK,TRIM2#

main45287-0D290-C0iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202207

BLACK,TRIM0#,2#

main45287-0D290-C0iNSP150..D,E;NSP151..MA,PH201807-202011

BLACK,TRIM2#

main45287-0D290-C0iNSP151..E201808-201912

BLACK,TRIM0#

main45287-0D300-C0iNSP151..R..F201803-202101

BLACK,TRIM2#

main45287-0D300-C0iNSP151..R..F201803-202101

BLACK,TRIM0#,2#

main45287-0D310-C0iNSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

BLACK,TRIM2#

main45287-0D310-C0iNSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

BLACK,TRIM0#,2#

main45287-0D310-C0iNSP151..IDN..G201801-202207

BLACK,TRIM0#

45289ASUPPORT, STEERING COLUMN COVER

main45289-0D020-C0iNSP151..RHD..A;NSP150..CVT..GEN..G..A;NSP151..LHD..GEN..G..A201304-202207

BLACK,TRIM0#,2#

sub45289-0D020

main45289-0D020-C0iNCP150..TH..V201304-202011

BLACK,TRIM2#

sub45289-0D020

main45289-0D020-C0iNCP150..IDN..G201603-201912

BLACK,TRIM0#

sub45289-0D020

main45289-0D080-C0iNCP150..TAIW..V201404-202101

BLACK,TRIM2#

main45289-0D080-C0iNCP150..TAIW..V201603-201604

BLACK,TRIM0#,2#

main45289-0D110-C0iNSP151..(G,R,V)..G201804-201908

BLACK,TRIM0#

main45289-0D120-C0iNSP151..(BZ,GEN)..(G,V)..H201807-201910

BLACK,TRIM2#

main45289-0D120-C0iNSP151..(BZ,GEN)..(G,V)..H201807-201910

XL-PLUS PACKAGE,BLACK,TRIM2#

main45289-0D130-C0iNSP150,151..GCC..G..C201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL),BLACK,TRIM0#,2#

main45289-0D130-C0iNSP151..IDN..G201801-202207

BLACK,TRIM0#

main45289-0D140-C0iNSP151..I202003-202406

BLACK,TRIM0#

45879ACAPSULE, BREAK AWAY

main45879-0D010iNSP151..G201804-201908

main45879-0D030iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201304-202406

main45879-0D040iNSP151..MA201310-202011

main45879-0D060iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201312-202207

main45879-0D070iNCP150,NSP151..TAIW201404-202101

main45879-52010iNSP151..H201807-201910

45896PLATE, IGNITION SWITCH ATTACHMENT

main81871-0D020iNSP151..IDN..D201304-202110

45897BOLT, STEERING LOCK SET

main45897-12020iNCP150..IDN..B201304-202406

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNSP151..MA201304-202406

6712

80960MOTOR ASSY, POWER STEERING

main80960-0D070iNCP150..MA201310-201608

main80960-0D100iNCP15#..RHD..(GEN,IDN,TH)..B201304-201603

main80960-0D110iNCP15#..LHD..(GCC,GEN,PH,VN)..B201307-201608

main80960-0D150iNCP150..RHD..C201312-201609

main80960-0D160iNCP15#..GCC..C201402-201609

main80960-0D170iNCP150..TAIW201404-201604

main80960-0D240iNSP150,151..RHD..(GEN,TH)..B201604

main80960-0D250iNSP151..RHD..C201610-201712

main80960-0D260iNSP151..MA201608-201812

main80960-0D270iNSP151..TAIW201605-201802

main80960-0D280iNSP150,151..LHD..(GCC,GEN,PH,VN)..B201604-201807

main80960-0D290iNSP150,151..GCC..C201610-201712

main80960-0D300iNSP151..H201807-201910

main80960-0D310iNSP151..G201804-201908

main80960-0D320iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202406

main80960-0D340iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main80960-0D360iNSP151..MA201901-202011

main80960-0D370iNSP151..F201803-202101

82710BCLAMP ASSY, WIRING HARNESS

main82710-0D010iNCP151..LHD..B;NSP151..(GCC,GEN,MA,PH,TH,VN)..B;NCP150,NSP150..(GCC,GEN,PH,VN)..B201307

main82710-0D040iNCP150..GCC..C;NCP151,NSP150,151..C201402-201712

main82710-0D050iNCP150..TAIW;NSP151..TAIW..V201404-201802

82711YCLAMP, WIRING HARNESS

main82710-0D070iNSP150,151..(GCC,GEN,PH,TH,VN)..B201604

main82710-0D080iNSP150,151..C201610-201712

main82710-0D090iNSP151..TAIW201605-201802

main82710-0D100iNSP151..MA201608-201812

main82711-1E370iNCP15#..RHD201304-201609

8401

8424

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9011908560

main90119-08560

90164T0004

main90164-T0004

9046706188

main90467-06188

9155180618

main91551-80618

9415180800

main94151-80800

26 parts on this diagram · 5 diagrams in section
