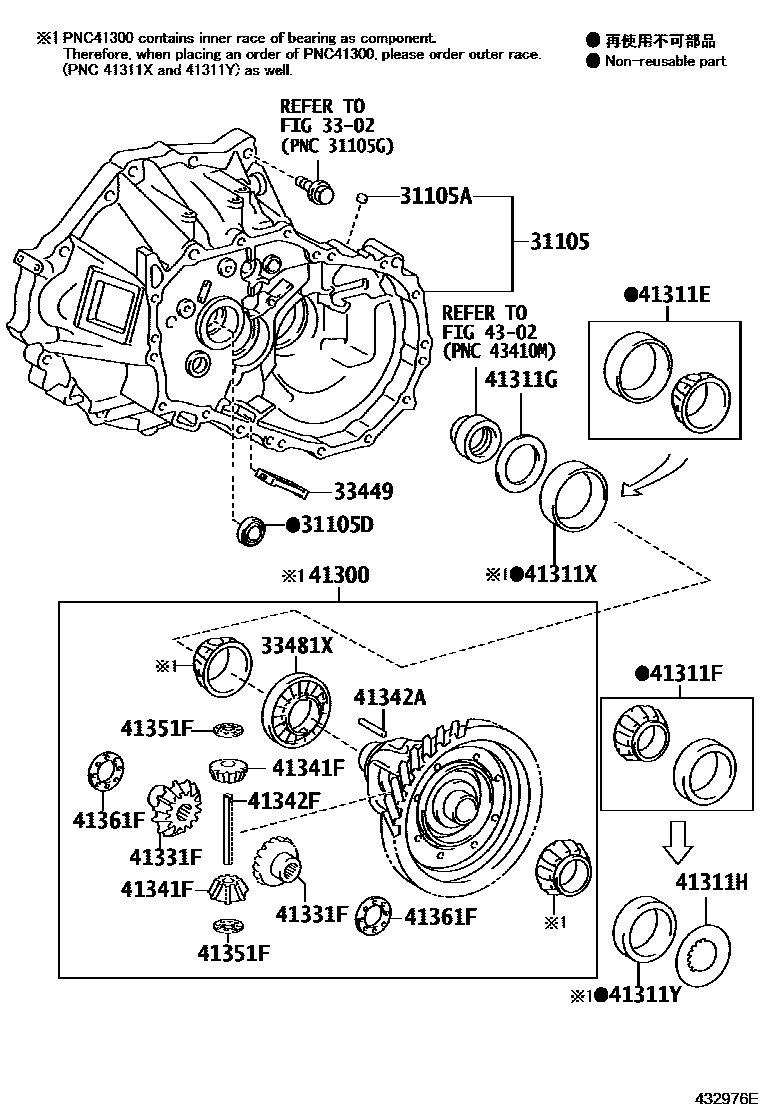

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
(J)
(L)
3302
33449MAGNET, TRANSMISSION
33481XGEAR, SPEEDOMETER DRIVE
41300CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41311CASE, FRONT DIFFERENTIAL
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
(J)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
(L)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
(L)
(J)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.1
T=2.1
T=1.920
T=1.935
T=1.950
T=1.965
T=1.980
T=1.995
T=2.010
T=2.025
T=2.040
T=2.055
T=2.070
T=2.085
T=2.100
T=2.115
T=2.130
T=2.145
T=2.160
T=2.175
T=2.190
T=2.205
T=2.220
T=2.235
T=2.250
T=2.265
T=2.280
T=2.295
T=2.310
T=2.325
T=2.340
T=2.355
T=2.370
T=2.385
T=2.400
T=2.415
T=2.430
T=2.445
T=2.460
T=2.475
T=2.490
T=2.505
T=2.520
T=2.535
T=2.550
T=2.565
T=2.580
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10,MARK AA
T=2.15,MARK BB
T=2.20,MARK CC
T=2.25,MARK DD
T=2.30,MARK EE
T=2.35,MARK FF
T=2.40,MARK GG
T=2.45,MARK HH
T=2.50,MARK JJ
T=2.55,MARK KK
T=2.60,MARK LL
T=2.65,MARK MM
T=2.70,MARK NN
T=2.75,MARK PP
T=2.80,MARK QQ
T=2.85,MARK RR
T=2.90,MARK SS
T=2.95,MARK TT
T=3.00,MARK UU
T=1.80, MARK A
T=1.85, MARK B
T=1.90, MARK C
T=1.95, MARK D
T=2.00, MARK E
T=2.05, MARK F
T=2.08, MARK G
T=2.11, MARK H
T=2.14, MARK J
T=2.17, MARK K
T=2.20, MARK L
T=2.23, MARK M
T=2.26, MARK N
T=2.29, MARK P
T=2.32, MARK Q
T=2.35, MARK R
T=2.40, MARK S
T=2.45, MARK T
T=2.50, MARK U
T=2.55, MARK V
T=2.60, MARK W
T=2.65, MARK X
T=2.70, MARK Y
T=2.100, MARK 10
T=2.125, MARK 11
T=2.150, MARK 12
T=2.175, MARK 13
T=2.200, MARK 14
T=2.225, MARK 15
T=2.250, MARK 16
T=2.275, MARK 17
T=2.300, MARK 18
T=2.325, MARK 19
T=2.350, MARK 20
T=2.375, MARK 21
T=2.400, MARK 22
T=2.425, MARK 23
T=2.450, MARK 24
T=2.475, MARK 25
T=2.500, MARK 26
T=2.525, MARK 27
T=2.550, MARK 28
T=2.575, MARK 29
T=2.600, MARK 30
T=2.625, MARK 31
T=2.650, MARK 32
T=2.675, MARK 33
T=2.700, MARK 34
T=2.725, MARK 35
T=2.750, MARK 36
T=2.775, MARK 37
T=2.800, MARK 38
T=2.825, MARK 39
T=2.850, MARK 40
41311XOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRONT)
41311YOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=0.90,MARK 19
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
4302
21 parts on this diagram · 6 diagrams in section
