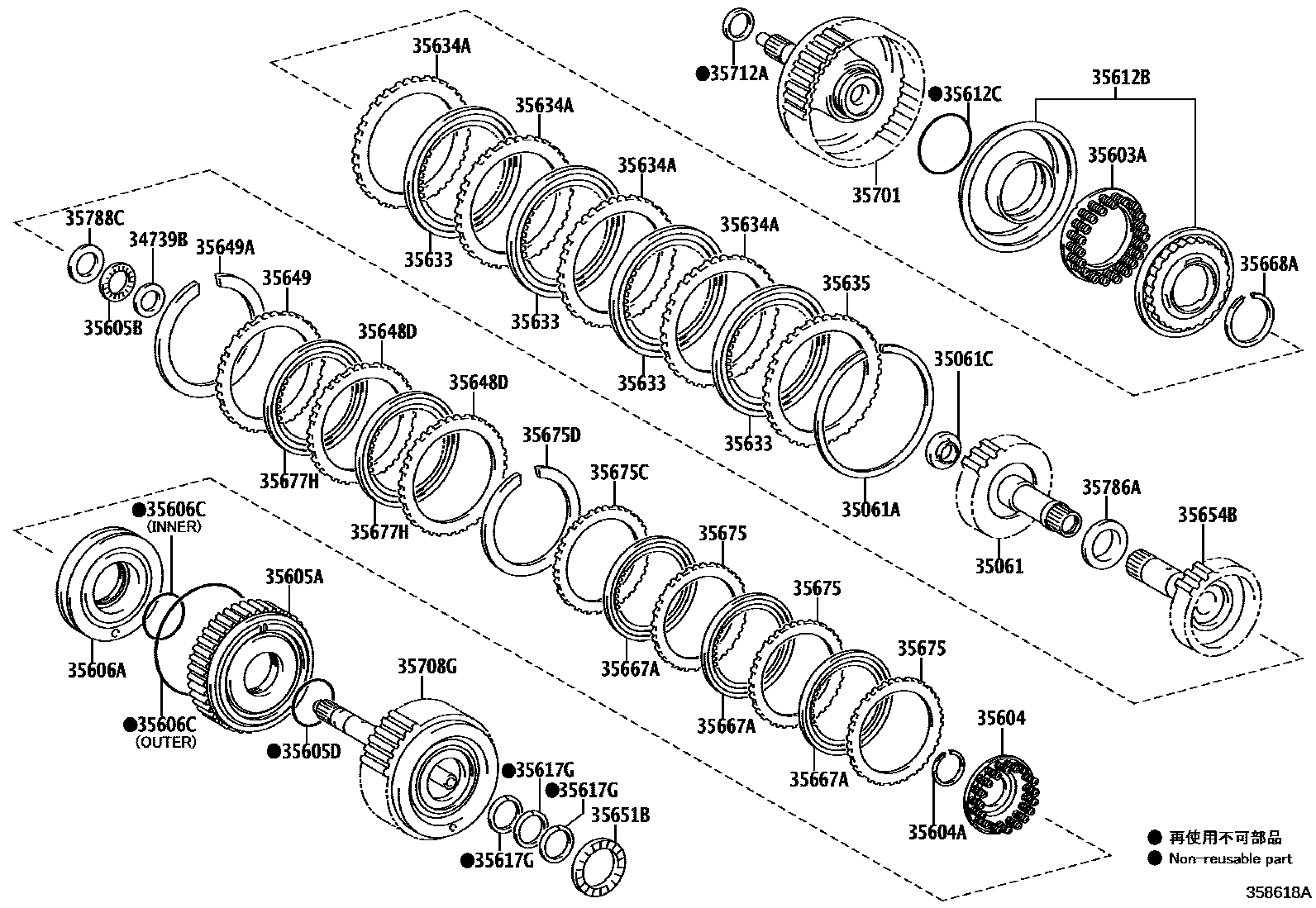

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34739BRACE, THRUST BEARING(FOR C2 HUB)
35061HUB SUB-ASSY, FORWARD CLUTCH
35061ARING, HOLE SNAP(FOR FORWARD CLUTCH FLANGE)
35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604ARING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON)
35605ADRUM SUB-ASSY, DIRECT CLUTCH
NOK
KOYO
35605BBEARING, THRUST NEEDLE ROLLER
35605DRING, O(FOR DIRECT CLUTCH DRUM)
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
INNER
OUTER
OUTER
OUTER
35612BPISTON, FORWARD CLUTCH
35612CRING, O(FOR FORWARD CLUTCH PISTON)
35617GRING, CLUTCH DRUM OIL SEAL
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
T=1.9
35635FLANGE, FORWARD CLUTCH
T=3.0,MARK 1
T=3.2,MARK 2
T=3.4,MARK 3
T=3.6,MARK 4
T=3.0,NO MARK
T=3.2,MARK 1
T=3.4,MARK 2
T=3.6,MARK 3
T=3.1,MARK 5
T=3.3,MARK 6
T=3.5,MARK 7
35648DPLATE, CLUTCH, NO.3
35649FLANGE, REVERSE CLUTCH
T=3.0,MARK 1
T=3.0,NO MARK
T=3.2,MARK 1
T=3.4,MARK 2
T=3.6,MARK 3
T=3.2,MARK 2
T=3.4,MARK 3
T=3.6.MARK 4
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35651BBEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM)
BROWN
BLACK
35654BHUB, DIRECT CLUTCH
35667ADISK, DIRECT CLUTCH
35668BALANCER, CLUTCH, NO.1
35668ARING, SNAP(FOR CLUTCH BALANCER)
35675FLANGE, REAR CLUTCH
T=3.0
35675CFLANGE, DIRECT CLUTCH
T=3.0
T=3.2
T=3.4
T=3.0
T=3.2
T=3.4
T=3.6
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
INNER
OUTER
35677HDISC, REVERCE CLUTCH
35701SHAFT SUB-ASSY, INPUT
35708GSHAFT SUB-ASSY, INTERMEDIATE
35712ARING, INPUT SHAFT OIL SEAL
35786ARACE, THRUST BEARING, NO.1
35788CRACE, THRUST BEARING, NO.3
35 parts on this diagram · 2 diagrams in section
