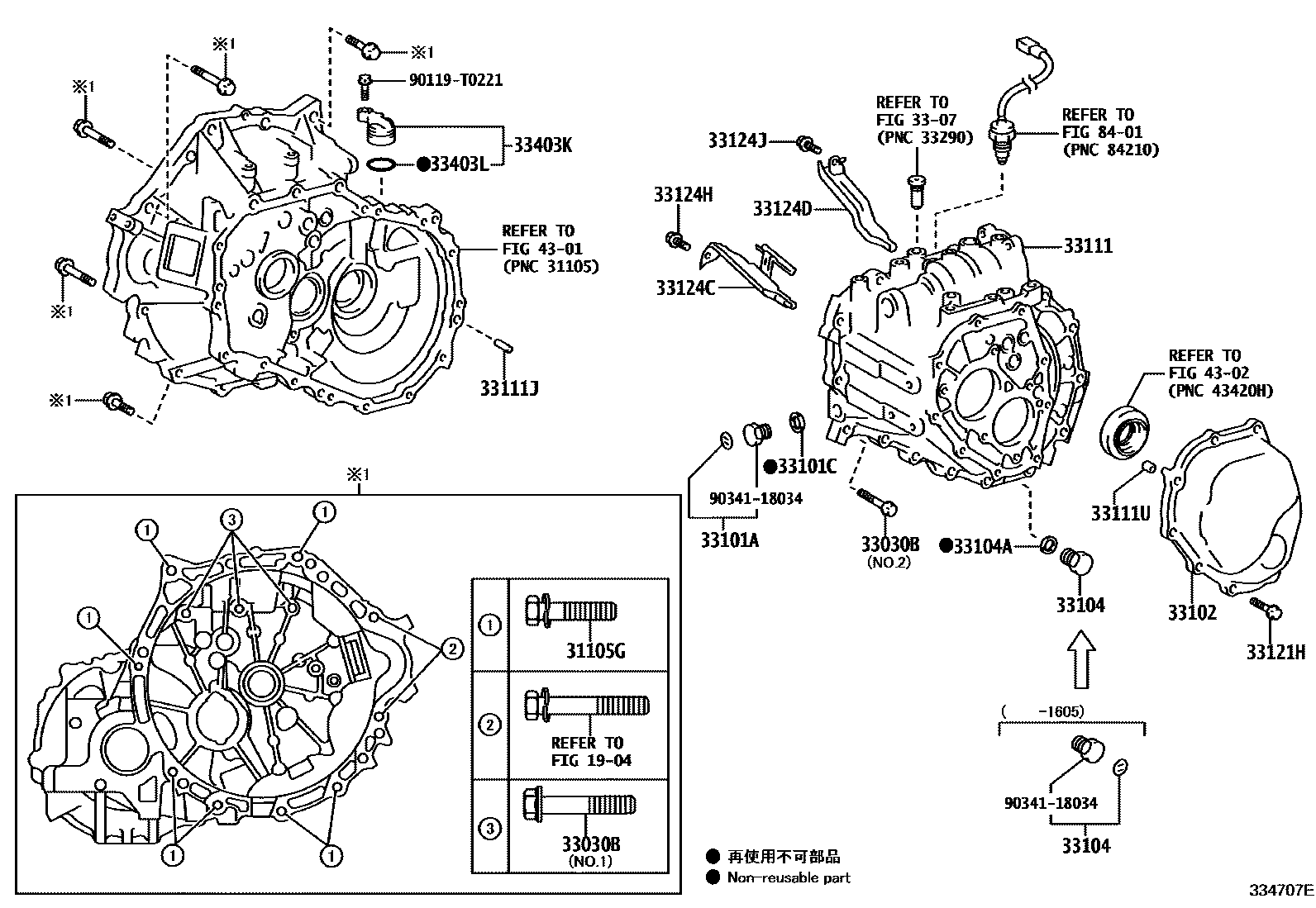

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50,C54 0002 1C50,C54 0003 1EC60 0004 1EC60

1904

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-T0173iNSP151..6F..G201804-201908

*12-1.25PX45-30,(L),TYPE B:REF ILL.

main90119-T0225iNCP15#..5F..PH201304-201609

*10-1.25PX45-30

main90119-T0310iNSP151..6F..G201804-201908

*12-1.25PX45-30,(L),TYPE A:REF ILL.

main90119-T0310iNSP150,151..5F..GEN201604-202207

*12-1.25PX45-30,(L)

main90119-T0310iNSP150,151..5F..I202003-202406

*12-1.25PX45-30

main91552-81245iNSP151..6F..G201804-201908

*12-1.25PX45-30,(J),TYPE B:REF ILL.

main91552-81245iNSP151..6F..H201807-201910

*12-1.25PX45-30

main91619-61245iNSP151..6F..G201804-201908

*12-1.25PX45-30,(J),TYPE A:REF ILL.

main91619-61245iNSP150,151..5F..(GCC,IDN,TH)201604-202207

*12-1.25PX45-30,(J)

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08353iNCP15#..5F201304-201405

*8-1.25PX50-30,NO.2:REFER ILLUST.

main90105-08430iNCP15#..5F201304-201405

*8-1.25PX45-27.5,NO.1:REFER ILLUST.

main90105-T0323iNCP15#..5F..PH201405-202406

*8-1.25PX51-28,NO.2:REFER ILLUST.

main90105-T0325iNSP151..5F..MA201405-202406

*8-1.25PX45-27.5,NO.1:REFER ILLUST.

main91551-10840iNSP151..6F201804-201910

*8-1.25PX40-22

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iNSP151..6F201804-201910

NO.1

main90341-18033iNSP150,151..5F..VN201304-202406

main90341-18033iNSP151..6F201804-201910

NO.2

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-14003iNSP151..6F..H201807-201910

NO.1

main90430-18008iNSP151..6F..H201807-201910

NO.2

main90430-18008iNCP15#..5F201304-201403

main90430-T0011iNSP151..6F..G201804-201908

NO.2

main90430-T0021iNCP15#..5F..(MA,VN)201403-202406

main90430-T0026iNSP151..6F..G201804-201908

NO.1

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iNCP15#..5F..C201304-201609

main33102-52021iNSP150,151..5F..GEN201604-202406

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNSP150..5F..G..A;NSP150..5F..GCC..D..(A,C)201605-202406

main90341-18033iNSP15#..5F;NCP15#..5F..C;NCP15#..5F..(MA,PH,VN)201304-201605

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP15#..5F201304-201403

main90430-T0021iNCP15#..5F..(MA,VN)201403-202406

33111CASE, MANUAL TRANSMISSION

main33111-0D090iNCP15#..5F..(MA,VN)201304-201609

main33111-0D100iNSP151..6F..G201804-201908

PNC 33109C=TYPE A

main33111-0D120iNSP150,151..5F..(GCC,IDN,TH)201604-202406

main33111-0D130iNSP151..6F..H201807-201810

sub33111-0D131

main33111-0D131iNSP151..6F..H201810-201905

sub33111-0D132

main33111-0D132iNSP151..6F..H201905-201910

main33111-0D150iNSP151..6F..G201902-201908

PNC 33109C=TYPE B

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNCP15#..5F..C201304-202406

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iNSP150,151..5F..GEN201304-202406

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08429iNCP15#..5F201304-201409

main90119-T0449iNCP15#..5F..(MA,VN)201410-202406

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0D040iNSP151..6F..G201804-201908

main33124-0D080iNSP151..6F..H201807-201910

main33124-20050iNSP151..5F..(D,E);NSP150..5F..(D,E,I);NSP151..RHD..5F..(B,I)201304-202406

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iNSP150..5F..G..A;NSP150..5F..GCC..D..(A,C)201304-202406

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-T0296iNSP151..5F..(D,E);NSP150..5F..(D,E,I);NSP151..RHD..5F..(B,I)201405-202406

main91611-G0820iNCP15#..5F201304-201405

33124JBOLT, W/WASHER

main90119-T0296iNCP15#..5F..(GCC,GEN,TH)..B201405-202406

main91611-G0820iNCP15#..5F201304-201405

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-0D020iNCP150..5F..GEN..D;NCP151..5F..(GCC,GEN)..B;NCP150..5F..(GEN,TH)..(G,R)201304-202406

main33403-0D020iNCP150..5F..IDN..(G,R)..B201304-201506

BRUNEI SPEC

main33403-35230iNSP151..6F..H201807-201910

33403LRING, O

main96711-24030iNCP150..5F..IDN..(G,R)..B201304-201506

BRUNEI SPEC

main96711-24030iNCP150..5F..GEN..D;NCP151..5F..(GCC,GEN)..B;NCP150..5F..(GEN,TH)..(G,R)201304-202406

4301

4302

8401

90119T0221

main90119-T0221

9034118034

main90341-18034

24 parts on this diagram · 4 diagrams in section
