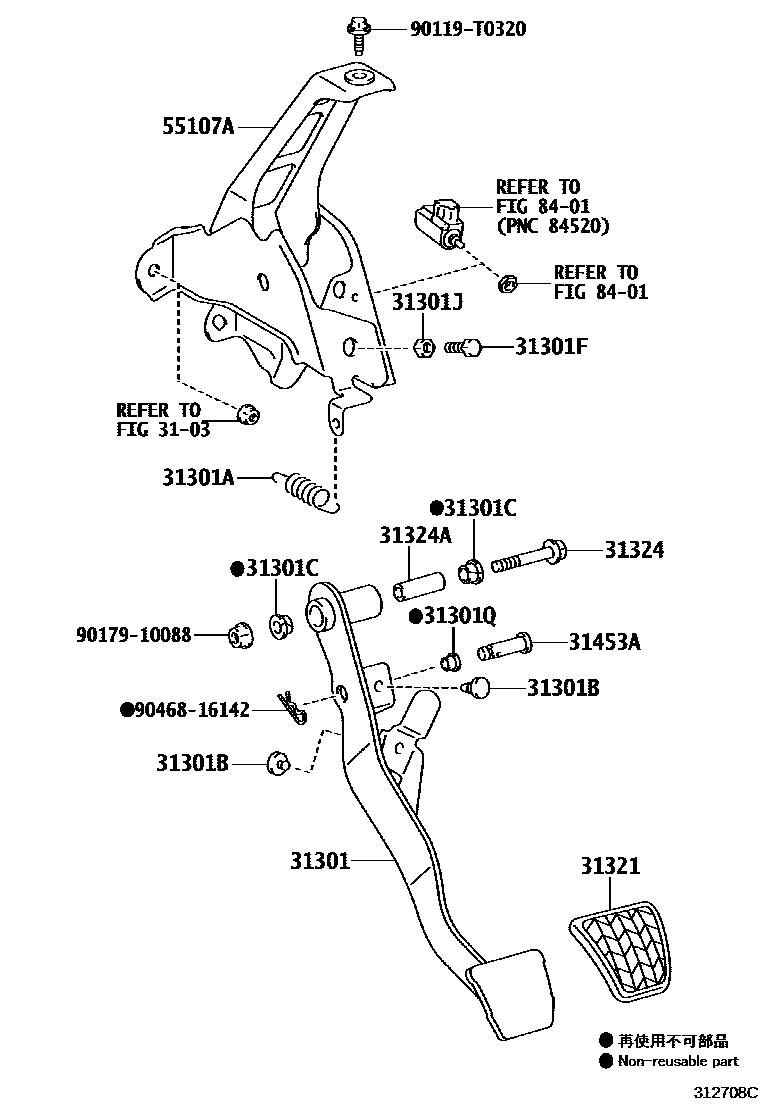

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1ALGERIA SPEC 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

3103

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D220iNSP150..5F..GCC..R..A;NSP150,151..LHD..5F..(GEN,VN)..(A,E)201307-202207

main31301-0D240iNCP150..5F..MA201304-201611

sub31301-0D241

main31301-0D241iNSP150,151..RHD..5F..(A,B)201612-202108

main31301-0D260iNSP151..5F..C201312-201611

sub31301-0D261

main31301-0D261iNSP151..5F..C201612-202207

main31301-0D270iNSP150..5F..C201402-202207

main31301-0D320iNSP151..6F..H201807-201910

main31301-0D340iNSP151..6F..G201804-201908

main31301-0D380iNSP150,151..5F..D201807-201910

main31301-0D390iNSP150,151..5F..I202003-202406

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14018iNCP15#..LHD..5F..(GCC,GEN)..B201307-202207

main90507-14055iNCP150..5F..C201304-202406

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNSP151..5F..C201304-202406

main90541-T0013iNSP150..5F..R..C201902-202207

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNCP15#..5F..(MA,VN)201304-202406

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNSP150,151..LHD..5F..GEN201304-202207

main91112-61025iNSP150,151..RHD..MTM..(B,G,I)201612-202406

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10017iNCP15#..5F..VN201304-202406

main94120-41000iNSP151..6F..H201807-201910

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-08002iNCP150..5F..IDN..B201304-202406

main90386-08033iNSP150..5F..R..C;NSP151..MTM..(C,G)201312-202207

31321PAD, CLUTCH PEDAL

main31321-02010iNSP151..6F..H201807-201910

main31321-0D050iNSP151..6F..G201804-201908

main31321-0D060iNSP150,151..5F..I202003-202406

main31321-0D070iNSP150,151..5F..VN201801-202207

(L)

main31321-52010iNSP150,151..5F..PH201801-202207

(J)

main31321-52010iNSP150,151..5F..A201304-202207

31324SHAFT, CLUTCH PEDAL

main90101-10081iNSP150..5F..GCC..D..(A,C)201307-202207

main90105-10444iNSP151..5F..C201304-202207

main90105-10444iNSP150..5F..G201702-202406

(J)

main90105-T0089iNSP150,151..RHD..5F..(B,I)201702-202406

(L)

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNSP150,151..RHD..5F..(B,I)201304-202406

main90387-10004iNSP150,151..LHD..5F..GEN201307-202207

main90387-T0027iNSP151..5F..C201902-202207

main90387-T0028iNSP150..5F..R..C201902-202207

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iNSP150,151..5F..VN201304-202406

L=31.5

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D270iNSP150,151..5F..VN201307-202207

main55107-0D290iNSP150..5F..G201304-202108

main55107-0D310iNSP151..6F..BZ201807-201910

main55107-0D320iNSP151..5F..C201312-202207

main55107-0D330iNSP150..5F..R..C201402-202207

main55107-0D370iNSP151..6F..G201804-201908

main55107-0D420iNSP151..6F..(AGT,GEN)201807-201910

main55107-0D430iNSP150,151..5F..D201807-201910

main55107-0D440iNSP150,151..5F..I202003-202406

8401

90119T0320

main90119-T0320

9017910088

main90179-10088

9046816142

main90468-16142

17 parts on this diagram · 11 diagrams in section
