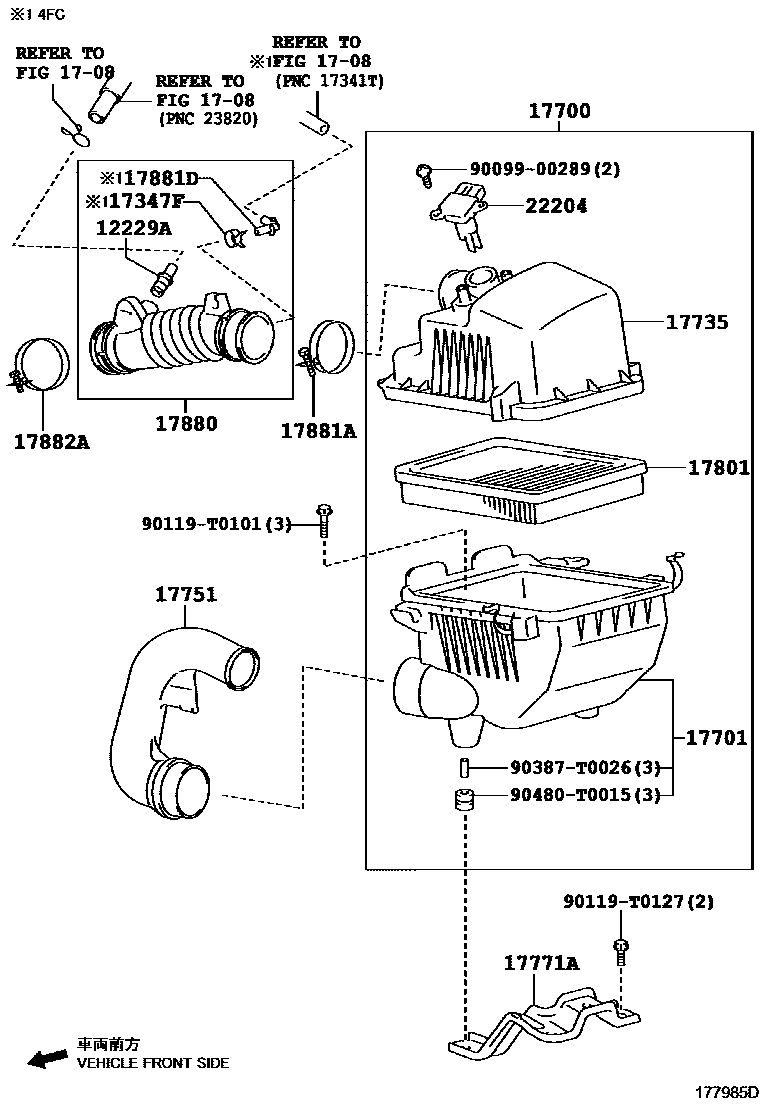

AIR CLEANER

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0010 1 0012 1 0013 1 0014 1

12229APIPE, VENTILATION

main12229-0T040i1NZFE..NCP150..TAIW201404-201604

main12229-0Y030i1NZFE,2NZFE..NCP15#..PH201304-201910

1708

17347FCLAMP OR CLIP(FOR AIR HOSE)

main96136-41901i1NZFE,2NZFE..NCP15#..4FC..(GCC,GEN,TH)..B201304-201910

17700CLEANER ASSY, AIR

main17700-0M100i1NZFE,2NZFE..NCP15#..PH201304-201608

main17700-0M110i1NZFE..NCP150..TAIW201404-201604

main17700-0M120i1NZFE,2NZFE..NCP15#..C201312-201609

main17700-0Y110i3NRFE..NSP152201708-201910

main17700-0Y190i1NRFE..NSP150..CVT..G..A;2NRFE..NSP151..LHD..GEN..A;2NRFE..NSP151..RHD..(GEN,MA);1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GCC..(D,R)..A;2NRFE..NSP151..(GCC,201604-202207

main17700-0Y200i2NRFE..NSP151..TH..G..C201610-202207

main17700-0Y210i2NRFE..NSP151..F201605-202101

main17700-0Y250i2NRFE..NSP151..G201804-201908

main17700-0Y260i2NR#..NSP151..H201807-201910

main17700-0Y370i1NRFE,2NRFE..NSP150,151..I202003-202406

17701CASE SUB-ASSY, AIR CLEANER

main17701-0M070i2NRFE..NSP151..MA201304-202207

main17701-0M080i2NRFE..NSP151..TAIW201404-202101

main17701-0M090i2NRFE..NSP151..TH..G..C201312-202207

main17701-0Y080i3NRFE..NSP152201708-201910

main17701-0Y180i2NRFE..NSP151..G201804-201908

main17701-0Y190i2NR#..NSP151..H201807-201910

main17701-0Y270i1NRFE,2NRFE..NSP150,151..I202003-202406

17735CAP, AIR CLEANER

main17735-0M010i1NZFE,2NZFE..NCP15#..PH201304-201608

main17735-0M050i1NZFE..NCP150..TAIW201404-201604

main17735-0M060i1NZFE,2NZFE..NCP15#..C201312-201609

main17735-0Y050i3NRFE..NSP152201708-201910

main17735-0Y130i1NRFE,2NRFE..NSP150,151..I202003-202406

main17735-0Y140i2NRFE..NSP151..TH..B201604-202207

main17735-0Y150i2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C201610-202207

main17735-0Y160i2NRFE..NSP151..F201605-202101

main17735-0Y200i2NRFE..NSP151..G201804-201908

main17735-0Y210i2NR#..NSP151..H201807-201910

17751INLET, AIR CLEANER, NO.1

main17751-0M070i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201304-201609

main17751-0M080i1NZFE..NCP150..TAIW201404-201604

main17751-0Y100i3NRFE..NSP152201708-201910

main17751-0Y190i1NRFE,2NRFE..NSP150,151..GEN201604-201812

main17751-0Y210i2NRFE..NSP151..TAIW201605-201802

main17751-0Y240i2NR#..NSP151..H201807-201910

main17751-0Y261i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201708-202207

main17751-0Y271i2NRFE..NSP151..F201803-202101

main17751-0Y320i1NRFE,2NRFE..NSP150,151..I202003-202406

main17751-0Y330i3NRFKE..NSP152201911-202207

17771ABRACKET, AIR CLEANER

main17771-0M050i1NZFE,2NZFE..NCP15#..PH201304-201608

main17771-0M060i1NZFE,2NZFE..NCP15#..C201312-201609

main17771-0Y030i2NRFE..NSP151..G201804-201908

main17771-0Y041i2NR#..NSP151..H201807-201910

main17771-0Y050i1NRFE,2NRFE..NSP150,151..GCC..B201604-201812

main17771-0Y060i1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C201610-201712

main17771-0Y080i2NRFE..NSP151..F201708-202406

main17771-0Y090i1NRFE..NSP150..5F..D..C;2NRFE..NSP151..CVT..D..C201801-202207

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0N050i2NRFE..NSP151..G201804-201908

main17801-0Y040i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201304-202406

main17801-0Y070i1NRFE..NSP150..5F..D..C;2NRFE..NSP151..CVT..D..C201607-202207

17880HOSE ASSY, AIR CLEANER

main17880-0M100i1NZFE,2NZFE..NCP15#..5F..(GCC,GEN,TH)..B201304-201609

main17880-0M120i1NZFE..NCP150..4FC..IDN..B201304-201609

main17880-0Y060i3NRFE..NSP152201708-201910

17881HOSE, AIR CLEANER, NO.1

main17881-0M110i1NZFE..NCP150..TAIW201404-201604

main17881-0Y160i2NRFE..NSP151..5F..(D,E);1NRFE,2NRFBE..NSP150,151..MTM..(D,E,H,I);2NRFE..NSP151..MTM..(AGT,GEN,IND,MA,PKN)..(B,G,H,I)201604-202406

main17881-0Y170i2NRFE..NSP151..5F..C;1NRFE..NSP150..5F..R..C201610-202207

main17881-0Y180i2NRFE..NSP151..TAIW201605-202101

main17881-0Y240i2NRFE..NSP151..CVT..(AGT,IND,MA,PKN);1NRFE,2NRFBE..NSP150,151..CVT..(D,H,I);2NRFE..NSP151..CVT..(GEN,PH,VN)..(D,E,H)201604-202406

main17881-0Y250i1NRFE..NSP150..CVT..C;2NRFE..NSP151..CVT..(G,R)..C201610-202207

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0017i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201309-202302

(L)

main90460-T0017i2NRFE..NSP151..TH..G..C201604-201812

main96111-10690i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201304-202406

(J)

main96111-10690i2NRFE..NSP151..TAIW201404-202101

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main12229-0M020i1NZFE..NCP150..TAIW201404-201604

main12229-0Y050i1NZFE,2NZFE..NCP15#..4FC..(GCC,GEN,TH)..B201304-201910

17882HOSE, AIR CLEANER, NO.2

main17882-0Y020i1NRFE,2NRFE..NSP15#..5F..B201604-201703

sub17882-0Y021

main17882-0Y021i2NRFE..NSP151..5F..MA201704-201812

main17882-0Y030i1NRFE,2NRFE..NSP15#..5F..C201610-201703

sub17882-0Y031

main17882-0Y031i1NRFE,2NRFE..NSP150,151..5F..C201704-201712

main17882-0Y080i1NRFE,2NRFE..NSP15#..CVT..B201604-201703

sub17882-0Y081

main17882-0Y081i1NRFE,2NRFE..NSP150,151..CVT..GEN201704-201812

main17882-0Y090i1NRFE,2NRFE..NSP15#..CVT..C201610-201704

main17882-0Y091i2NRFE..NSP151..TH..G..C201704-201712

main17882-0Y130i1NRFE..NSP150..5F..G..A;1NRFE..NSP150..5F..GCC..D..A201710-202406

main17882-0Y140i1NRFE,2NRFE..NSP150,151..CVT..A201708-202406

main17882-0Y150i2NRFE..NSP151..5F..C;1NRFE..NSP150..5F..R..C201801-202207

main17882-0Y160i1NRFE..NSP150..CVT..C;2NRFE..NSP151..CVT..(G,R)..C201801-202207

main17882-0Y240i3NRFKE..NSP152201911-202207

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-T0017i1NZFE,2NZFE..NCP15#..C201309-201609

(L)

main90466-54002i3NR#..NSP152201708-202207

main90466-62002i2NRFE..NSP151..F201604-202406

main96111-10690i1NZFE..NCP150..TAIW201404-201604

main96111-10690i1NZFE,2NZFE..NCP15#..MA,VN201304-201609

(J)

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i2NR#..NSP151..H201807-201910

(L)

sub22204-0V020

main22204-0V020i2NRFE..NSP151..TH..B201304-202406

main22204-28010i2NR#..NSP151..H201807-201910

(J)

9009900289

main90099-00289

90119T0101

main90119-T0101

90119T0127

main90119-T0127

90387T0026

main90387-T0026

90480T0015

main90480-T0015

21 parts on this diagram · 10 diagrams in section
