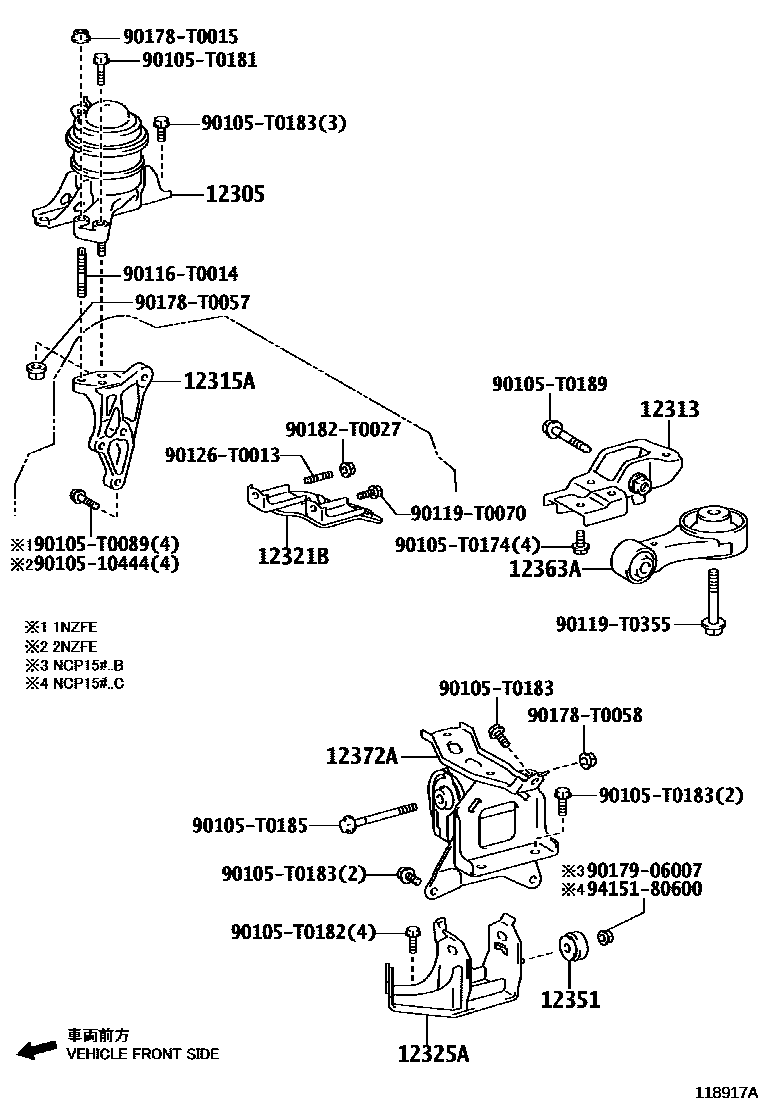

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0M120i1NZFE,2NZFE..NCP15#..5F201304-201412

sub12305-0M121

main12305-0M121i1NZFE..NCP150..5F..IDN..B201501-201609

sub12305-0M122

main12305-0M130i1NZFE,2NZFE..NCP15#..4FC201304-201412

sub12305-0M131

main12305-0M131i1NZFE..NCP150..4FC..(MA,VN)201501-201609

sub12305-0M132

main12305-0Y060i2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C201610-202207

main12305-0Y110i2NRFE..NSP151..D,E;2NRFE..NSP151..MA,PKN;1NRFE,3NRFE..NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)201604-202406

main12305-0Y180i2NRFE..NSP151..G201804-201908

main12305-0Y190i2NR#..NSP151..H201807-201910

sub12305-0Y170

main12305-0Y270i3NRFKE..NSP152201911-202207

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0M010i1NZFE,2NZFE..NCP15#..5F..(MA,VN)201304-202406

main12313-0M030i1NZFE,2NZFE..NCP15#..5F..C201312-202207

main12313-0Y090i2NR#..NSP151..6F..H201807-201910

main12313-0Y100i2NRFE..NSP151..6F..G201804-201908

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0M013i1NZFE..NCP150..C201304-201609

main12315-0M032i1NZFE..NCP150..TAIW201404-201604

(L)

main12315-0Y010i2NRFE..NSP151..TH..G..C201604-202207

*264

main12315-0Y010i2NRFE..NSP151..MA201609-202011

*419

main12315-0Y010i1NRFE,2NRFE..NSP150,151..I202003-202301

main12315-0Y060i2NR#..NSP151..H201807-201910

main12315-0Y070i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201607-202207

*230 OR *432

main12315-0Y100i1NRFE,2NRFE..NSP150,151..I202302-202406

main12315-21033i2NZFE..NCP151..VN201307-201609

main12315-21044i1NZFE..NCP150..TAIW201404-201604

(J)

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-0D010i1NZFE..NCP150..TAIW201404-201604

main43409-0D020i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201304-201608

sub43409-52020

main43409-0D070i1NZFE,2NZFE..NCP15#..C201312-201609

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-0Y150i2NR#..NSP151..6F..H201807-201910

main12325-0M060i1NZFE,2NZFE..NCP15#..5F..(MA,VN)201304-201608

main12325-0M070i1NZFE..NCP150..4FC..(MA,VN)201304-201608

main12325-0M080i1NZFE..NCP150..TAIW201404-201604

main12325-0M140i2NZFE..NCP151..4FC..PH201307-201606

main12325-0M150i1NZFE,2NZFE..NCP15#..5F..C201312-201609

main12325-0M160i1NZFE..NCP150..4FC..C201312-201609

main12325-0M170i2NZFE..NCP151..4FC..C201402-201609

main12325-0Y140i1NRFE..NSP150..CVT..GCC..B201604-202406

main12325-0Y180i2NRFE..NSP151..CVT..(D,R)..C;2NRFE..NSP151..CVT..(GCC,IDN)..G..C201610-201712

main12325-0Y260i3NRFKE..NSP152201911-202207

main12325-0Y290i2NRFE..NSP151..TH..B201604-201812

main12325-0Y300i2NRFE..NSP151..TAIW201605-201802

main12325-0Y310i1NRFE,2NRFE..NSP150,151..5F..VN201604-201812

sub12325-0Y311

main12325-0Y311i2NRFE..NSP151..5F..(D,E);1NRFE..NSP150..5F..(D,E,I);2NRFE..NSP151..RHD..5F..(B,I)201710-202406

main12325-0Y320i1NRFE,2NRFE..NSP150,151..5F..C201610-201712

sub12325-0Y321

main12325-0Y321i2NRFE..NSP151..5F..C;1NRFE..NSP150..5F..R..C201801-202207

main12325-0Y330i1NRFE..NSP150..CVT..C201610-202207

main12325-0Y340i2NRFE..NSP151..CVT..D..C201801-202207

main12325-0Y350i2NR#..NSP151..CVT..H201807-201910

main12325-0Y360i2NRFE..NSP151..6F..G201804-201908

main12325-0Y410i2NRFE..NSP151..CVT..(D,E);2NRFE..NSP151..CVT..(MA,PKN)201708-202406

main12325-0Y430i2NRFE..NSP151..F201803-202101

12351DAMPER, ENGINE MOUNTING

main12351-0M050i1NZFE..NCP150..TAIW201404-201604

main12351-0T260i3NRFKE..NSP152201911-202207

main12351-0Y080i2NRFE..NSP151..5F..MA201604-201812

sub12351-0Y120

main12351-0Y090i1NRFE..NSP150..CVT..C201610-202207

main12351-0Y100i1NRFE,2NRFE..NSP150,151..5F..C201610-201712

main12351-0Y110i2NRFE..NSP151..6F..G201804-201908

main12351-0Y120i1NRFE..NSP150..5F..G..A;1NRFE..NSP150..5F..GCC..D..A201710-202406

main12351-0Y130i1NRFE..NSP150..5F..D..C201801-202207

main12351-21090i1NZFE..NCP150..C;2NZFE..NCP151..5F..C201304-201609

main12351-37100i1NRFE..NSP150..CVT..PH201604-202406

main12351-47020i2NR#..NSP151..6F..H201807-201910

12363AROD, ENGINE MOVING CONTROL

main12363-0M030i1NZFE..NCP150..TAIW201404-201604

main12363-0M080i1NZFE..NCP150..5F..IDN..B201304-202406

main12363-0M090i1NZFE,2NZFE..NCP15#..4FC..PH201304-201608

main12363-0M100i1NRFE,2NRFE..NSP150,151..5F..C201312-202207

main12363-0M110i1NZFE,2NZFE..NCP15#..4FC..C201312-201609

main12363-0Y100i1NRFE..NSP150..CVT..GCC..B201604-202406

main12363-0Y110i2NRFE..NSP151..6F..G201804-201908

main12363-0Y120i2NRFE..NSP151..F201605-202207

main12363-0Y200i2NRFE..NSP151..CVT..VN201604-202406

main12363-0Y210i1NRFE..NSP150..CVT..C201610-202207

main12363-0Y230i2NR#..NSP151..CVT..H201807-201910

main12363-0Y260i2NR#..NSP151..6F..H201807-201910

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0M130i1NZFE,2NZFE..NCP15#..5F..PH201304-201608

main12372-0M140i1NZFE..NCP150..TAIW201304-201608

main12372-0M150i1NZFE,2NZFE..NCP15#..5F..C201312-201609

main12372-0M160i1NZFE,2NZFE..NCP15#..4FC..C201312-201609

main12372-0Y050i2NRFE..NSP151..6F..G201804-201908

main12372-0Y060i2NRFE..NSP151..TH..G..C201605-201802

main12372-0Y140i1NRFE..NSP150..CVT..GEN201604-201806

sub12372-0Y141

main12372-0Y141i1NRFE,3NRFE..NSP150,152..CVT..(PH,PKN,TH)..(A,D,I)201708-202406

main12372-0Y230i3NRFKE..NSP152201911-202207

main12372-0Y250i1NRFE,2NRFE..NSP150,151..5F..GEN201604-201812

sub12372-0Y251

main12372-0Y251i1NRFE..NSP150..5F..GCC..R..A;1NRFE,2NRFE..NSP150,151..LHD..5F..GEN201710-202406

main12372-0Y260i2NRFE..NSP151..GCC..B201604-201812

main12372-0Y270i1NRFE,2NRFE..NSP150,151..5F..C201610-201712

sub12372-0Y271

main12372-0Y271i1NRFE..NSP150..5F..D..C201801-202207

main12372-0Y280i1NRFE..NSP150..CVT..C201610-201712

sub12372-0Y281

main12372-0Y281i1NRFE..NSP150..CVT..C201801-202207

main12372-0Y290i2NR#..NSP151..6F..H201807-201910

main12372-0Y300i2NR#..NSP151..CVT..H201807-201910

main12372-0Y350i2NRFE..NSP151..CVT..(D,E);2NRFE..NSP151..CVT..(MA,PKN)201708-202406

main12372-0Y360i2NRFE..NSP151..F201801-202207

9010510444

main90105-10444

90105T0089

main90105-T0089

90105T0174

main90105-T0174

90105T0181

main90105-T0181

90105T0182

main90105-T0182

90105T0183

main90105-T0183

90105T0185

main90105-T0185

90105T0189

main90105-T0189

90116T0014

main90116-T0014

90119T0070

main90119-T0070

90119T0355

main90119-T0355

90126T0013

main90126-T0013

90178T0015

main90178-T0015

90178T0057

main90178-T0057

90178T0058

main90178-T0058

9017906007

main90179-06007

90182T0027

main90182-T0027

9415180600

main94151-80600

26 parts on this diagram · 8 diagrams in section
