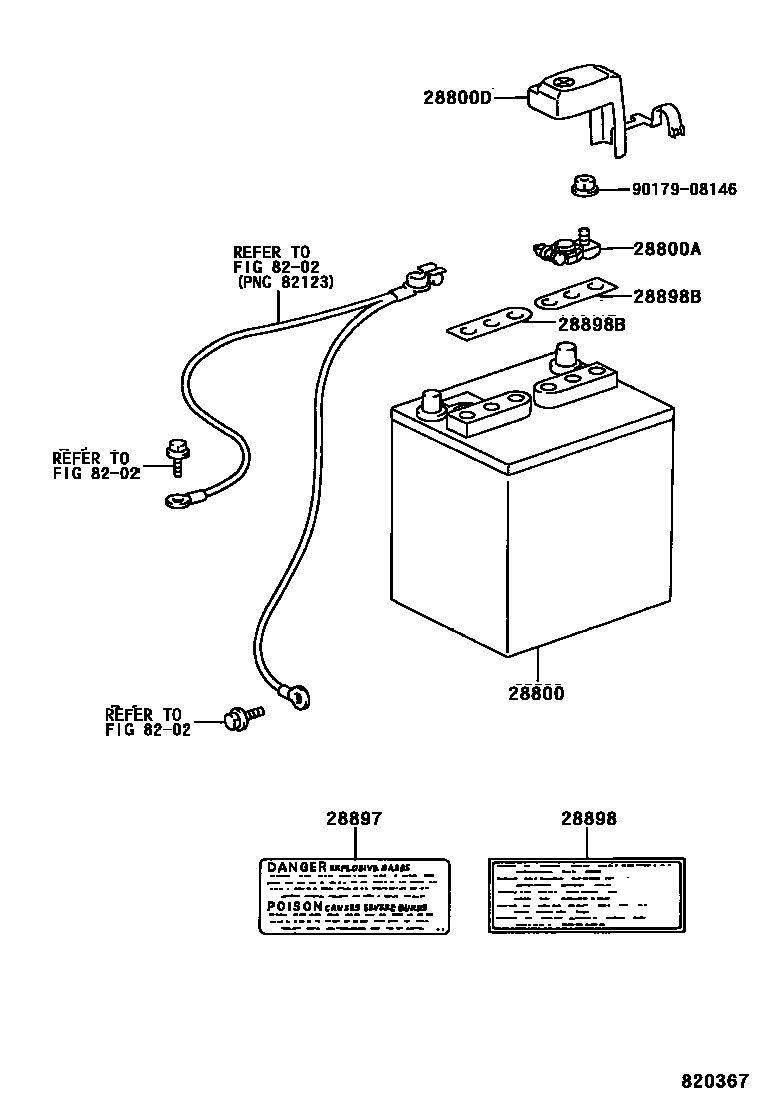

BATTERY & BATTERY CABLE

28800BATTERY

main28800-11290i5EFE..EL54199508-199608

55D23R

main28800-11291i5EFE..EL54199608

55D23R,MATSUSHITA

main28800-11300i5EFE..EL54..USA199508-199608

50D20R

main28800-11301i5EFE..EL54..USA199608

50D20R

main28800-11321i5EFE..EL54199608

55D23R,YUASA

main28800-11331i5EFE..EL54199608

55D23R,FURUKAWA

sub28800-11900

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i5EFE..EL54199508

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i5EFE..EL54199508

28897PLATE, BATTERY CAUTION

main28897-38010i5EFE..EL54..CND199508-199608

main28897-46020i5EFE..EL54..CND199608

28898PLATE, BATTERY

main28898-26010i5EFE..EL54..USA199508-199608

28898BPLATE, BATTERY

main28898-11010i5EFE..EL54..USA199508

main28898-11020i5EFE..EL54199508

W(BATTERY=55D23R-MF)

8202

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
