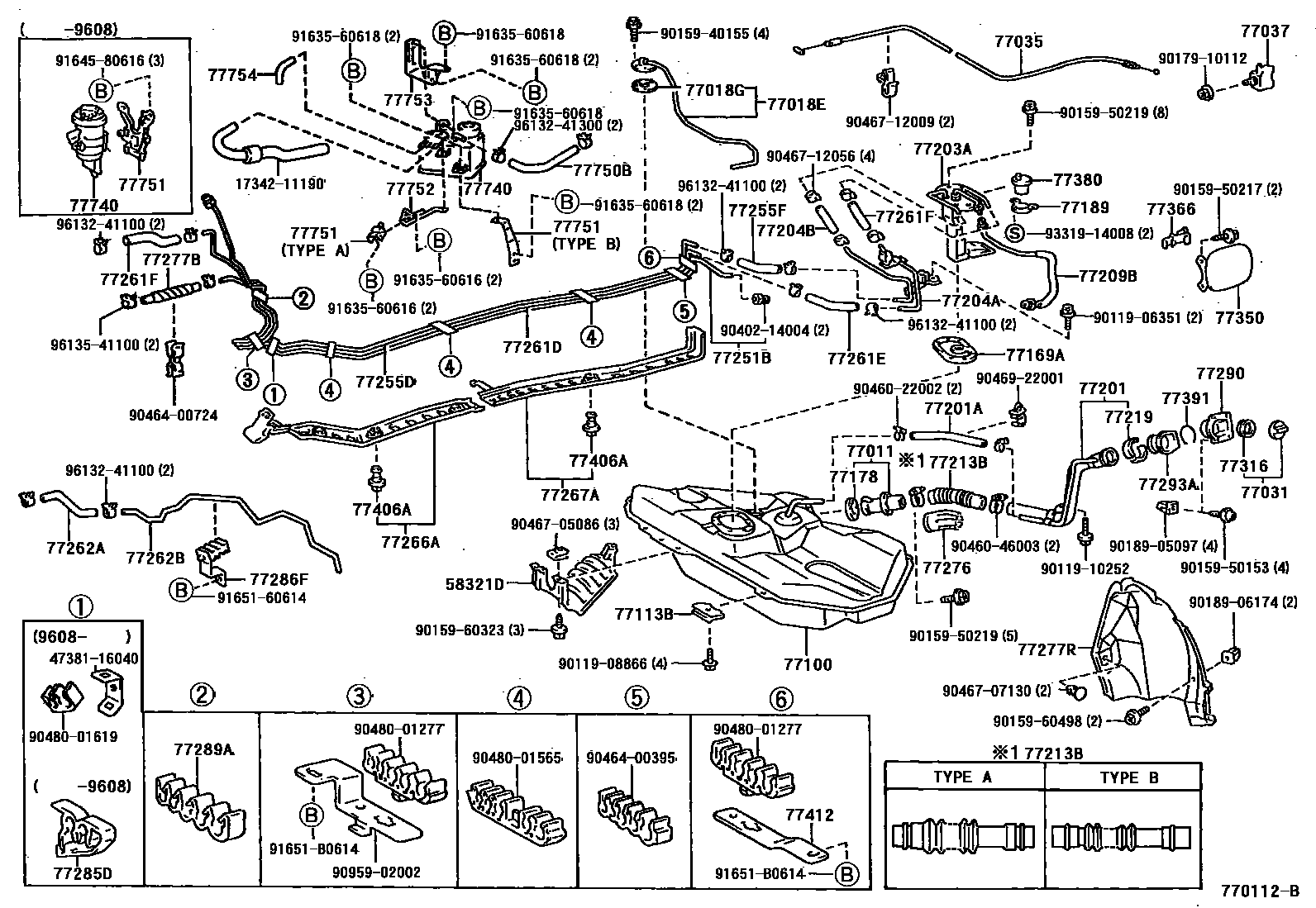

FUEL TANK & TUBE
58321DINSULATOR, REAR FLOOR HEAT, NO.1
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018GGASKET, FUEL TANK EVAP/VENT TUBE
sub77179-26011
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77113BPLATE, FUEL TANK SIDE
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77189RETAINER, FUEL CHECK VALVE
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=280
L=280
77203ATUBE SUB-ASSY, FUEL SUCTION
77204ATUBE, FUEL TANK RETURN
77204BHOSE, FUEL(FOR FUEL RETURN)
77213BHOSE, FUEL TANK TO FILLER PIPE
sub77213-16110
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
77219COVER, FUEL TANK FILLER PIPE
77251BTUBE, FUEL MAIN
77255DTUBE, FUEL RETURN
77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77261DTUBE, FUEL TANK TO CANISTER
77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
L=140
L=140
77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
L=110
*H,L=80
L=80
77262AHOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
77262BTUBE, FUEL TANK TO CANISTER, NO.2
77266APROTECTOR, FUEL TUBE, NO.1
77267APROTECTOR, FUEL TUBE, NO.2
77276PROTECTOR, FUEL HOSE
77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
*H,L=360
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
77289ACLAMP, FUEL TUBE W/GROMMET, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77406ACLIP(FOR FUEL TUBE PROTECTOR)
77412SUPPORT, FUEL TUBE GROMMET, NO.2
77750BHOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
L=339
77751BRACKET, CHARCOAL CANISTER BASE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
77752BRACKET, CHARCOAL CANISTER SUPPORT
77753BRACKET, CHARCOAL CANISTER, NO.3
1734211190HOSE, NO.2(FOR AIR INJECTION SYSTEM)
main17342-11190
4738116040BRACKET, BRAKE TUBE CLAMP NO.1
main47381-16040
9011906351
main90119-06351
9011908866
main90119-08866
9011910252
main90119-10252
9015940155
main90159-40155
9015950153
main90159-50153
9015950217
main90159-50217
9015950219
main90159-50219
9015960323
main90159-60323
9015960498
main90159-60498
9017910112
main90179-10112
9018905097
main90189-05097
9018906174
main90189-06174
9040214004
main90402-14004
9046022002
main90460-22002
9046046003
main90460-46003
9046400395
main90464-00395
9046400724
main90464-00724
9046705086
main90467-05086
9046707130
main90467-07130
9046712009
main90467-12009
9046712056
main90467-12056
9046922001
main90469-22001
9048001277
main90480-01277
9048001565
main90480-01565
9048001619
main90480-01619
9095902002
main90959-02002
9163560616
main91635-60616
9163560618
main91635-60618
9164580616
main91645-80616
9165160614
main91651-60614
91651B0614
main91651-B0614
9331914008
main93319-14008
9613241100
main96132-41100
9613241300
main96132-41300
9613541100
main96135-41100
88 parts on this diagram · 1 diagram in section
