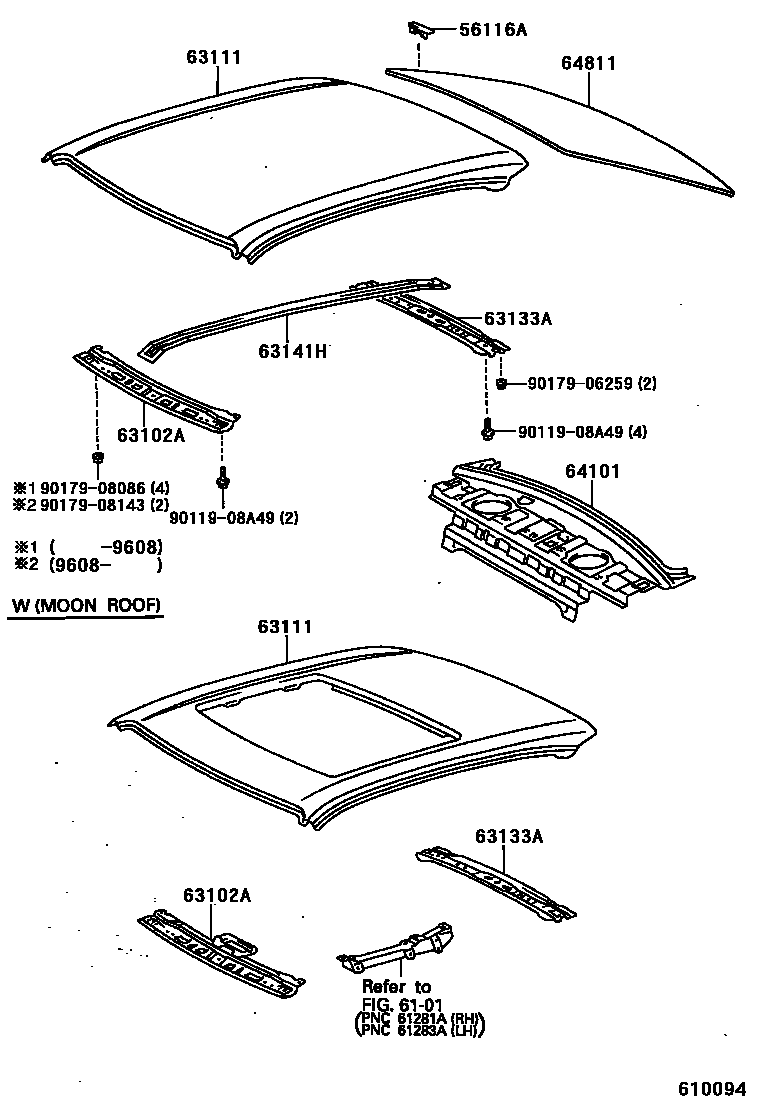

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

56116ASPACER, WINDSHIELD GLASS

main56116-16060iEL54..CP199508

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0W010iEL54..CVT199609

main63102-16040iEL54..CP199508

63111PANEL, ROOF

main63111-16280iEL54199508

main63111-16300iEL54..CP199508

W(MOON ROOF)

63133AFRAME, BACK WINDOW, UPPER

main63133-16080iEL54199508-199802

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-16120iEL54..CP199508

64101PANEL SUB-ASSY, UPPER BACK

main64101-16230iEL54..CVT199609

main64101-16250iEL54..CP199508

64811GLASS, BACK WINDOW

main64811-16500iEL54..USA199508-199608

*EHTT,T=3.5,GREEN

main64811-16501iEL54..CP..USA199608

*EHTT,T=3.5,GREEN

main64811-16510iEL54199508-199608

*EHTT,T=3.5,GREEN,W(HEAVY DUTY REAR WINDOW DEFOGGER)

main64811-16511iEL54..CP199608

*EHTT,T=3.5,GREEN,W(HEAVY DUTY REAR WINDOW DEFOGGER)

9011908A49

main90119-08A49

9017906259

main90179-06259

9017908086

main90179-08086

9017908143

main90179-08143

11 parts on this diagram · 3 diagrams in section
