SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
58709ACARRIER SUB-ASSY, JACK
58741BPROTECTOR, QUARTER PANEL, RH
58742BPROTECTOR, QUARTER PANEL, LH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61158AEXTENSION, FRONT PILLER, LOWER RH
61159KEXTENSION, FRONT PILLER, LOWER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61315CRETAINER, DOOR LOCK STRIKER, RH
61315DRETAINER, DOOR LOCK STRIKER, LH
61321REINFORCEMENT, CENTER BODY PILLAR, UPPER RH
61322REINFORCEMENT, CENTER BODY PILLAR, UPPER LH
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
61325AREINFORCEMENT, CENTER BODY PILLAR, CENTER RH
61326REINFORCEMENT, CENTER BODY PILLER, CENTER LH
61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH
61338AREINFORCEMENT, CENTER BODY PILLAR, INNER LH
61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH
61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH
61425REINFORCEMENT, ROCKER PANEL, NO.4 RH
61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
61628BEXTENSION, QUARTER PANEL, UPPER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61737BPANEL, ROOF SIDE, INNER LOWER RH
61738BPANEL, ROOF SIDE, INNER LOWER LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61824CPAD, NOISE SHUTTER, NO.1
62151BPAD, COWL SIDE SILENCER
COWL PANEL SIDE
ROCKKER PANEL REAR
64213EXTENSION, PACKAGE TRAY STRAINER, RH
64214EXTENSION, PACKAGE TRAY STRAINER, LH
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
67812APAD, QUARTER PANEL SILENCER
9010508120
main90105-08120
9017904026
main90179-04026
9017908102
main90179-08102
9033330008
main90333-30008
9095001311
main90950-01311
9095001637
main90950-01637
9095001650
main90950-01650
9095001771
main90950-01771
9095001826
main90950-01826
9166160816
main91661-60816

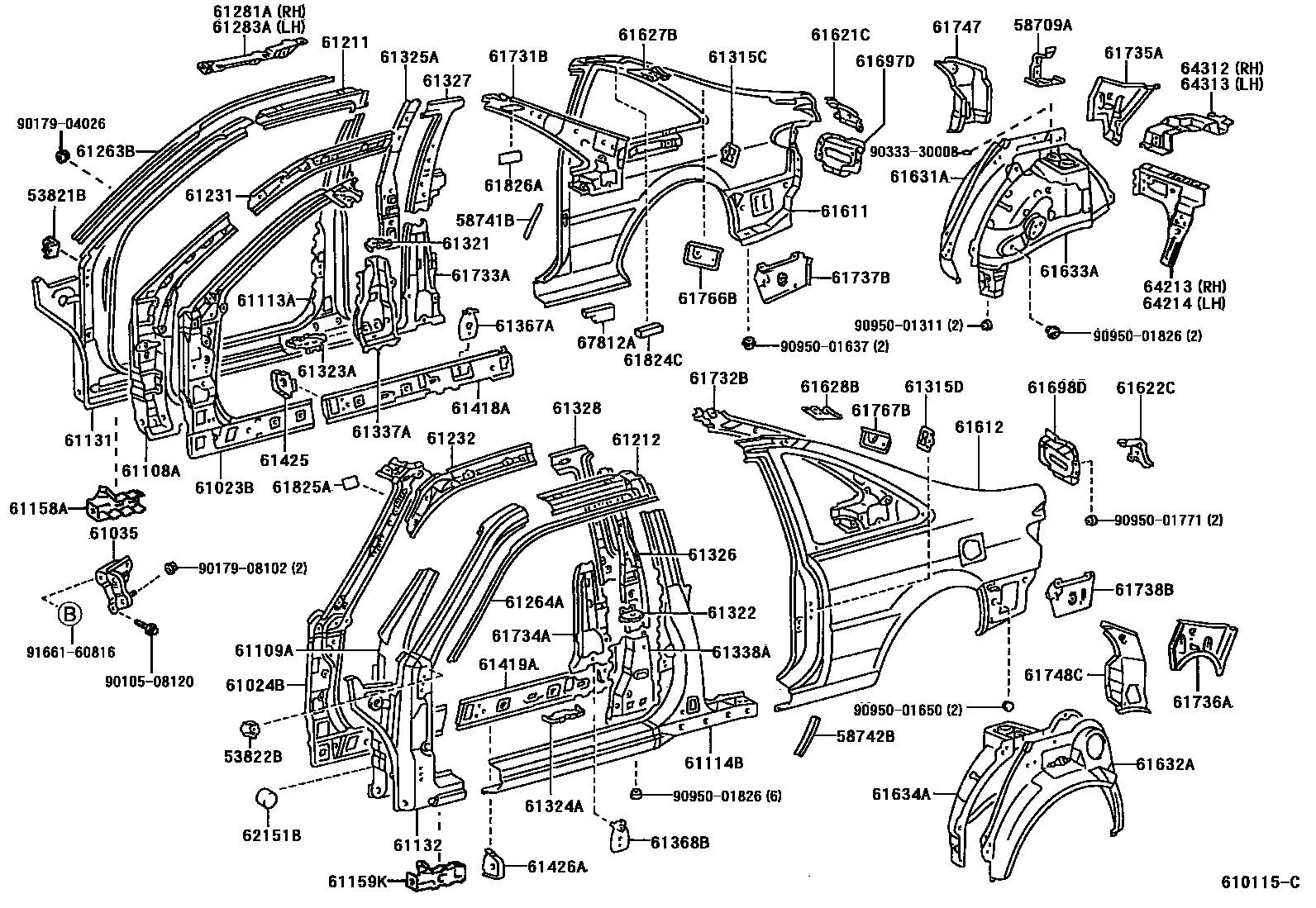

85 parts on this diagram · 2 diagrams in section
