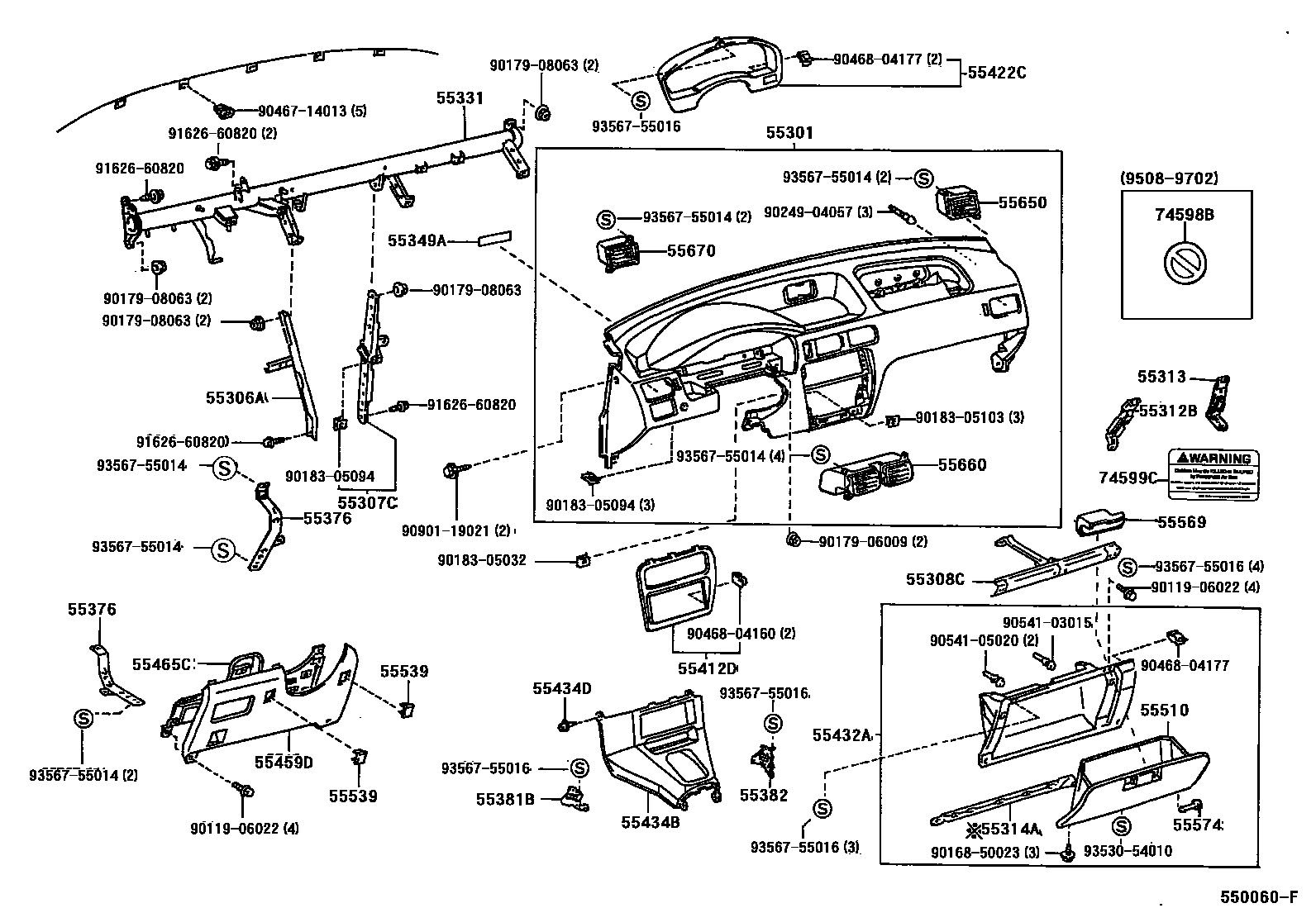

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55312BPANEL, INSTRUMENT, LOWER RH
55313PANEL, INSTRUMENT, LOWER LH
55349ACUSHION, INSTRUMENT PANEL
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55381BBRACKET, FINISH PANEL MOUNTING, NO.1
55382BRACKET, FINISH PANEL MOUNTING, NO.2
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
SHADOW GRAY,TRIM1#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER
55459DCOVER, INSTRUMENT, LOWER LH
55465CINSERT, INSTRUMENT PANEL LOWER PAD, LH
55510DOOR ASSY, GLOVE COMPARTMENT
SHADOW GRAY,TRIM1#
55539COVER, SPARE SWITCH HOLE
55569COVER, GLOVE COMPARTMENT DOOR LOCK
55574SHAFT, GLOVE COMPARTMENT DOOR HINGE
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
74599CLABEL, DRIVER & PASSENGER AIRBAG INFORMATION
sub74599-48020
9011906022
main90119-06022
9016850023
main90168-50023
9017906009
main90179-06009
9017908063
main90179-08063
9018305032
main90183-05032
9018305094
main90183-05094
9018305103
main90183-05103
9024904057
main90249-04057
9046714013
main90467-14013
9046804160
main90468-04160
9046804177
main90468-04177
9054103015
main90541-03015
9054105020
main90541-05020
9090119021
main90901-19021
9162660820
main91626-60820
9353054010
main93530-54010
9356755014
main93567-55014
9356755016
main93567-55016
45 parts on this diagram · 2 diagrams in section
