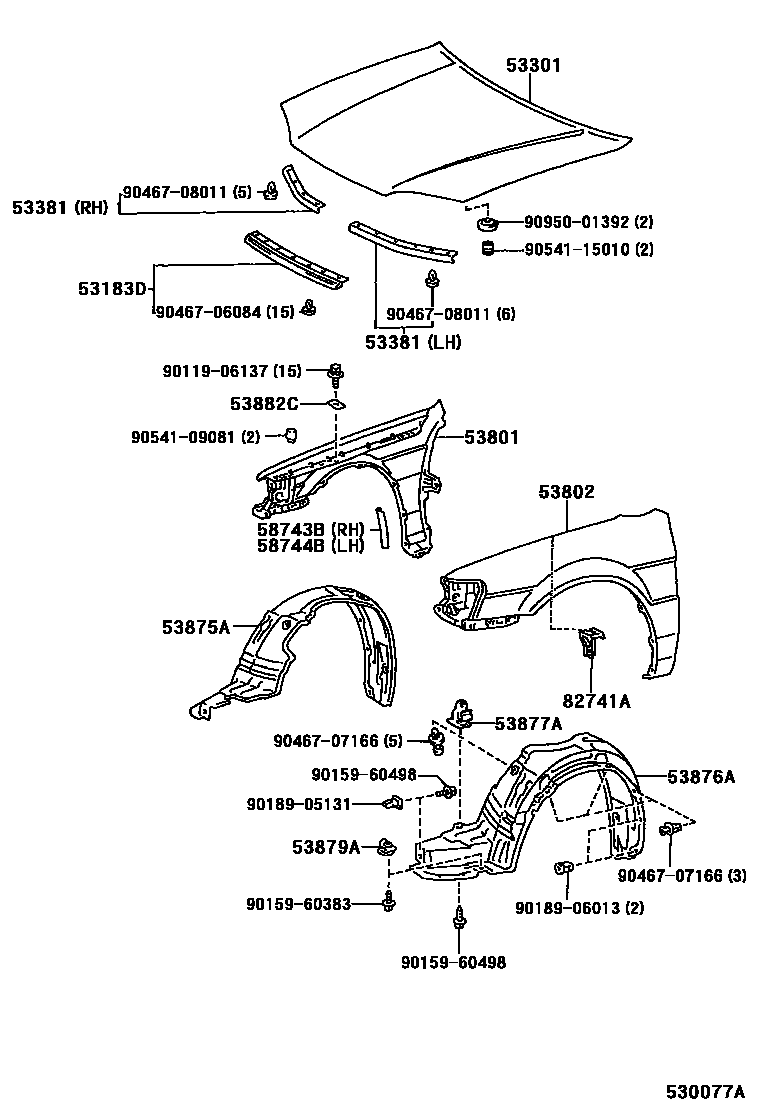

HOOD & FRONT FENDER
53183DSEAL, HEADLAMP COVER TO HOOD
53301HOOD SUB-ASSY
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53877ABRACKET, FRONT FENDER SPLASH SHIELD
53879ARETAINER, FRONT FENDER LINER
53882CSEAL, FRONT FENDER MAIN
58743BPROTECTER, FRONT FENDER PANEL, RH
58744BPROTECTER, FRONT FENDER PANEL, LH
82741ABRACKET, ENGINE ROOM RELAY BLOCK
9011906137
main90119-06137
9015960383
main90159-60383
9015960498
main90159-60498
9018905131
main90189-05131
9018906013
main90189-06013
9046706084
main90467-06084
9046707166
main90467-07166
9046708011
main90467-08011
9054109081
main90541-09081
9054115010
main90541-15010
9095001392
main90950-01392
24 parts on this diagram · 1 diagram in section
