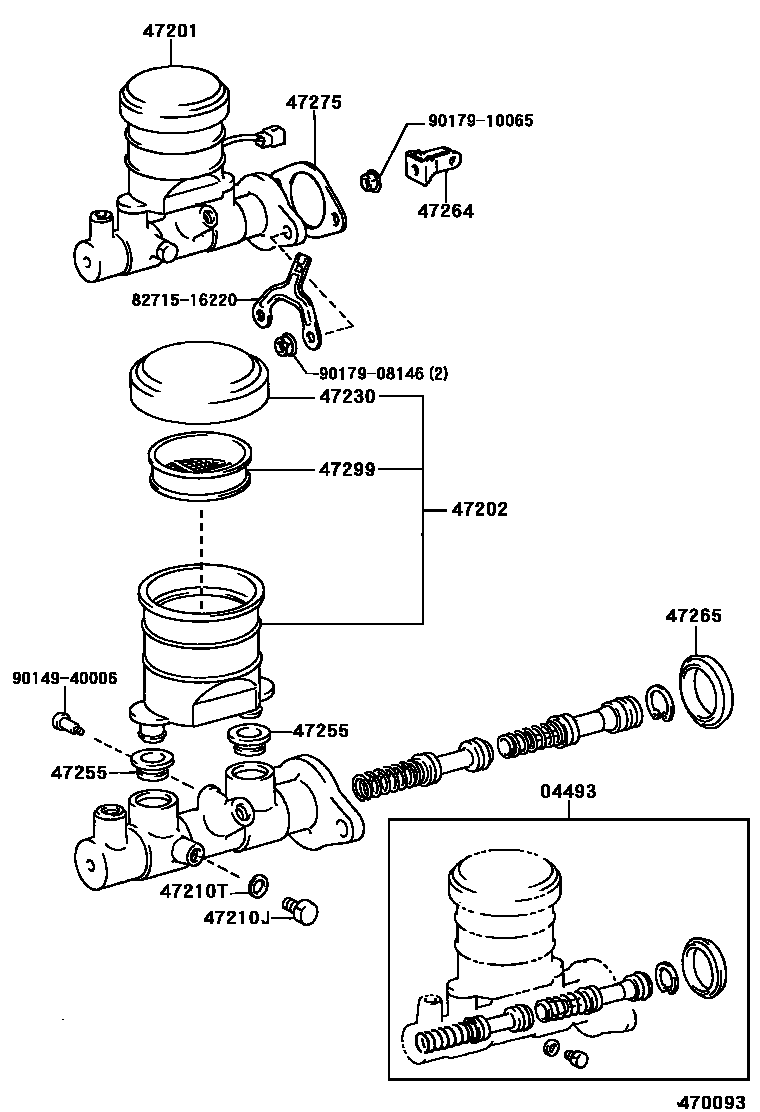

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-10190iEL54199602

main04493-16080iEL54199712-199802

W(ABS)

main04493-16090iEL54..CVT199508-199802

W(ABS)

main04493-16100iEL54199508-199602

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-10230iEL54199602

sub47201-10210

main47201-16260iEL54..CVT199508-199802

W(ABS)

main47201-16270iEL54199508-199602

main47201-16440iEL54199712-199802

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-16050iEL54..CVT199609

main47220-16050iEL54..CP199508

W(ABS)

main47220-16060iEL54199508-199602

47210JGASKET(FOR MASTER CYLINDER)

main90430-06002iEL54199508-199602

main90430-06104iEL54..CP199508

W(ABS)

main90430-06104iEL54..CVT199609

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEL54..CP199508

W(ABS)

main90109-06077iEL54..CVT199609

main90109-06123iEL54199508-199602

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-16010iEL54..CP199508

W(ABS)

main47230-16010iEL54..CVT199609

main47230-16270iEL54199508-199602

sub47230-16010

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iEL54..CP199508

W(ABS)

main47255-16010iEL54..CVT199609

main47255-20010iEL54199508-199602

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20070iEL54199508

47265BOOT, MASTER CYLINDER

main47265-20080iEL54199508-199602

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iEL54199508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iEL54..CP199508

W(ABS)

main47299-16010iEL54..CVT199609

main47299-16020iEL54199508-199602

8271516220BRACKET,WIRING HARNESS CLAMP

main82715-16220

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 1 diagram in section
