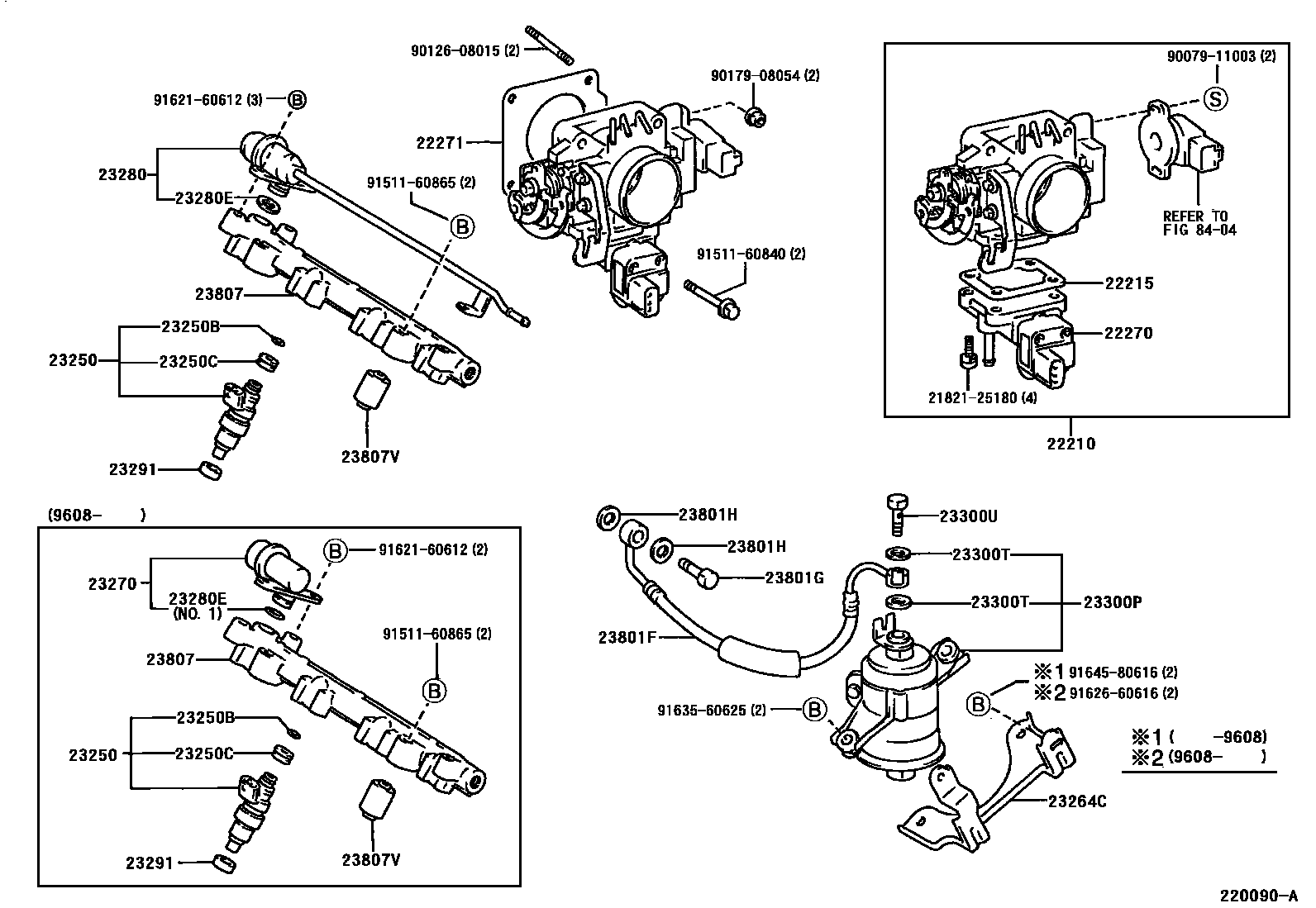

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23264CBRACKET, FUEL FILTER
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
NO.1
NO.2
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23807PIPE SUB-ASSY, FUEL DELIVERY
sub23814-11071
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911003
main90079-11003
9012608015
main90126-08015
9017908054
main90179-08054
9151160840
main91511-60840
9151160865
main91511-60865
9162160612
main91621-60612
9162660616
main91626-60616
9163560625
main91635-60625
9164580616
main91645-80616
31 parts on this diagram · 2 diagrams in section
