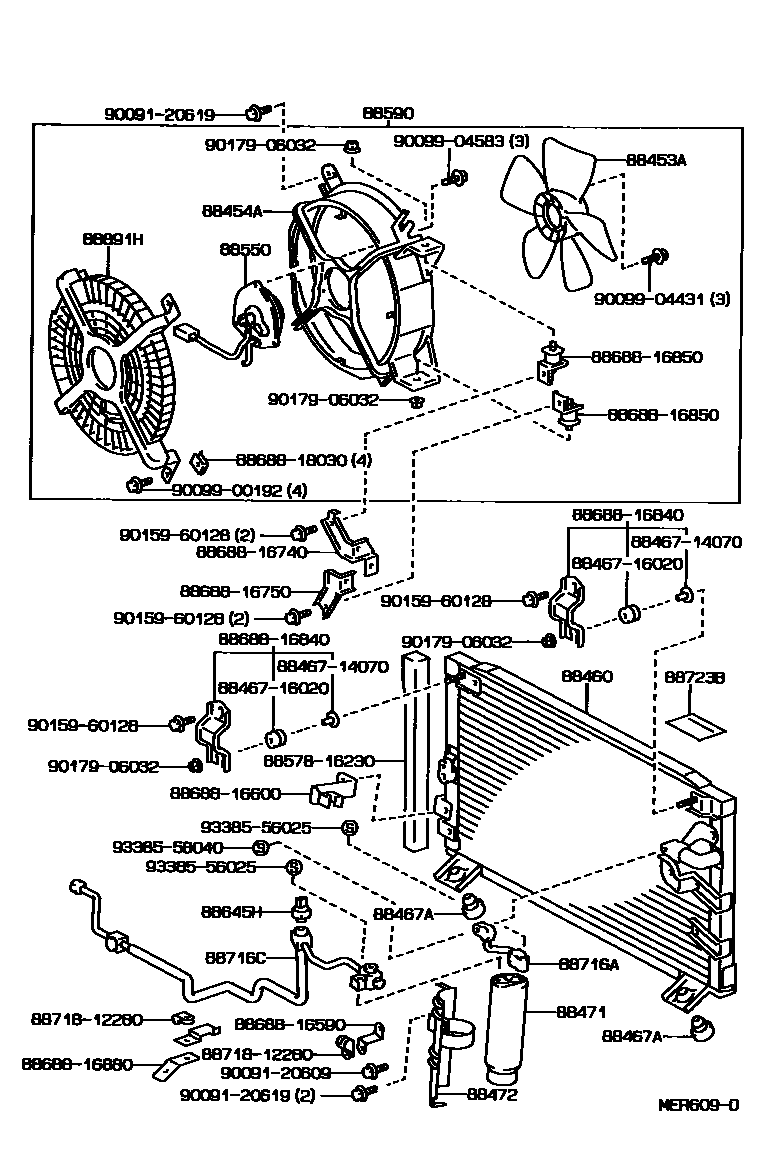

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

88453AFAN, COOLING

main16361-55040iEL44..USA199104-199508

88454ASHROUD, FAN

main16711-55110iEL44199104-199409

sub16711-55111

main16711-55111iEL44..USA199409-199508

88460CONDENSER ASSY, COOLER

main88460-16260iEL44199104-199208

main88460-16290iEL44..USA199208-199308

main88460-16291iEL44..USA199308-199508

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-10020iEL44..CND199104-199308

main88467-10020iEL44199308-199508

DEALER OPTION

main88467-16090iEL44..USA199104-199308

main88467-16090iEL44..USA199308-199508

MAKER OPTION

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iEL44199104-199308

sub88471-16050

main88471-34010iEL44..CND199308-199508

88472BRACKET, RECEIVER TANK, NO.1

main88472-16110iEL44199104-199208

main88472-16120iEL44..USA199208-199508

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-55020iEL44..CND199104-199508

88590BLOWER ASSY, W/SHROUD

main16370-55030iEL44..CND199208-199508

main88590-16080iEL44199104-199208

sub88590-16081

main88590-16081iEL44..USA199208-199508

main88590-16081iEL44..CND199208-199508

CHILE SPEC

88645HSWITCH, PRESSURE NO.1

main88645-10030iEL44199104-199308

main88645-20050iEL44..USA199308-199508

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-16530iEL44199104-199208

sub88716-1G300

main88716-16531iEL44..USA199208-199308

sub88716-1G310

main88716-16532iEL44..USA199308-199508

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-16690iEL44..USA199208-199308

main88716-16691iEL44199308-199508

main88716-16710iEL44199104-199208

main88716-16810iEL44..USA199208-199308

W(ABS) OR W(CRUISE CONTROL)

main88716-16811iEL44..USA199308-199409

W(CRUISE CONTROL)

main88716-16811iEL44..CND199308-199508

W(ABS) OR W(CRUISE CONTROL)

88723BLABEL, COOLER SERVICE CAUTION

main88723-16020iEL44199207-199308

main88723-16021iEL44..CND199308-199508

ENGLISH

main88723-16021iEL44..CND199308-199508

CHILE SPEC

main88723-16021iEL44..USA199308-199508

main88723-16040iEL44..CND199308-199508

FRENCH

main88723-20020iEL44199104-199208

88891HCOVER, COOLER, NO.1

main88891-16040iEL44199104-199508

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8846716020CUSHION, COOLER CONDENSER, NO.1

main88467-16020

8857816230PAKING, COOLER AIR DUCT

main88578-16230

8868816590BRACKET, COOLER DIAPHRAGM

main88688-16590

8868816600BRACKET, COOLER DIAPHRAGM

main88688-16600

8868816740BRACKET, COOLER DIAPHRAGM

main88688-16740

8868816750BRACKET, COOLER DIAPHRAGM

main88688-16750

8868816840BRACKET, COOLER DIAPHRAGM

main88688-16840

8868816850BRACKET, COOLER DIAPHRAGM

main88688-16850

8868816880BRACKET, COOLER DIAPHRAGM

main88688-16880

8868818030BRACKET, COOLER DIAPHRAGM

main88688-18030

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

9009120609

main90091-20609

9009120619

main90091-20619

9009900192

main90099-00192

9009904431

main90099-04431

9009904583

main90099-04583

9015960128

main90159-60128

9017906032

main90179-06032

9338556025

main93385-56025

9338558040

main93385-58040
