WINDSHIELD WIPER

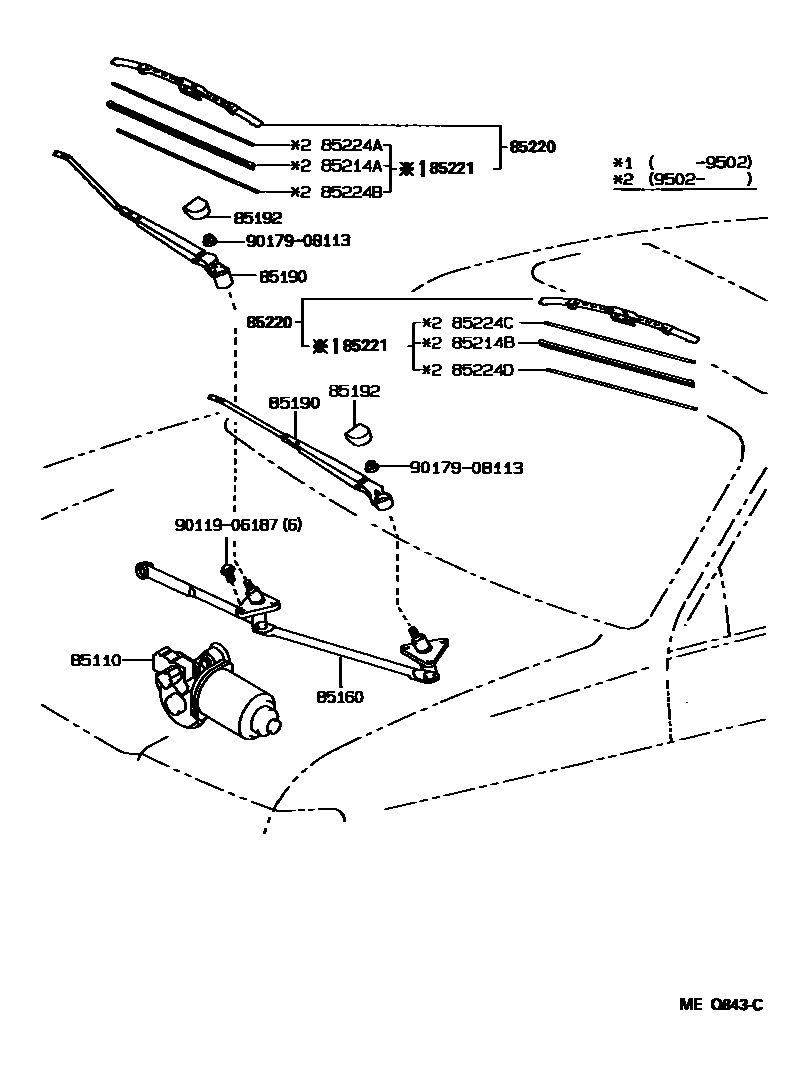

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-16460i199104-199208
main85110-16470i199104-199208
COLD SPEC
main85110-16541i199401-199508
CHILE SPEC OR BRAZIL SPEC
sub85110-16610
main85110-16541i199208-199401
CHILE SPEC
sub85110-16610
main85110-16541i199208-199508
sub85110-16610
main85110-16550i199208-199508
COLD SPEC
85160LINK ASSY, WINDSHIELD WIPER
main85150-16450i199104-199208
main85150-16451i199401-199409
CHILE SPEC OR BRAZIL SPEC
sub85150-16452
main85150-16451i199208-199409
sub85150-16452
main85150-16451i199208-199401
CHILE SPEC
sub85150-16452
main85150-16452i199409-199508
CHILE SPEC OR BRAZIL SPEC
main85150-16460i199104-199207
COLD SPEC
sub85150-16461
main85150-16461i199207-199409
COLD SPEC
sub85150-16462
main85150-16462i199409-199508
COLD SPEC
85190ARM ASSY, WINDSHIELD WIPER
main85211-16110i199104-199111
RH
sub85211-16111
main85211-16111i199111-199508
RH
main85221-16130i199104-199111
LH
sub85221-16131
main85221-16131i199111-199508
LH
85192COVER, WINDSHIELD WIPER ARM
main85192-12800i199104-199111
main85292-12020i199111-199508
85214ARUBBER, WIPER, RH
main85214-20330i199502-199508
85214BRUBBER, WIPER, LH
main85214-33050i199502-199508
sub85214-40080
85220BLADE ASSY, WINDSHIELD WIPER
main85212-16090i199104-199111
RH
sub85212-20301
main85212-16091i199111-199211
RH
sub85212-16092
main85212-16092i199211-199508
RH
sub85212-30271
main85222-1G030i199104-199111
LH
sub85222-1G031
main85222-1G031i199111-199211
LH
sub85222-1G032
main85222-1G032i199211-199508
LH
sub85222-20420
85221BLADE, WINDSHIELD WIPER
main85213-16080i199104-199112
RH
sub85214-20330
main85213-16100i199112-199211
RH
sub85213-30270
main85213-30270i199211-199502
RH
sub85214-20330
main85213-32240i199208-199211
LH
sub85213-20310
main85223-1G020i199104-199208
LH
sub85213-32240
main85223-33022i199211-199502
LH
sub85214-33050
85224APLATE, WIPER RUBBER BACKING, NO.1
main85224-30430i199502-199508
85224BPLATE, WIPER RUBBER BACKING, NO.2
main85224-30420i199502-199508
85224CPLATE, WIPER RUBBER BACKING, NO.3
main85224-33050i199502-199508
85224DPLATE, WIPER RUBBER BACKING, NO.4
main85224-33050i199502-199508
9011906187
main90119-06187
9017908113
main90179-08113

14 parts on this diagram · 1 diagram in section
