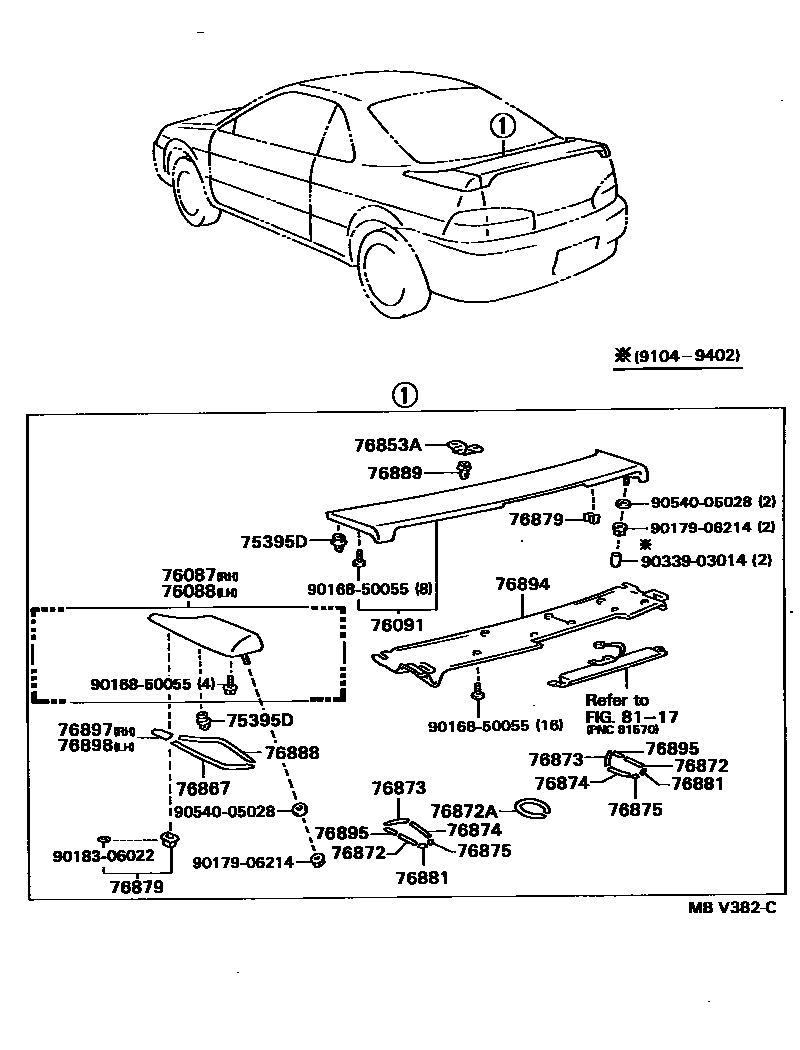

MUDGUARD & SPOILER

75395DCLIP, OUTSIDE MOULDING, NO.1

main75395-16030iEL44199104-199508

76087SPOILER SUB-ASSY, REAR NO.1

main76087-16900iEL44199104-199508

76088SPOILER SUB-ASSY, REAR NO.2

main76088-16900iEL44199104-199508

76091SPOILER SUB-ASSY, REAR UPPER

main76091-16900iEL44199104-199508

76853ARETAINER, FRONT SPOILER, UPPER NO.1

main76865-16060iEL44199104-199508

76867RETAINER, REAR SPOILER SIDE, RH

main76887-16020iEL44199104-199508

sub90999-91056

76872PROTECTOR, REAR SPOILER, NO.1

main76872-16040iEL44199104-199508

sub90999-91054

76872APROTECTOR, REAR SPOILER, NO.1

main76872-16060iEL44199104-199508

76873PROTECTOR, REAR SPOILER, NO.2

main76873-16060iEL44199104-199508

sub90999-91053

76874PROTECTOR, REAR SPOILER, NO.3

main76874-16050iEL44199104-199301

sub90999-91054

76875PROTECTOR, REAR SPOILER, NO.4

main76875-16020iEL44199104-199508

sub90999-91053

76879CLIP, REAR SPOILER, NO.1

main76879-16010iEL44199104-199508

RH,LH

main76879-20030iEL44199104-199508

CTR

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-16020iEL44199104-199508

sub90999-91053

76888PROTECTOR, REAR SPOILER SIDE, NO.3

main76888-16010iEL44199104-199305

sub76888-16011

main76888-16011iEL44199305-199508

sub90999-91053

76889CLIP, REAR SPOILER, NO.2

main76889-16040iEL44199104-199508

76894COVER, REAR SPOILER, LH

main76894-16900iEL44199104-199508

76895PROTECTOR, REAR SPOILER, NO.5

main76895-16010iEL44199104-199301

sub90999-91053

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-16020iEL44199104-199508

76898PROTECTOR, REAR SPOILER, SIDE LH

main76897-16020iEL44199212-199508

main76898-16020iEL44199104-199212

sub76897-16020

8117

9016850055

main90168-50055

9017906214

main90179-06214

9018306022

main90183-06022

9033903014

main90339-03014

9054005028

main90540-05028

25 parts on this diagram · 1 diagram in section
