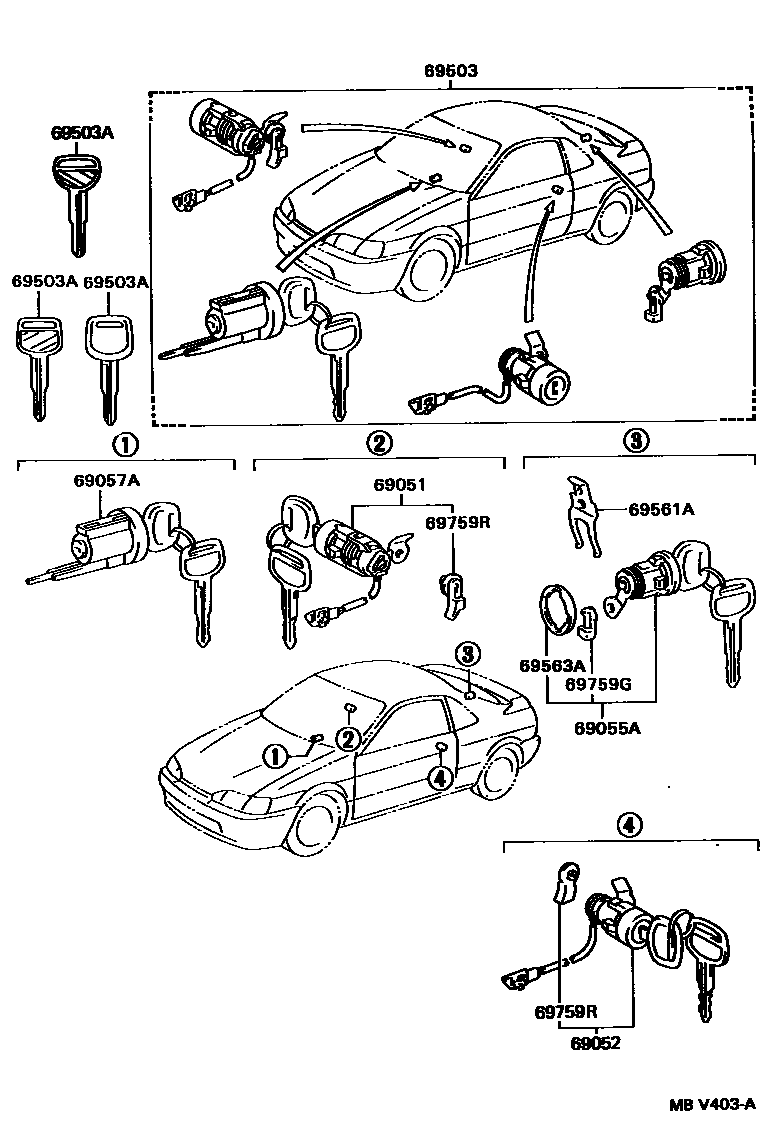

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
PUERTORICO PACKAGE
69052CYLINDER & KEY SET, DOOR LOCK, LH
PUERTORICO PACKAGE
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
PUERTORICO PACKAGE,BLACK,TRIM2#,8#&205 ,3E5 ,3H4 ,4L8 ,746 ,8J2
sub69055-16350
PUERTORICO PACKAGE,SILVER,040 ,176 ,3E5 ,3K4 ,8J2 ,924
sub69055-16350
PUERTORICO PACKAGE,BLACK,205 ,3E5 ,3L3 ,6N7 ,746
sub69055-16350
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
sub69057-16220
69503CYLINDER SET, LOCK
PUERTORICO PACKAGE,BLACK,TRIM2#,8#&205 ,3E5 ,3H4 ,4L8 ,746 ,8J2
sub69005-16790
PUERTORICO PACKAGE,SILVER,040 ,176 ,3E5 ,3K4 ,8J2 ,924
sub69005-16790
PUERTORICO PACKAGE,BLACK,205 ,3E5 ,3L3 ,6N7 ,746
sub69005-16790
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY
SUB KEY
69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
BROWN
69759RSNAP, FRONT DOOR LOCK CYLINDER
PUERTORICO PACKAGE,WHITE
YELLOW
10 parts on this diagram · 1 diagram in section
