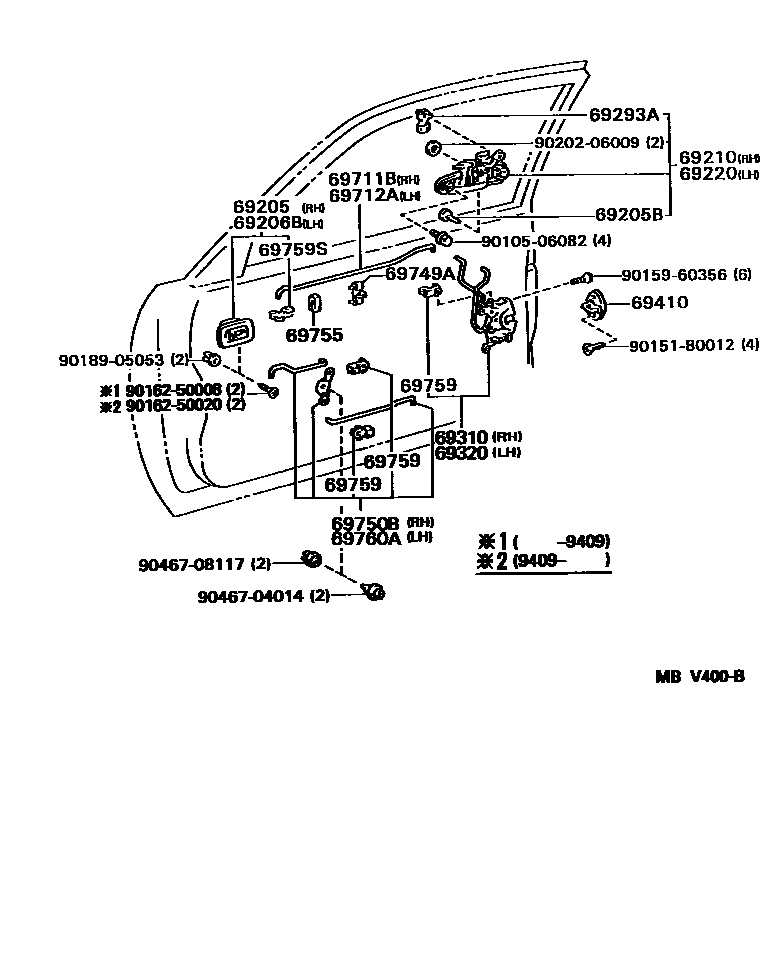

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
RH
69310LOCK ASSY, FRONT DOOR, RH
PUERTORICO PACKAGE
PUERTORICO PACKAGE
69320LOCK ASSY, FRONT DOOR, LH
PUERTORICO PACKAGE
PUERTORICO PACKAGE
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69755SILENCER, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
WHITE
BLUE
YELLOW
BROWN
ORANGE
PINK
RED
BLACK
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
LH
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
9010506082
main90105-06082
9015180012
main90151-80012
9015960356
main90159-60356
9016250008
main90162-50008
9016250020
main90162-50020
9018905053
main90189-05053
9020206009
main90202-06009
9046704014
main90467-04014
9046708117
main90467-08117
26 parts on this diagram · 1 diagram in section
