SIDE MEMBER
58741BPROTECTOR, QUARTER PANEL, RH
58742BPROTECTOR, QUARTER PANEL, LH
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61113APANEL, SIDE, OUTER NO.2 RH
61114BPANEL, SIDE, OUTER NO.2 LH
61197BCOVER, FRONT PILLAR SERVICE HOLE, NO.2 RH
61198BCOVER, FRONT PILLAR SERVICE HOLE, NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61327REINFORCEMENT, CENTER BODY PILLAR, OUTER RH
61328REINFORCEMENT, CENTER BODY PILLAR, OUTER LH
61335BRETAINER, SEAT BELT ANCHOR
61335DRETAINER, SEAT BELT ANCHOR
61363BREINFORCEMENT, SEAT BELT ANCHOR SIDE, RH
61606EPANEL, QUARTER, LH
61611PANEL, QUARTER, RH
W(REAR SPOILER)
61612PANEL, QUARTER, LH
W(REAR SPOILER)
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61737BPANEL, ROOF SIDE, INNER LOWER RH
61738BPANEL, ROOF SIDE, INNER LOWER LH
61753CRETAINER, QUARTER TRIM, LOWER
61753DRETAINER, QUARTER TRIM, LOWER
61824CPAD, NOISE SHUTTER, NO.1
61825APLATE, NOISE CONTROL, NO.2
61825CPAD, NOISE SHUTTER, NO.2
61826APLATE, NOISE CONTROL, NO.3
61827APLATE, NOISE CONTROL, NO.4
62151BPAD, COWL SIDE SILENCER
63344FPAD, ROOF SILENCER, NO.4
63344GPAD, ROOF SILENCER, NO.4
9011911024
main90119-11024
9017908102
main90179-08102
9033330004
main90333-30004
9095001327
main90950-01327
9095001362
main90950-01362
9095001398
main90950-01398
9095001637
main90950-01637
9095001850
main90950-01850
9095006089
main90950-06089
9166560820
main91665-60820

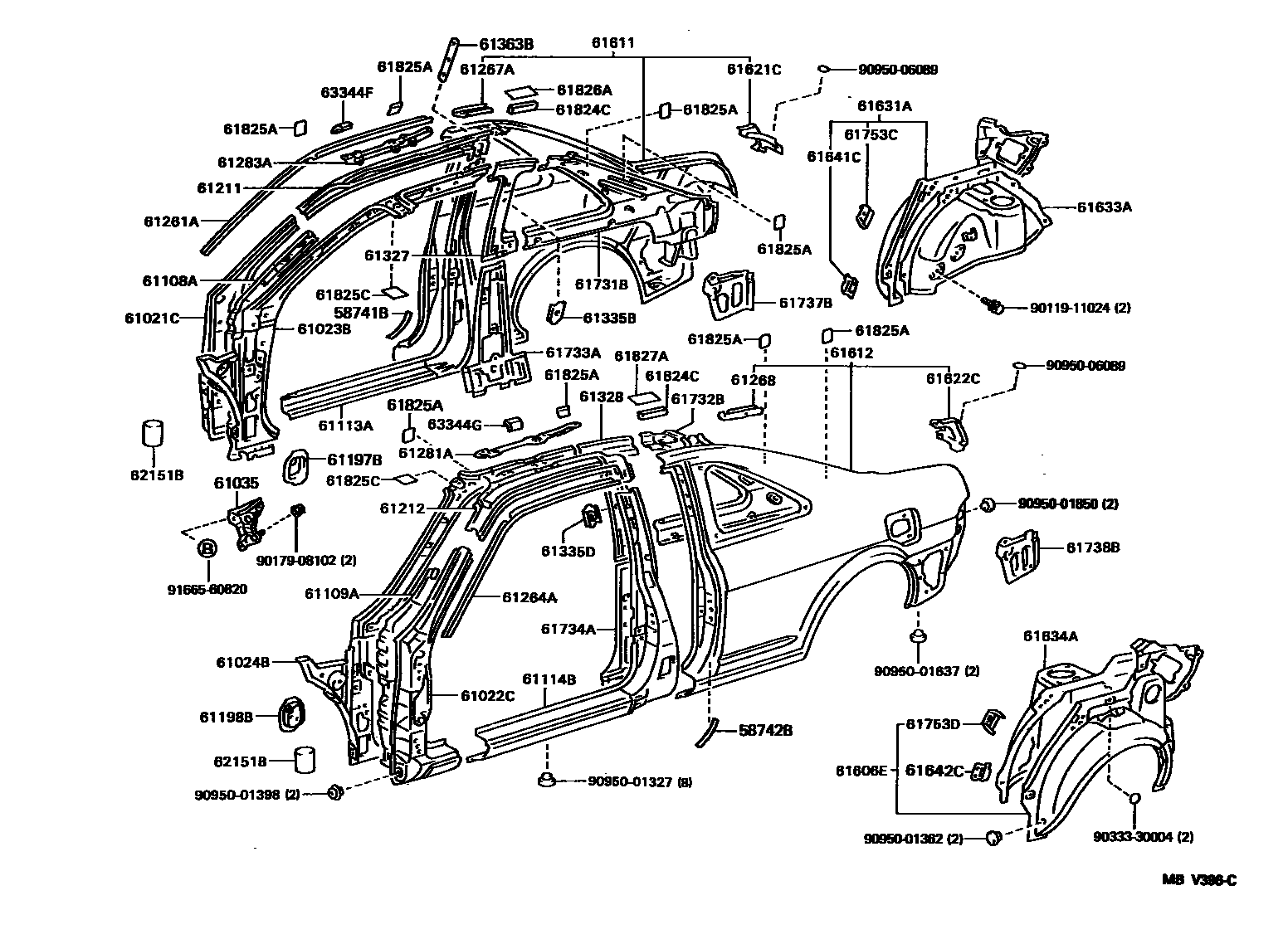

62 parts on this diagram · 1 diagram in section
