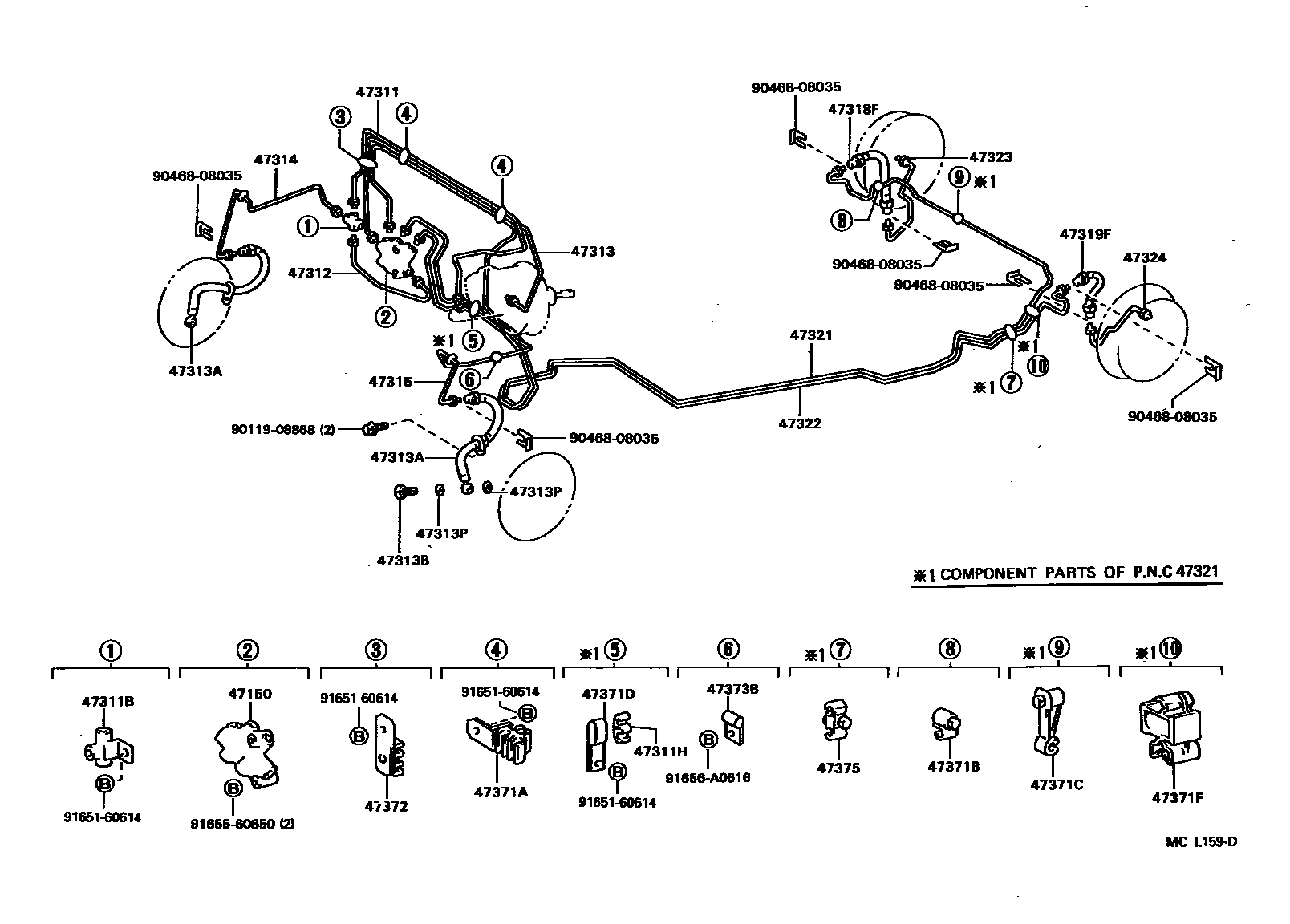

BRAKE TUBE & CLAMP

0001 1 0002 1W(ANTILOCK BRAKING SYSTEM) 0003 1W(ANTILOCK BRAKING SYSTEM)

47150VALVE ASSY, PROPORTIONING

main47150-12050iEL44199104-199508

sub47150-12230

main47150-12150iEL44199208-199508

W(*66)

47311TUBE, FRONT BRAKE, NO.1

main47311-16110iEL44199409-199508

main47311-16150iEL44199208-199409

W(*66)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-16010iEL44199209-199409

W(*66)

main47391-16020iEL44199409-199508

W(*66)

main90412-10175iEL44199208-199209

W(*66)

main90413-10004iEL44199104-199409

47311HGROMMET(FOR BRAKE TUBE)

main90480-01122iEL44199104-199409

47312TUBE, FRONT BRAKE, NO.2

main47312-16090iEL44199409-199508

main47312-16130iEL44199409-199508

W(*66)

47313TUBE, FRONT BRAKE, NO.3

main47313-16110iEL44199409-199508

main47313-16150iEL44199208-199409

W(*66)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02635iEL44199104-199208

RH

main90947-02636iEL44199104-199208

LH

main90947-02718iEL44199208-199409

RH

main90947-02719iEL44199208-199409

LH

main90947-02813iEL44199409-199508

RH

main90947-02814iEL44199409-199508

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iEL44199104-199508

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iEL44199104-199508

47314TUBE, FRONT BRAKE, NO.4

main47314-10230iEL44199208-199409

W(*66)

main47314-16100iEL44199104-199409

47315TUBE, FRONT BRAKE, NO.5

main47315-16070iEL44199409-199508

main47315-16110iEL44199208-199211

W(*66)

main47315-16111iEL44199211-199409

W(*66)

47318TUBE, FRONT BRAKE, NO.8

main47318-16020iEL44199208-199211

main47318-16021iEL44199211-199409

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02637iEL44199104-199508

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02637iEL44199104-199508

47321TUBE, REAR BRAKE, NO.1

main47321-16080iEL44199104-199409

main47321-16110iEL44199409-199508

47322TUBE, REAR BRAKE, NO.2

main47322-16070iEL44199104-199409

main47322-16100iEL44199409-199508

47323TUBE, REAR BRAKE, NO.3

main47323-16140iEL44199104-199409

main47323-16170iEL44199409-199508

47324TUBE, REAR BRAKE, NO.4

main47324-16130iEL44199104-199409

main47324-16160iEL44199409-199508

47371ACLAMP, BRAKE TUBE, NO.1

main47371-10010iEL44199208-199409

W(*66)

main47371-10030×2iEL44199104-199409

47371BCLAMP, BRAKE TUBE, NO.6

main47371-10100iEL44199104-199409

47371CCLAMP, BRAKE TUBE, NO.7

main47371-10110iEL44199104-199409

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01703iEL44199104-199409

47371FCLAMP, BRAKE TUBE, NO.10

main47371-16020iEL44199104-199409

47372CLAMP, BRAKE TUBE, NO.2

main47371-10030×2iEL44199208-199409

W(*66)

main47371-10140iEL44199104-199409

47373BCLAMP, BRAKE TUBE, NO.3

main47371-10040iEL44199409-199508

W(*66)

main90461-06902×2iEL44199409-199508

47375CLAMP, BRAKE TUBE, NO.5

main47371-10080iEL44199104-199409

9011908868

main90119-08868

9046808035

main90468-08035

9165160614

main91651-60614

9165560650

main91655-60650

91656A0616

main91656-A0616

31 parts on this diagram · 3 diagrams in section
