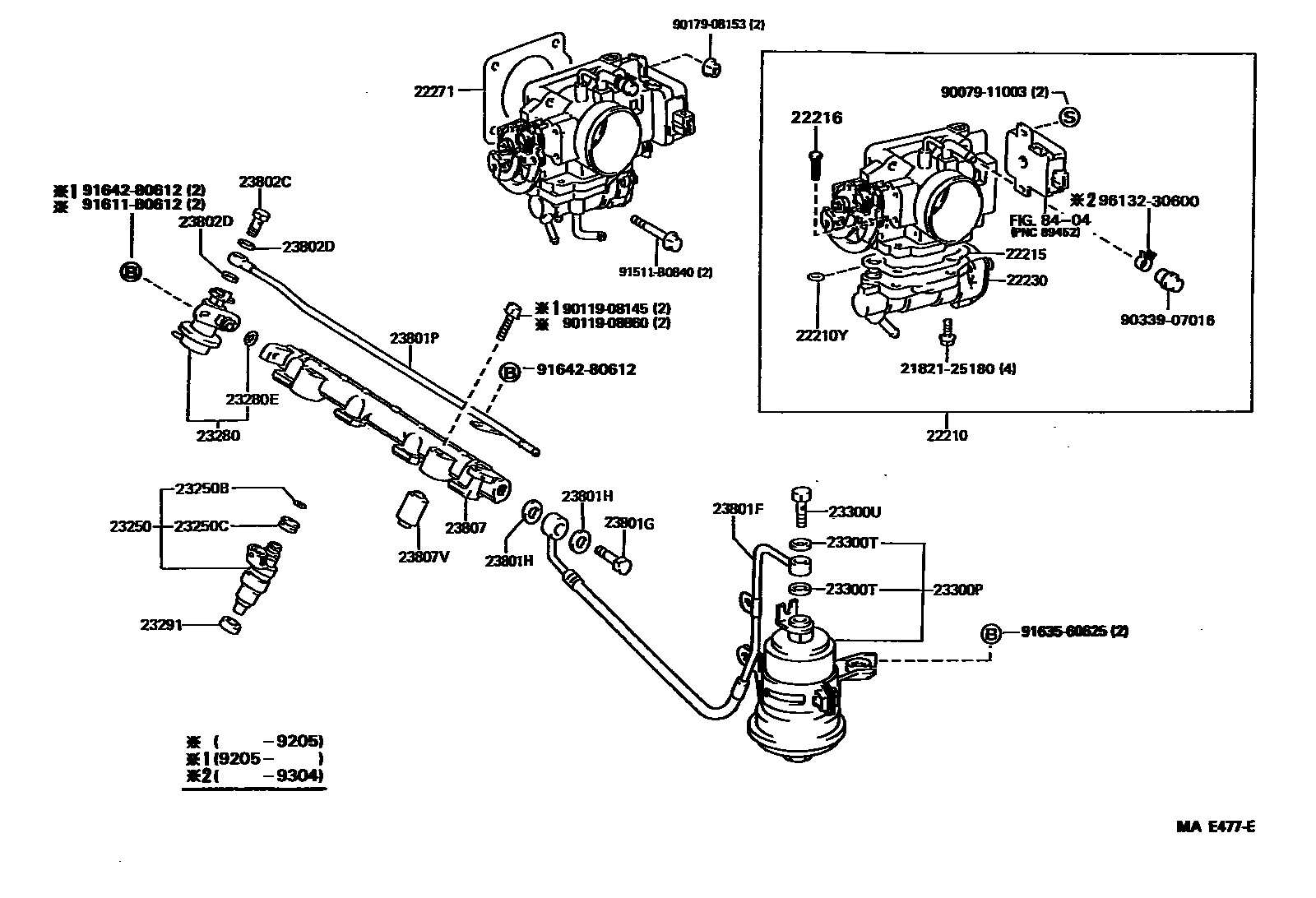

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
CALIFORNIA PACKAGE
CALIFORNIA PACKAGE
CALIFORNIA PACKAGE
22210YRING, O(FOR AIR TUBE)
22215GASKET, THROTTLE BODY COVER
CALIFORNIA SPEC
22216SCREW, DASH POT ADJUSTING
CALIFORNIA PACKAGE
22230VALVE ASSY, AUXILIARY AIR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
CALIFORNIA SPEC
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
CHILE SPEC
CALIFORNIA SPEC
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801FHOSE, FUEL, NO.1
CALIFORNIA SPEC
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
CALIFORNIA SPEC
8404
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911003
main90079-11003
9011908145
main90119-08145
9011908860
main90119-08860
9017908153
main90179-08153
9033907016
main90339-07016
91511B0840
main91511-B0840
91611B0612
main91611-B0612
9163560625
main91635-60625
9164280612
main91642-80612
9613230600
main96132-30600
35 parts on this diagram · 3 diagrams in section
