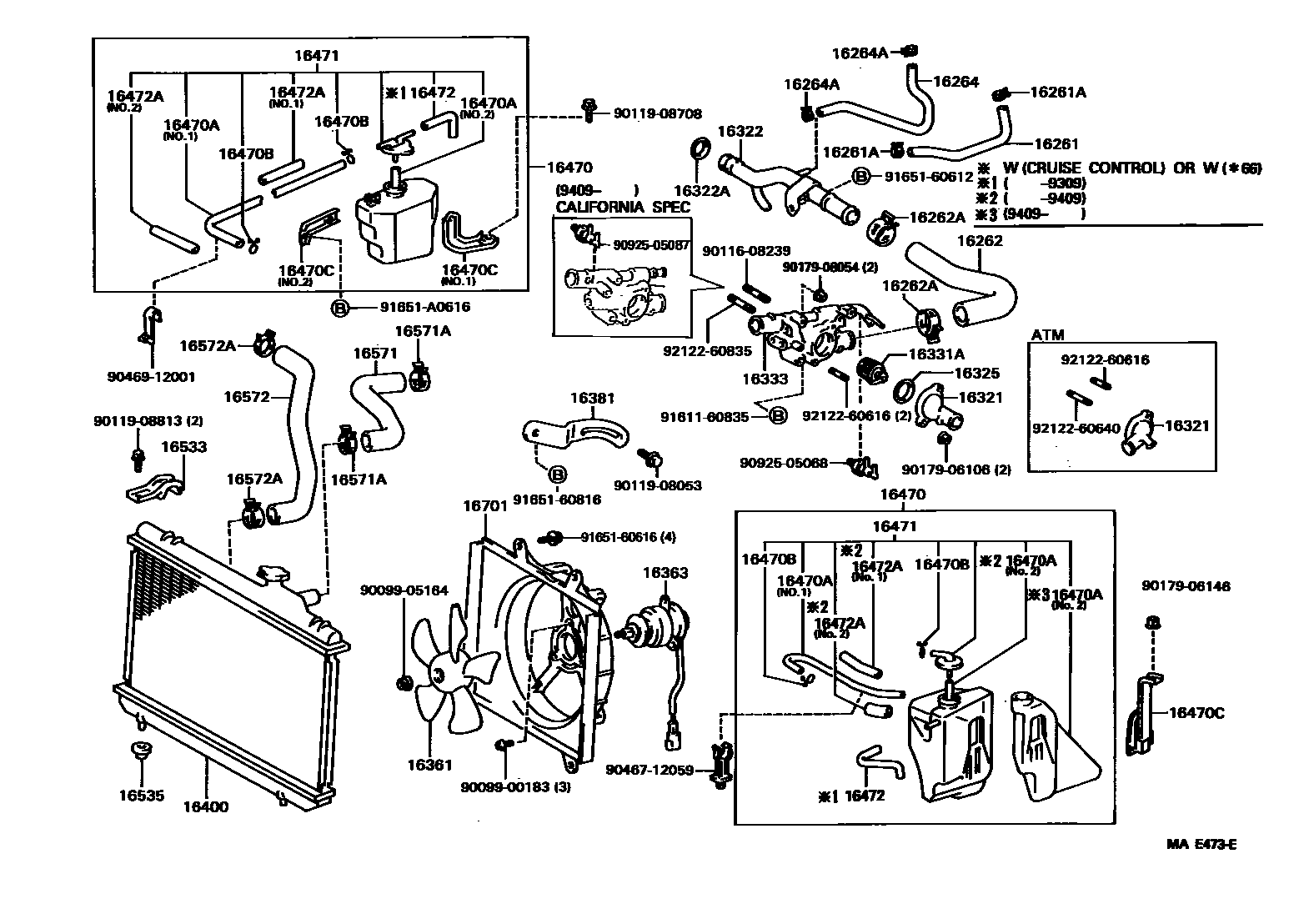

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
L=300,CALIFORNIA SPEC
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51100
16262ACLIP(FOR WATER INLET HOSE)
sub90467-34004
16264HOSE, WATER BY-PASS, NO.2
CALIFORNIA SPEC
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51100
16321INLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16333HOUSING, WATER OUTLET
CALIFORNIA SPEC
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
16470TANK ASSY, RADIATOR RESERVE
W(CRUISE CONTROL)
W(CRUISE CONTROL)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
W(CRUISE CONTROL) OR W(*66),NO.1
W(CRUISE CONTROL),NO.1
L=1000,NO.1
L=600,NO.2
L=600,W(CRUISE CONTROL) OR W(*66),NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
NO.1
NO.2
W(CRUISE CONTROL)
W(CRUISE CONTROL) OR W(*66)
16471CAP SUB-ASSY, RESERVE TANK
W(CRUISE CONTROL)
W(CRUISE CONTROL)
16472HOSE, BREATHER
W(CRUISE CONTROL)
16472APROTECTOR, HOSE
NO.1
W(CRUIS CONTROL),NO.1
W(CRUISE CONTROL),NO.1
W(CRUIS CONTROL),NO.2
W(CRUISE CONTROL),NO.2
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
CALIFORNIA SPEC
CALIFORNIA SPEC
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701SHROUD SUB-ASSY, FAN
CALIFORNIA SPEC
CALIFORNIA SPEC
9009900183
main90099-00183
9009905164
main90099-05164
9011608239
main90116-08239
9011908053
main90119-08053
9011908708
main90119-08708
9011908813
main90119-08813
9017906106
main90179-06106
9017906146
main90179-06146
9017908054
main90179-08054
9046712059
main90467-12059
9046912001
main90469-12001
9092505068
main90925-05068
9092505087
main90925-05087
9161160835
main91611-60835
9165160612
main91651-60612
9165160616
main91651-60616
9165160816
main91651-60816
91651A0616
main91651-A0616
9212260616
main92122-60616
9212260640
main92122-60640
9212260835
main92122-60835
51 parts on this diagram · 2 diagrams in section
