VENTILATION HOSE

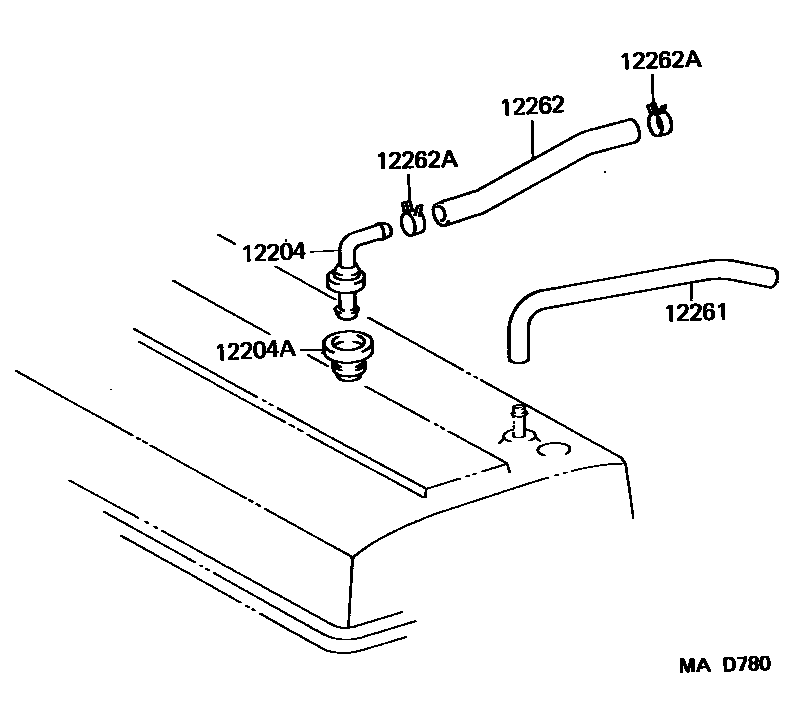

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-10020i199104-199306
sub12204-10030
main12204-10030i199409-199508
main12204-10040i199409-199508
CALIFORNIA SPEC
12204AGROMMET(FOR VENTILATION SYSTEM)
main90480-18006i199104-199508
12261HOSE, VENTILATION
main12261-11160i199104-199508
main12261-11170i199208-199508
main12261-11170i199104-199409
CARIFORNIA PACKAGE
main12261-11190i199409-199508
CARIFORNIA PACKAGE
12262HOSE, VENTILATION, NO.2
main12262-11050i199104-199508
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13036i199104-199105
sub90467-13001
main90467-14001i199505-199508
main90467-14043i199105-199505

5 parts on this diagram · 1 diagram in section
