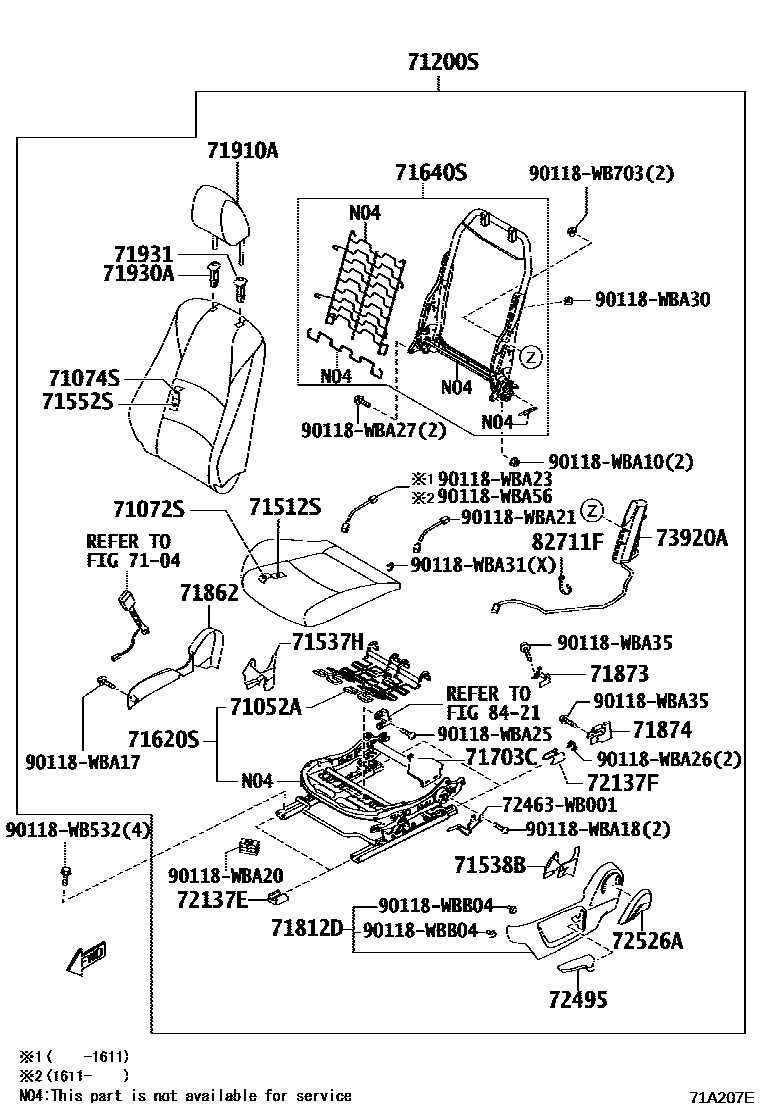

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-WB001iDB7P,DD1B,DM0S,0T201506-201808

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-WB001iDB7P,DD1B,DM0S,0T201506-201711

BLUE/BLACK,TRIM70

sub71072-WB003

main71072-WB002iDB7P,DD1B,DM0S,0T201506-201711

TINTED GRAY/BLACK,TRIM80

main71072-WB003iDM0#201711-201808

BLUE/BLACK,TRIM70

sub71072-WB009

main71072-WB004iDM0#201711-201808

TINTED GRAY/BLACK,TRIM80

sub71072-WB010

main71072-WB006iDAEA1,DAEC1,DDF5..HI..USA201808

BLACK,TRIM30

main71072-WB007iDAEA1,DAEC1,DDF5..HI..USA201808

GRAY,TRIM40

main71072-WB008iDDF4;DAEA1..C,D;DDF5..A,B,D,E,F,G;DADW1,DAEB1,DAEC1,DAED1,DAEE1,DDF8,9..A,B,C,E,F201808

GRAY,TRIM20

main71072-WB009iDDF4;DAEA1..C,D;DDF5..A,B,D,E,F,G;DADW1,DAEB1,DAEC1,DAED1,DAEE1,DDF8,9..A,B,C,E,F201808

BLUE/BLACK,TRIM10

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-WB001iDB7P,DD1B,DM0S,0T201506-201711

BLUE/BLACK,TRIM70

sub71074-WB005

main71074-WB002iDB7P,DD1B,DM0S,0T201506-201711

TINTED GRAY/BLACK,TRIM80

main71074-WB003iDD1C,1D,DM0V,0W201508-201711

BLUE/BLACK,TRIM70

main71074-WB004iDD1C,1D,DM0V,0W201508-201711

TINTED GRAY/BLACK,TRIM80

main71074-WB005iDM0S,0T201711-201808

BLUE/BLACK,TRIM70

sub71074-WB014

main71074-WB006iDM0S,0T201711-201808

TINTED GRAY/BLACK,TRIM80

main71074-WB007iDM0V,0W201711-201808

BLUE/BLACK,TRIM70

main71074-WB008iDM0V,0W201711-201808

TINTED GRAY/BLACK,TRIM80

main71074-WB011iDAEA1,DAEC1,DDF5..HI..USA201808

BLACK,TRIM30

main71074-WB012iDAEA1,DAEC1,DDF5..HI..USA201808

GRAY,TRIM40

main71074-WB013iDDF4;DAEA1..C,D;DDF5..A,B,D,E,F,G;DADW1,DAEB1,DAEC1,DAED1,DAEE1,DDF8,9..A,B,C,E,F201808

GRAY,TRIM20

main71074-WB014iDDF4;DAEA1..C,D;DDF5..A,B,D,E,F,G;DADW1,DAEB1,DAEC1,DAED1,DAEE1,DDF8,9..A,B,C,E,F201808

BLUE/BLACK,TRIM10

71200SSEAT ASSY, FRONT LH

main71200-WB001iDD1B;DB7P..PUE,USA;DB7P..BASE..CND201506-201511

BLUE/BLACK,TRIM70

sub71200-WB010

main71200-WB002iDD1B;DB7P..PUE,USA;DB7P..BASE..CND201506-201511

TINTED GRAY/BLACK,TRIM80

sub71200-WB011

main71200-WB003iDD1C,1D..BASE201508-201511

BLUE/BLACK,TRIM70

sub71200-WB014

main71200-WB004iDD1C,1D..BASE201508-201511

TINTED GRAY/BLACK,TRIM80

sub71200-WB015

main71200-WB005iDB7P..HI..CND201506-201511

BLUE/BLACK,TRIM70

sub71200-WB016

main71200-WB006iDB7P..HI..CND201506-201511

TINTED GRAY/BLACK,TRIM80

sub71200-WB017

main71200-WB007iDD1D..HI201508-201511

BLUE/BLACK,TRIM70

sub71200-WB020

main71200-WB008iDD1D..HI201508-201511

TINTED GRAY/BLACK,TRIM80

sub71200-WB021

main71200-WB012iDD1B;DB7P..PUE,USA;DB7P..BASE..CND201511-201601

BLUE/BLACK,TRIM70

sub71200-WB022

main71200-WB013iDD1B;DB7P..PUE,USA;DB7P..BASE..CND201511-201601

TINTED GRAY/BLACK,TRIM80

sub71200-WB023

main71200-WB014iDD1C,1D..BASE201511-201601

BLUE/BLACK,TRIM70

sub71200-WB024

main71200-WB015iDD1C,1D..BASE201511-201601

TINTED GRAY/BLACK,TRIM80

sub71200-WB025

main71200-WB018iDB7P..HI..CND201511-201601

BLUE/BLACK,TRIM70

sub71200-WB026

main71200-WB019iDB7P..HI..CND201511-201601

TINTED GRAY/BLACK,TRIM80

sub71200-WB027

main71200-WB020iDD1D..HI201511-201601

BLUE/BLACK,TRIM70

sub71200-WB028

main71200-WB021iDD1D..HI201511-201601

TINTED GRAY/BLACK,TRIM80

sub71200-WB029

main71200-WB022iDD1B;DB7P..B,C,E,F,G,J,K,L201601-201609

BLUE/BLACK,TRIM70

main71200-WB023iDD1B;DB7P..B,C,E,F,G,J,K,L201601-201609

TINTED GRAY/BLACK,TRIM80

sub71200-WB031

main71200-WB024iDD1C,1D..BASE201601-201609

BLUE/BLACK,TRIM70

sub71200-WB032

main71200-WB025iDD1C,1D..BASE201601-201609

TINTED GRAY/BLACK,TRIM80

sub71200-WB033

main71200-WB026iDB7P..HI..CND201601-201609

BLUE/BLACK,TRIM70

sub71200-WB034

main71200-WB027iDB7P..HI..CND201601-201609

TINTED GRAY/BLACK,TRIM80

sub71200-WB035

main71200-WB028iDD1D..HI201601-201609

BLUE/BLACK,TRIM70

main71200-WB029iDD1D..HI201601-201609

TINTED GRAY/BLACK,TRIM80

sub71200-WB037

main71200-WB030iDB7P,DD1B..D,E,F,G,J,K,L201609-201701

BLUE/BLACK,TRIM70

sub71200-WB038

main71200-WB031iDB7P,DD1B..D,E,F,G,J,K,L201609-201701

TINTED GRAY/BLACK,TRIM80

sub71200-WB039

main71200-WB032iDD1C,1D..BASE201609-201701

BLUE/BLACK,TRIM70

sub71200-WB040

main71200-WB033iDD1C,1D..BASE201609-201701

TINTED GRAY/BLACK,TRIM80

sub71200-WB041

main71200-WB034iDB7P..H201609-201701

BLUE/BLACK,TRIM70

sub71200-WB042

main71200-WB035iDB7P..H201609-201701

TINTED GRAY/BLACK,TRIM80

sub71200-WB043

main71200-WB036iDD1D..C201609-201701

BLUE/BLACK,TRIM70

sub71200-WB044

main71200-WB037iDD1D..C201609-201701

TINTED GRAY/BLACK,TRIM80

sub71200-WB045

main71200-WB038iDB7P,DD1B..D,E,F,G,J,K,L201701-201704

BLUE/BLACK,TRIM70

main71200-WB039iDB7P,DD1B..D,E,F,G,J,K,L201701-201704

TINTED GRAY/BLACK,TRIM80

sub71200-WB047

main71200-WB040iDD1C,1D..BASE201701-201704

BLUE/BLACK,TRIM70

main71200-WB041iDD1C,1D..BASE201701-201704

TINTED GRAY/BLACK,TRIM80

main71200-WB042iDB7P..H201701-201704

BLUE/BLACK,TRIM70

main71200-WB043iDB7P..H201701-201704

TINTED GRAY/BLACK,TRIM80

main71200-WB044iDD1D..C201701-201704

BLUE/BLACK,TRIM70

main71200-WB045iDD1D..C201701-201704

TINTED GRAY/BLACK,TRIM80

main71200-WB046iDM0T..A,C,D;DB7P,DD1B,DM0S..A,B,C,D,E,F,G,J,K,L201704-201709

BLUE/BLACK,TRIM70

sub71200-WB054

main71200-WB047iDM0T..A,C,D;DB7P,DD1B,DM0S..A,B,C,D,E,F,G,J,K,L201704-201709

TINTED GRAY/BLACK,TRIM80

sub71200-WB078

main71200-WB048iDD1C,1D,DM0V,0W..BASE201704-201711

BLUE/BLACK,TRIM70

main71200-WB049iDD1C,1D,DM0V,0W..BASE201704-201711

TINTED GRAY/BLACK,TRIM80

main71200-WB050iDB7P,DM0T..HI..CND201704-201709

BLUE/BLACK,TRIM70

main71200-WB051iDB7P,DM0T..HI..CND201704-201709

TINTED GRAY/BLACK,TRIM80

main71200-WB052iDD1D,DM0W..HI201704-201711

BLUE/BLACK,TRIM70

main71200-WB053iDD1D,DM0W..HI201704-201711

TINTED GRAY/BLACK,TRIM80

main71200-WB054iDM0S;DM0T..A,C,D201709-201711

BLUE/BLACK,TRIM70

main71200-WB055iDM0S;DM0T..A,C,D201709-201711

TINTED GRAY/BLACK,TRIM80

main71200-WB056iDM0T..B201709-201711

BLUE/BLACK,TRIM70

main71200-WB057iDM0T..B201709-201711

TINTED GRAY/BLACK,TRIM80

main71200-WB058iDM0S;DM0T..A,C,D201711-201808

BLUE/BLACK,TRIM70

sub71200-WB075

main71200-WB059iDM0S;DM0T..A,C,D201711-201808

TINTED GRAY/BLACK,TRIM80

main71200-WB060iDM0V,0W..BASE201711-201808

BLUE/BLACK,TRIM70

main71200-WB061iDM0V,0W..BASE201711-201808

TINTED GRAY/BLACK,TRIM80

main71200-WB062iDM0T..B201711-201808

BLUE/BLACK,TRIM70

main71200-WB063iDM0T..B201711-201808

TINTED GRAY/BLACK,TRIM80

main71200-WB064iDM0W..A201711-201808

BLUE/BLACK,TRIM70

main71200-WB065iDM0W..A201711-201808

TINTED GRAY/BLACK,TRIM80

main71200-WB066iDAEA1,DAEC1..HI..USA201808-201908

BLACK,TRIM30

main71200-WB067iDAEA1,DAEC1..HI..USA201808-201908

GRAY,TRIM40

main71200-WB074iDAEC1..BASE;DADW1,DAEA1,DAEB1,DAED1,DAEE1..A,B,C,D201808-201908

GRAY,TRIM20

main71200-WB075iDAEC1..BASE;DADW1,DAEA1,DAEB1,DAED1,DAEE1..A,B,C,D201808-201908

BLUE/BLACK,TRIM10

main71200-WB076iDDF5..G201808-201908

BLACK,TRIM20

main71200-WB077iDAEC1..F201808-201908

BLUE/BLACK,TRIM10

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-WB001iDD1C,1D,F8,F9,DM0V,0W201506-201908

main71512-WB002iDB7P,DDF5,DM0T..HI..CND201506-201908

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

main71537-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main71538-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1201506-201908

main71552-WB002iDD1C,1D,DM0V,0W201508-201808

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-WB002iDD1C,1D201508-201708

main71620-WB003iDB7P,DD1B201506-201704

sub71620-WB004

main71620-WB004iDB7P,DD1B,DM0S,0T201704-201709

main71620-WB005iDM0V,0W201708-201709

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T201506

main71640-WB002iDD1C,1D,F8,F9,DM0V,0W201508-201908

71703CPANEL SUB-ASSY, FRONT SEAT CUSHION

main71703-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201609

RH

main71703-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201609

LH

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main71812-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main71862-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main71873-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main71874-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

71910AHEADREST ASSY, FRONT SEAT

main71910-WB001iDB7P,DD1B201506-201601

BLACK,TRIM70,80

sub71910-WB002

main71910-WB002iDB7P,DD1B,DM0S,0T201601-201711

BLACK,TRIM70,80

sub71910-WB003

main71910-WB003iDM0#201711-201808

BLACK,TRIM70,80

main71910-WB003iDDF4;DDF5..A,B,D,E,F,G;DAEC1,DDF8,9..A,B,F201808

BLACK/BLUE,TRIM10

main71910-WB004iDDF5..A,B,D,E,F,G;DAEC1,DDF9..A,B,C,F;DADW1,DAEA1,DAED1,DAEE1,DDF4,8..BASE,ENTRY201808

GRAY,TRIM20

main71910-WB005iDAEA1,DAEC1,DDF5..HI..USA201808

BLACK,TRIM30

main71910-WB006iDAEA1,DAEC1,DDF5..HI..USA201808

GRAY,TRIM40

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-WB002iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main71930-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#201808

BLACK,TRIM10,30

main71930-WB004iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#201808

GRAY,TRIM20,40

71931SUPPORT, FRONT SEAT HEADREST

main71930-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main71930-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#201808

BLACK,TRIM10,30

main71930-WB003iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#201808

GRAY,TRIM20,40

72137ECOVER, SEAT TRACK, NO.1

main72137-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main72137-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

72137FCOVER, SEAT TRACK, NO.2

main72137-WB002iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main72137-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main72495-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main72526-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T201506

82711FCLAMP, WIRING HARNESS

main90118-WBA19iDB7P,DM0T..HI..CND201506-201908

8421

72463WB001SHAFT, REAR NO.1 SEAT CUSHION

main72463-WB001

90118WB532

main90118-WB532

90118WB703

main90118-WB703

90118WBA10

main90118-WBA10

90118WBA17

main90118-WBA17

90118WBA18

main90118-WBA18

90118WBA20

main90118-WBA20

90118WBA21

main90118-WBA21

90118WBA23

main90118-WBA23

90118WBA25

main90118-WBA25

90118WBA26

main90118-WBA26

90118WBA27

main90118-WBA27

90118WBA30

main90118-WBA30

90118WBA31

main90118-WBA31

90118WBA35

main90118-WBA35

90118WBA56

main90118-WBA56

90118WBB04

main90118-WBB04

43 parts on this diagram · 16 diagrams in section
