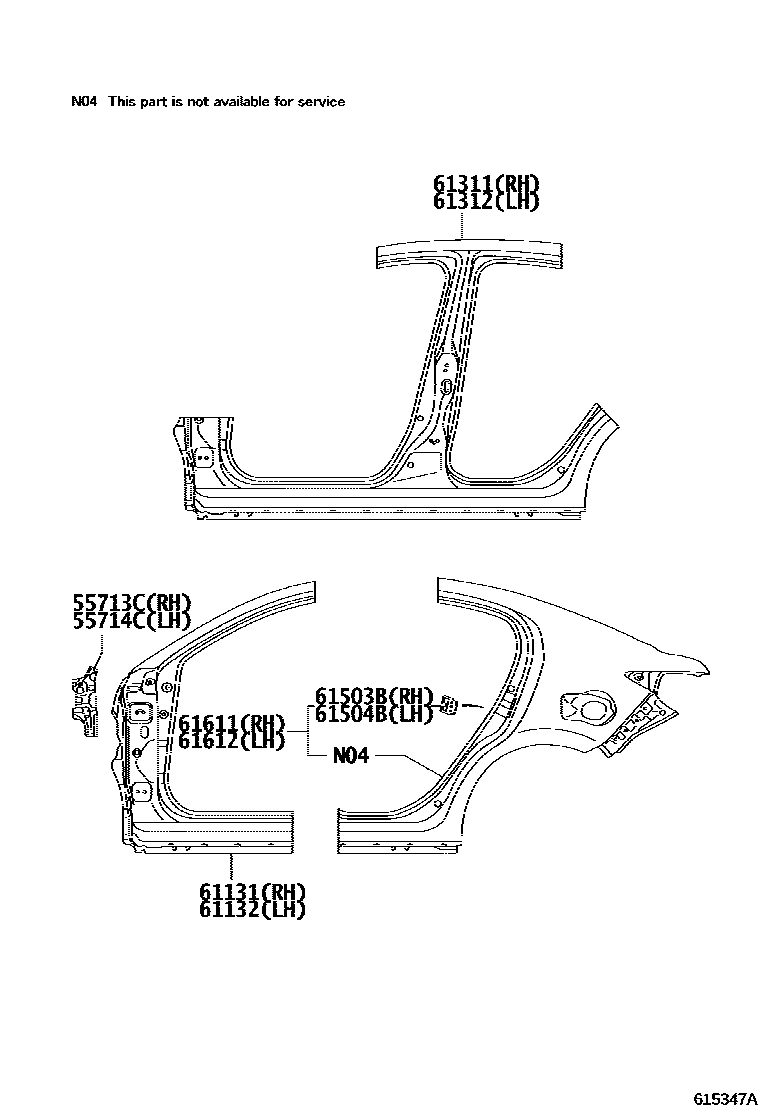

SIDE MEMBER

0001 1OUTER PANEL 0002 1 0003 1INNER PANEL 0004 1INNER PANEL 0005 1INNER PANEL 0006 1INNER PANEL 0007 1INNER PANEL

55713CPANEL, COWL TOP SIDE, RH

main61117-WB001iDB7P,DD1B,DM0S,0T201506-201808

55714CPANEL, COWL TOP SIDE, LH

main61118-WB001iDB7P,DD1B,DM0S,0T201506-201808

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61101-WB001iDB7P,DD1B,DM0S,0T201506-201808

main61101-WB002iDAEB1,DAEC1201908

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61102-WB001iDB7P,DD1B,DM0S,0T201506-201808

main61102-WB002iDAEB1,DAEC1201908

61311PILLAR, REAR RH

main61311-WB001iDB7P,DD1B,DM0S,0T201506-201808

main61311-WB002iDAEB1,DAEC1201908

61312PILLAR, REAR LH

main61312-WB001iDB7P,DD1B,DM0S,0T201506-201808

main61312-WB002iDAEB1,DAEC1201908

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61315-WB001iDB7P,DD1B,DM0S,0T201506-201808

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61315-WB001iDB7P,DD1B,DM0S,0T201506-201808

61611PANEL, QUARTER, RH

main61601-WB001iDB7P,DD1B201506-201508

WITHOUT(R-DOT LABEL)

main61601-WB002iDADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T201508

WITH(R-DOT LABEL)

main61601-WB003iDADW1,DAEA1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201508

WITHOUT(R-DOT LABEL)

main61601-WB004iDB7P,DD1B201506-201508

WITH(R-DOT LABEL)

sub61601-WB002

main61601-WB005iDAEB1,DAEC1201908

WITHOUT(R-DOT LABEL)

main61601-WB006iDAEB1,DAEC1201908

WITH(R-DOT LABEL)

61612PANEL, QUARTER, LH

main61602-WB001iDB7P,DD1B201506-201508

WITHOUT(R-DOT LABEL)

main61602-WB002iDADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T201508

WITH(R-DOT LABEL)

main61602-WB003iDADW1,DAEA1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201508

WITHOUT(R-DOT LABEL)

main61602-WB004iDB7P,DD1B201506-201508

WITH(R-DOT LABEL)

sub61602-WB002

main61602-WB005iDAEB1,DAEC1201908

WITHOUT(R-DOT LABEL)

main61602-WB006iDAEB1,DAEC1201908

WITH(R-DOT LABEL)

10 parts on this diagram · 7 diagrams in section
